Router Table Trolley Plans (Metric)

Regular price $25.00 NZD
Shipping calculated at checkout.

Build your own mobile router table trolley with this 34-page PDF guide, featuring step-by-step instructions and dimensions.

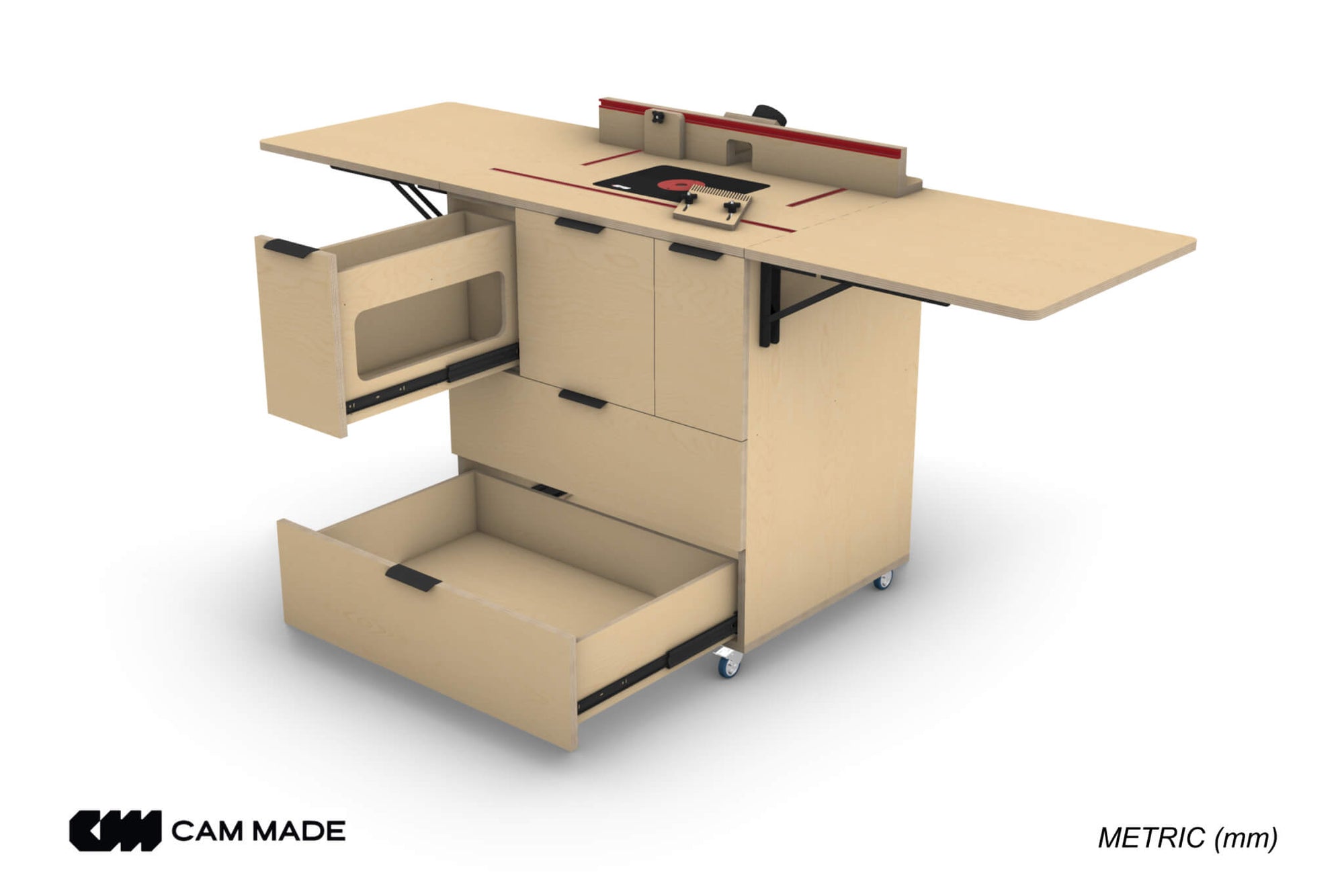

Designed for small workshops, this compact, rollable unit provides integrated router table functionality, organised storage, and a stable work surface.

Folding wings extend the work area to support longer timber runs when needed.

Includes CNC-ready DXF files, manual cut diagrams, and a 3D CAD model for accurate and repeatable construction.

  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    34-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled cut diagrams showing nested parts
  • Labelled DXF files for CNC machining (optional)
  • CAD model (.STEP format)

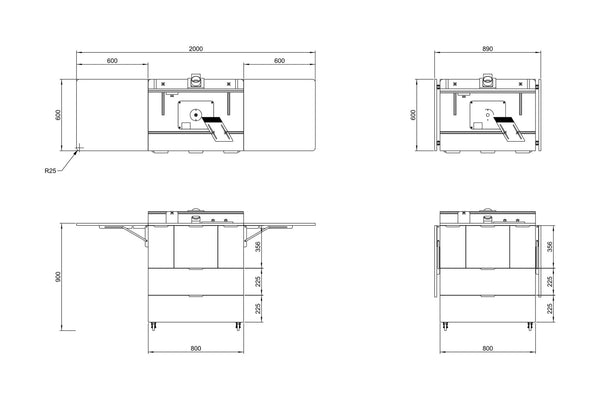

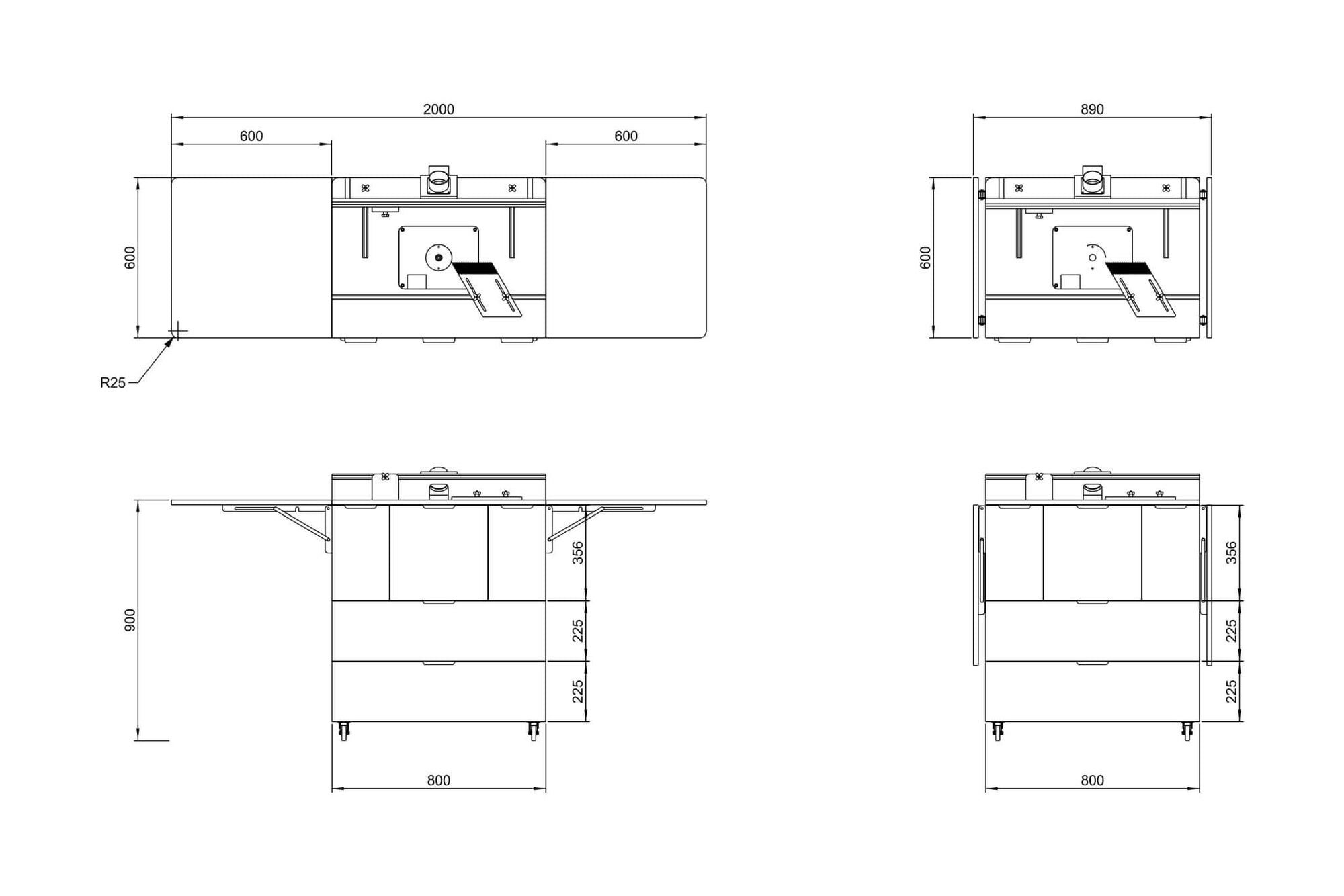

  • Dimensioned drawings for manual cutting
  • Complete hardware list
  • 34 pages in PDF in total

What's Required:
  • 2 x 18mm plywood sheets
  • 1 x 12mm plywood sheet
  • Sheet size = 1220mm x 2440mm
  • Basic hand tools such as drill and driver for assembling
  • Circular saw or table saw (for manual cutting option)
  • Hand router / plunge router
  • T-Track system for sliding fence
  • Kreg router table insert (or equivalent)

Additional Information:
  • All plans are in English and the units are in mm (metric)
  • Housing for router = 350mm W x 350m H x 560mm D
  • Designed to suit both CNC machining and manual cutting workflows
  • Folding wings provide additional support for longer workpieces
  • CAD model is in .STEP format however I can export most required formats upon request

IMPORTANT:
This is a digital download. Product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.
