Rear-Opening Campervan Conversion Plans V4

Regular price $35.00 NZD
Shipping calculated at checkout.

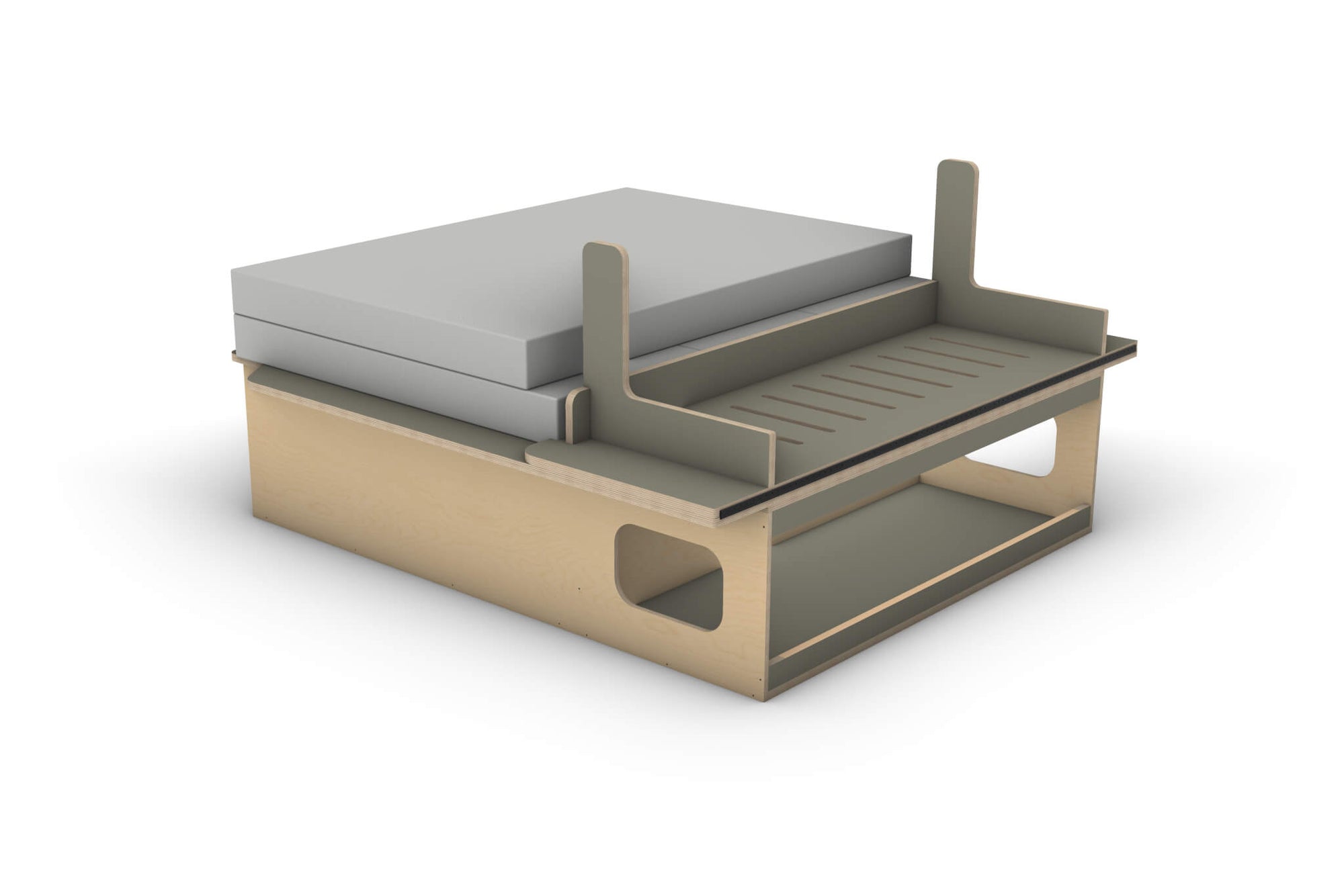

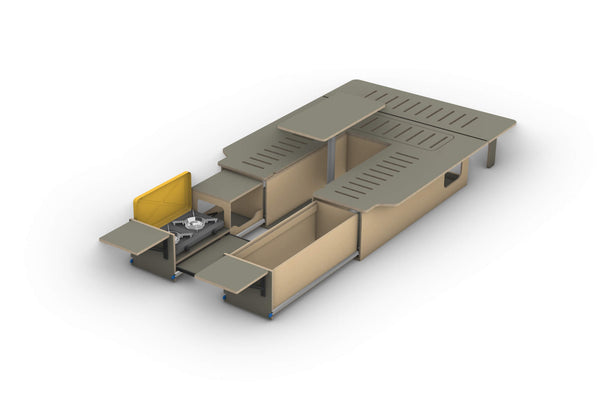

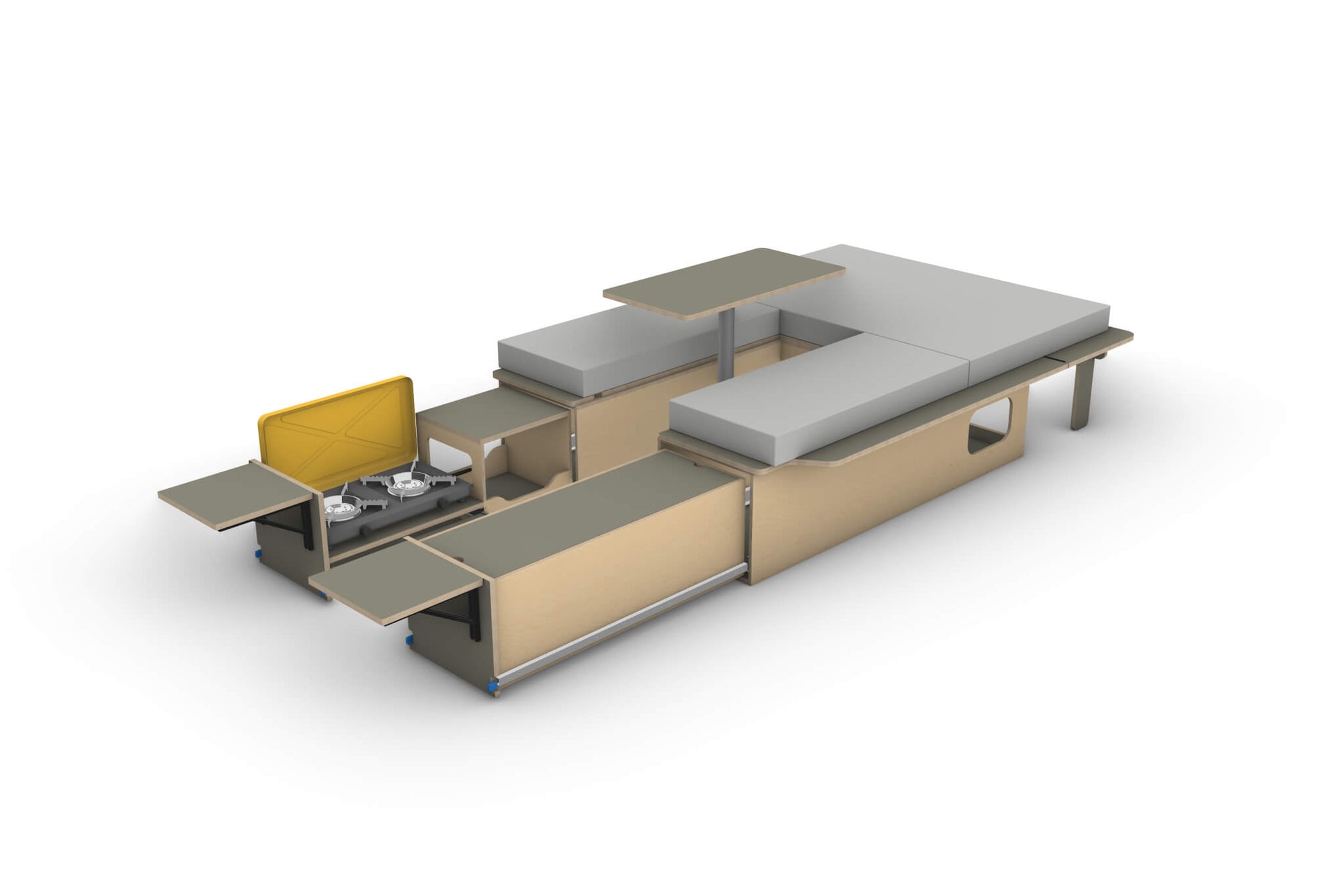

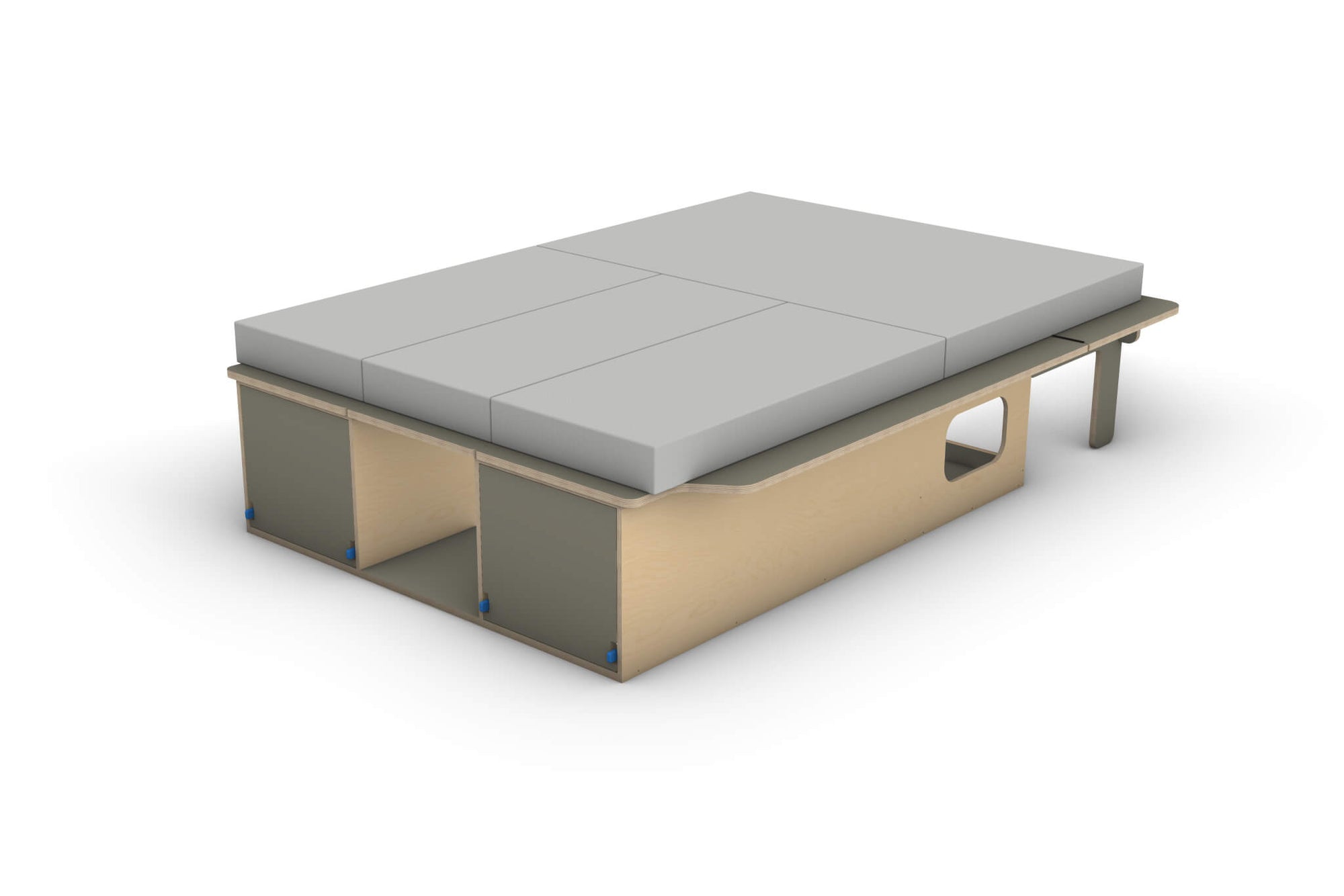

Transform your van into a practical, fully functional camper with this universal conversion plan package, designed with European medium vans in mind such as the VW T5/T6, Mercedes Vito, and Renault Trafic. The 46-page PDF includes step-by-step instructions, fully dimensioned drawings for both CNC and manual cutting, and a 3D CAD model for easy customisation. Key features include a fold-out bed, integrated storage, pull-out cooking drawer, and fold-up tables—ideal for DIY builders looking for a versatile, indoor/outdoor setup. Plans instantly downloadable after purchase. For alternative configurations, check out: Universal Camper Van Conversion Plans V1 Universal Camper Van Conversion Plans V2… Read more
  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    40-Page PDF

What's Included:
  • Dimensioned parts for manual cutting
  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 46 pages in PDF in total
  • 3D model included for making modifications

What's Required:
  • 2 x 12mm Birch Plywood sheets required
  • 3 x 18mm Birch Plywood or HPL Ply required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)

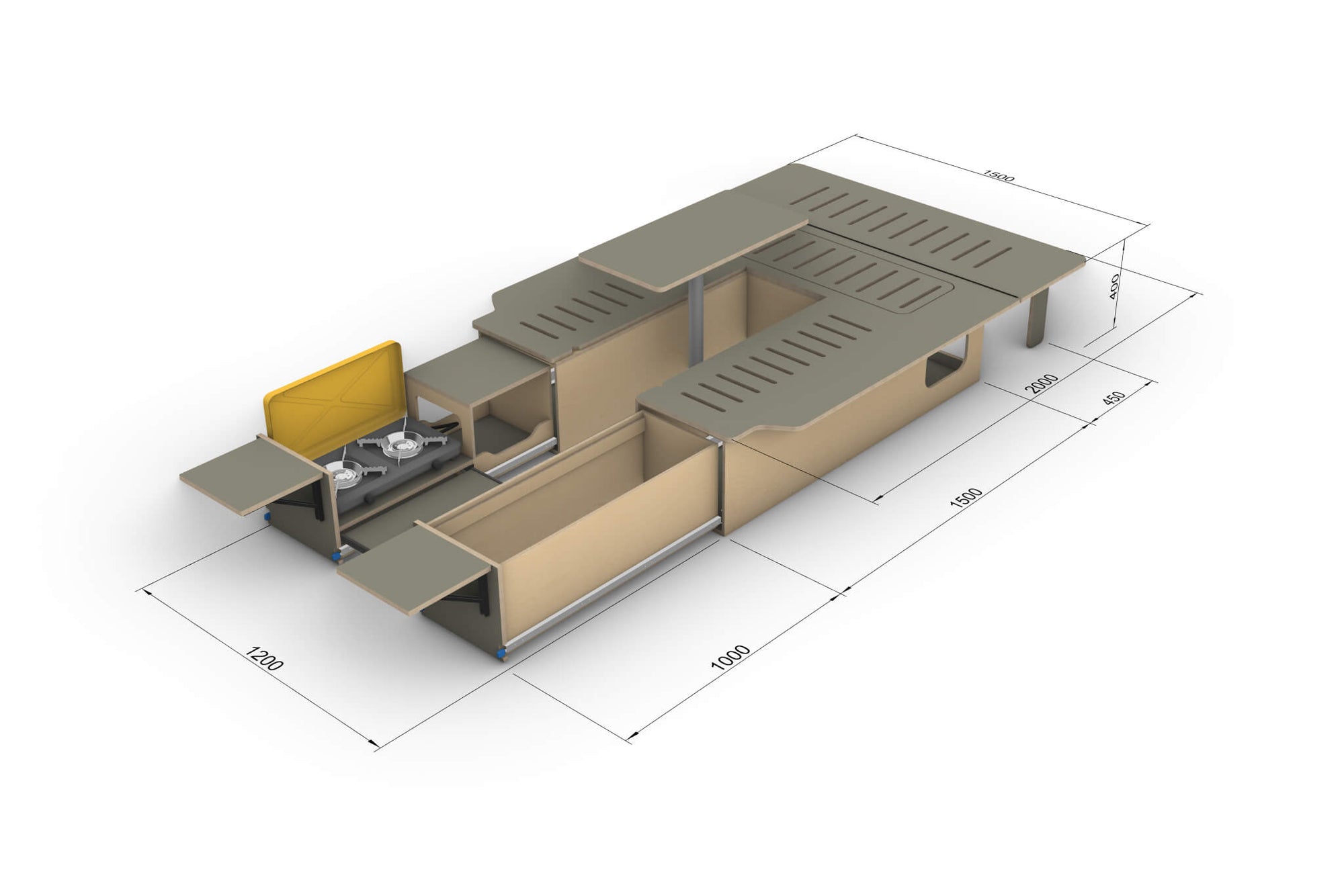

  • Refer to image on listing for overall dimensions
  • Drawer runner extension = 1000mm
  • Plywood sheet size = 1220mm x 2440mm
  • CAD model is in STEP. format however I can export most required formats upon request

IMPORTANT:

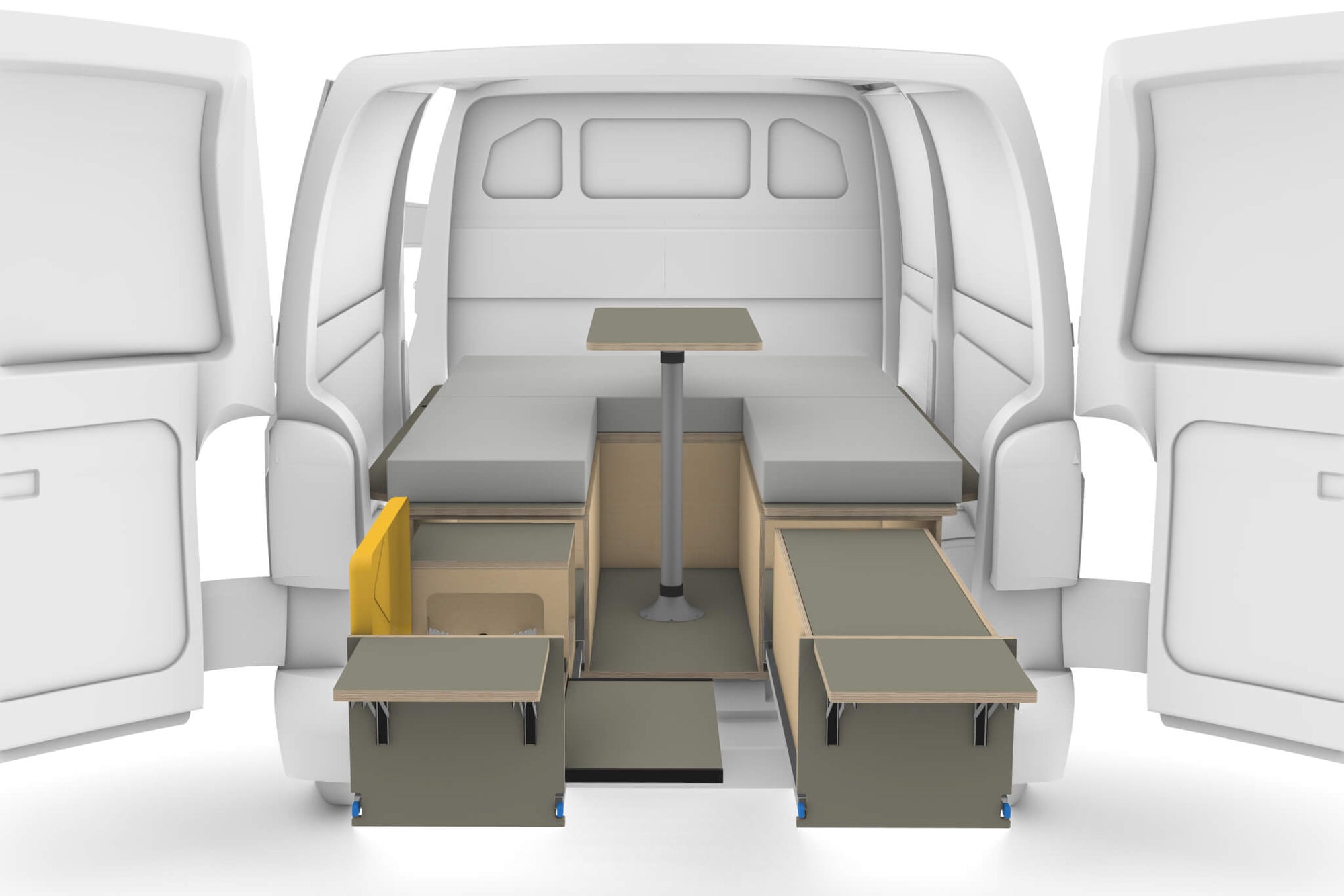

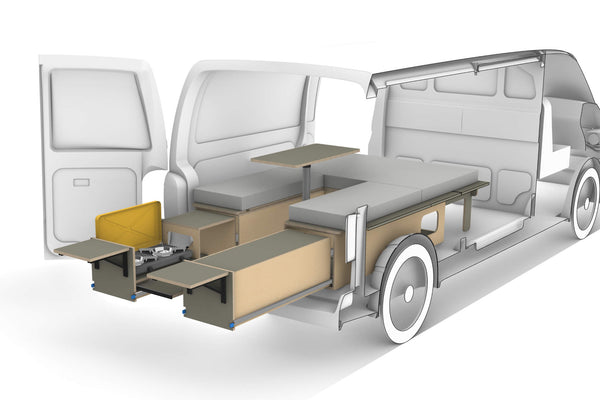

This is a digital download. The product shown is a rendering not a physical product.

Disclaimer:
This product is not affiliated with, endorsed by, or associated with Volkswagen, Mercedes-Benz, Renault, or any other vehicle manufacturer. All model names are used for reference only to indicate compatibility.

All digital plans provided by CamMade Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
