Portable Camp Kitchen Plans (Inches)

Regular price $25.00 NZD
Shipping calculated at checkout.

Build your own portable camping kitchen with this detailed PDF guide, featuring step-by-step instructions, diagrams, and optional CNC files.

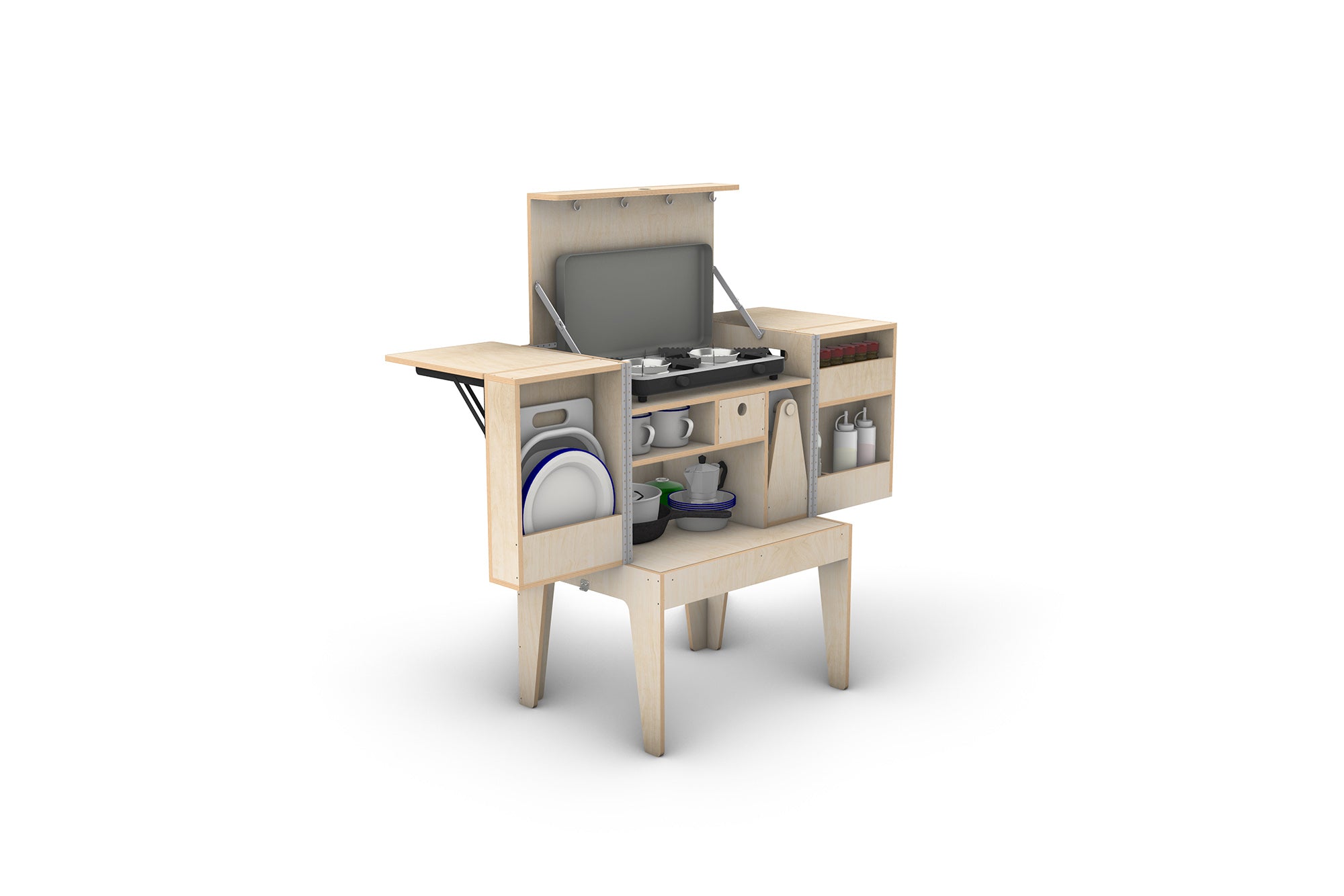

Designed for convenience and functionality, the compact unit includes storage, folding benches, and a caddy, all built from 1.5 sheets of 1/2" plywood.

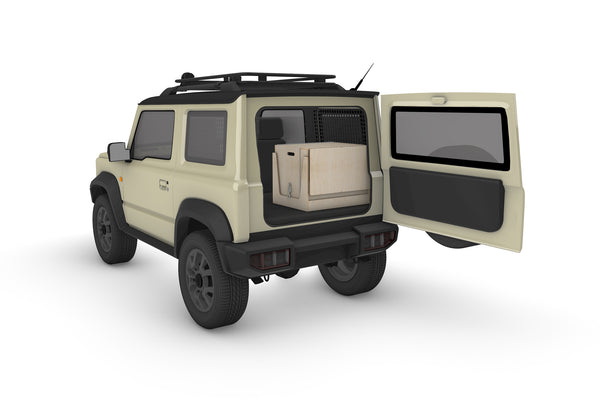

It's easy to transport, fits in most car boots, and accommodates a two-burner gas cooker for outdoor cooking on the go.

Plans instantly downloadable after purchase.

This set of plans is available in millimetres.

  • Skill Level:
    • Beginner
  • Units:

    • Inches (in)
  • Pages:

    37-Page PDF

What's Included:

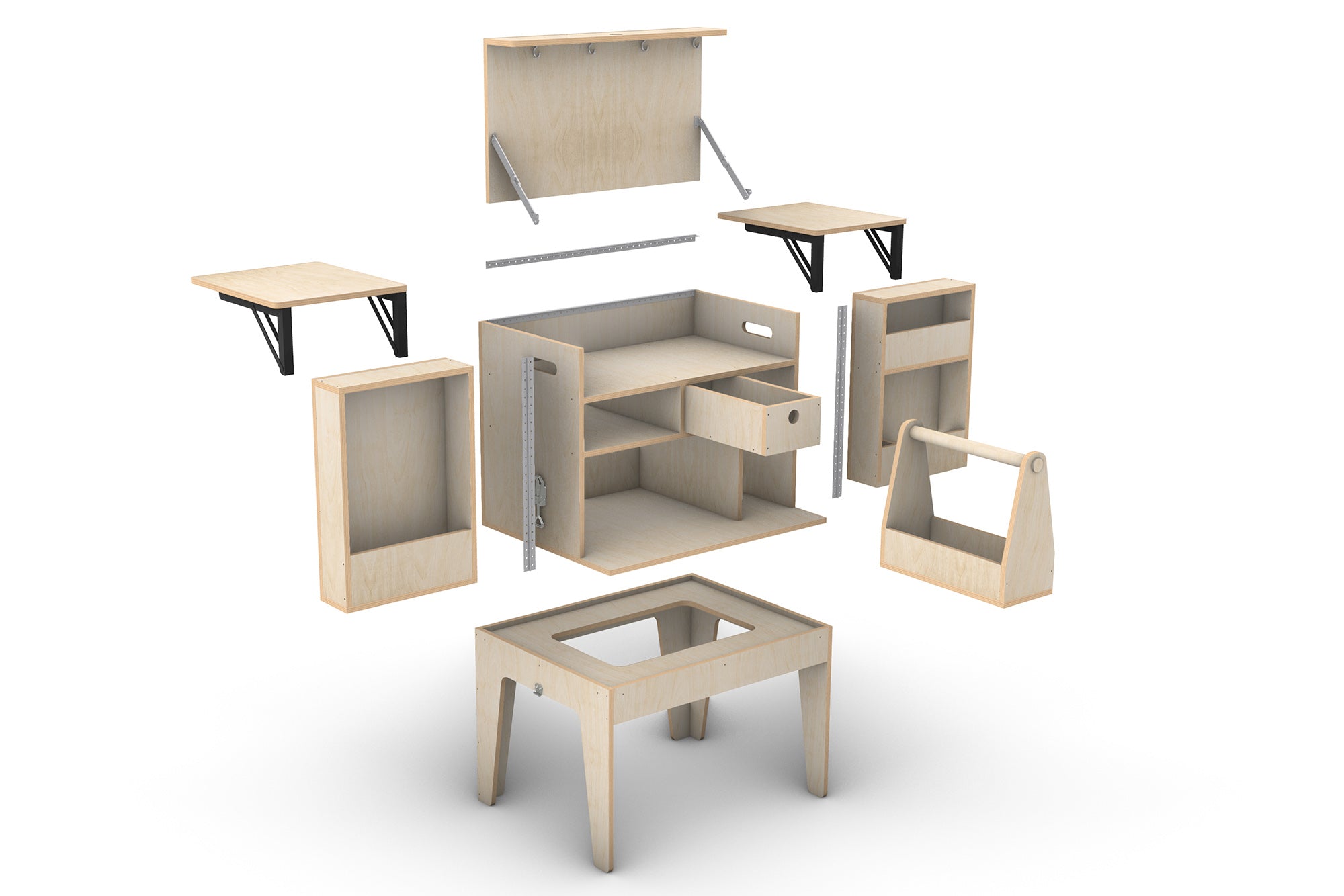

  • Clear and concise assembly drawings
  • Labelled cut diagram showing nested parts
  • Labelled DXF files for CNC machining (optional)

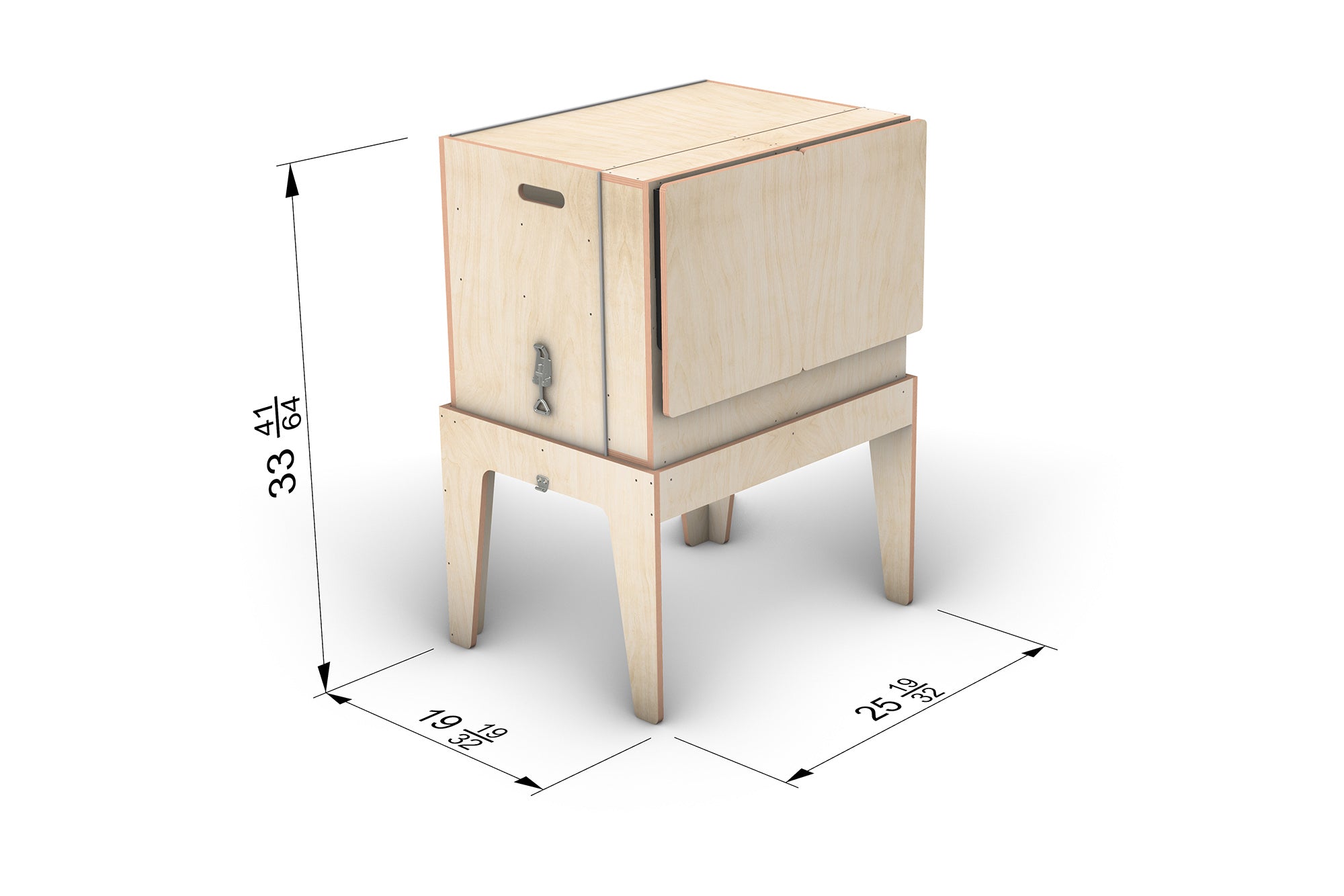

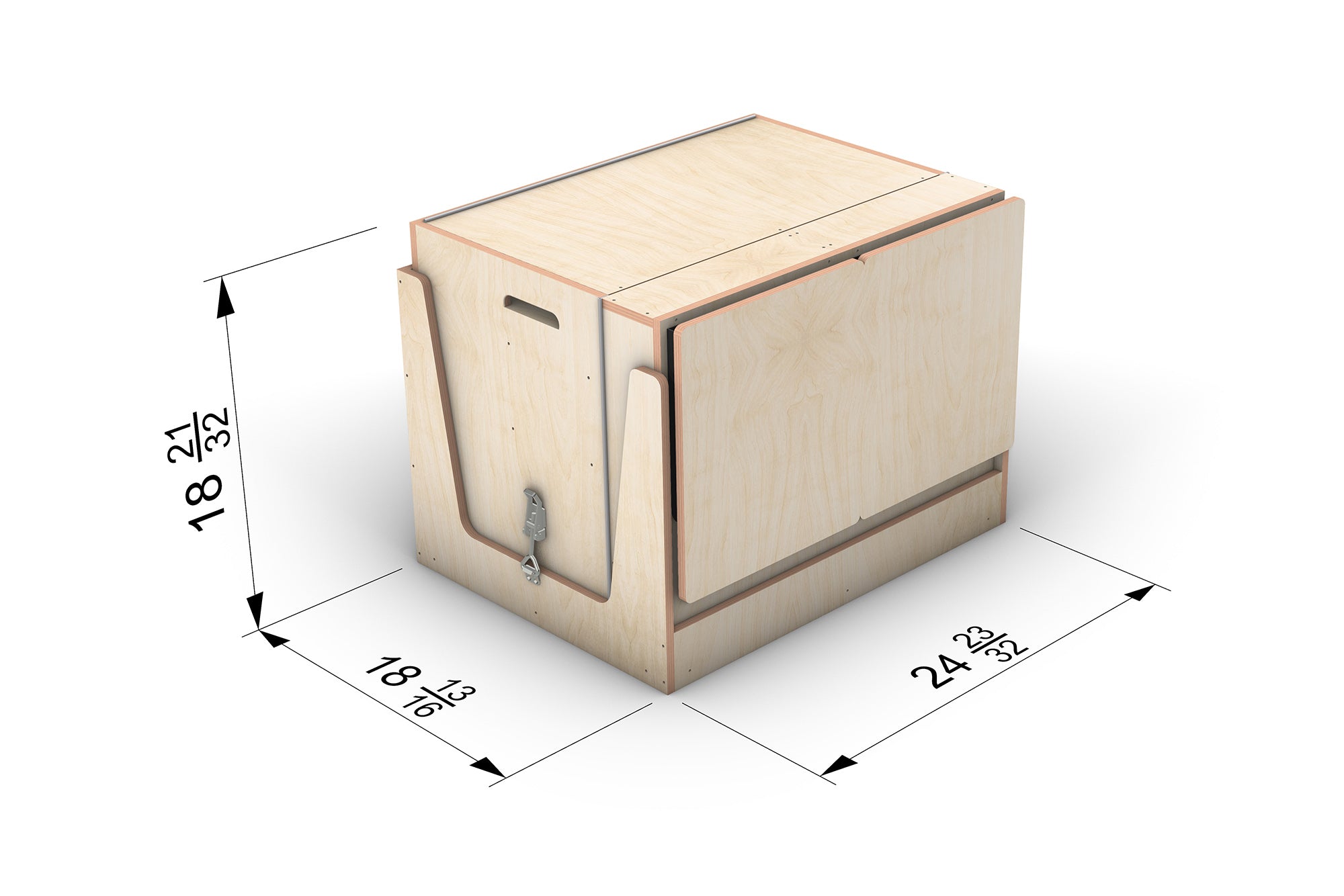

  • Dimensioned drawings
  • Overview of Hardware required
  • 37 pages in PDF in total

What's Required:
  • 1.5  x ½” Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Circular saw and jig saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in inches (imperial)
  • The size of the cavity for the gas cooker = 22, 2/3 " wide x 13, 1/2" deep x 3, 1/2" high
  • Approx. weight (materials only) = 35 POUNDS
  • Construction = 1/2" Plywood x 1.5 sheets required
  • Plywood sheet size = 4 x 8 FT
  • CAD model is in STEP. format however I can export most required formats upon request

Important:

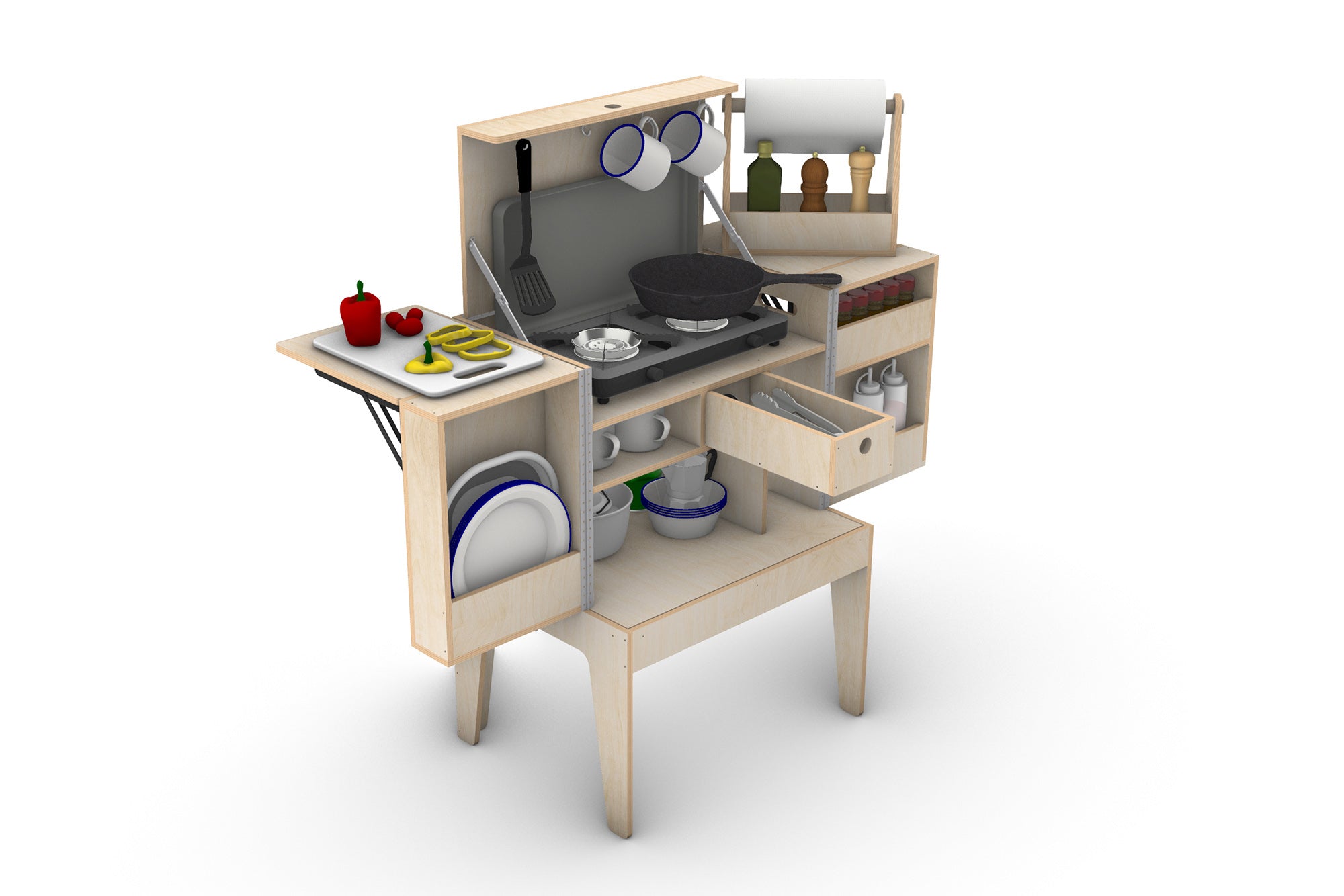

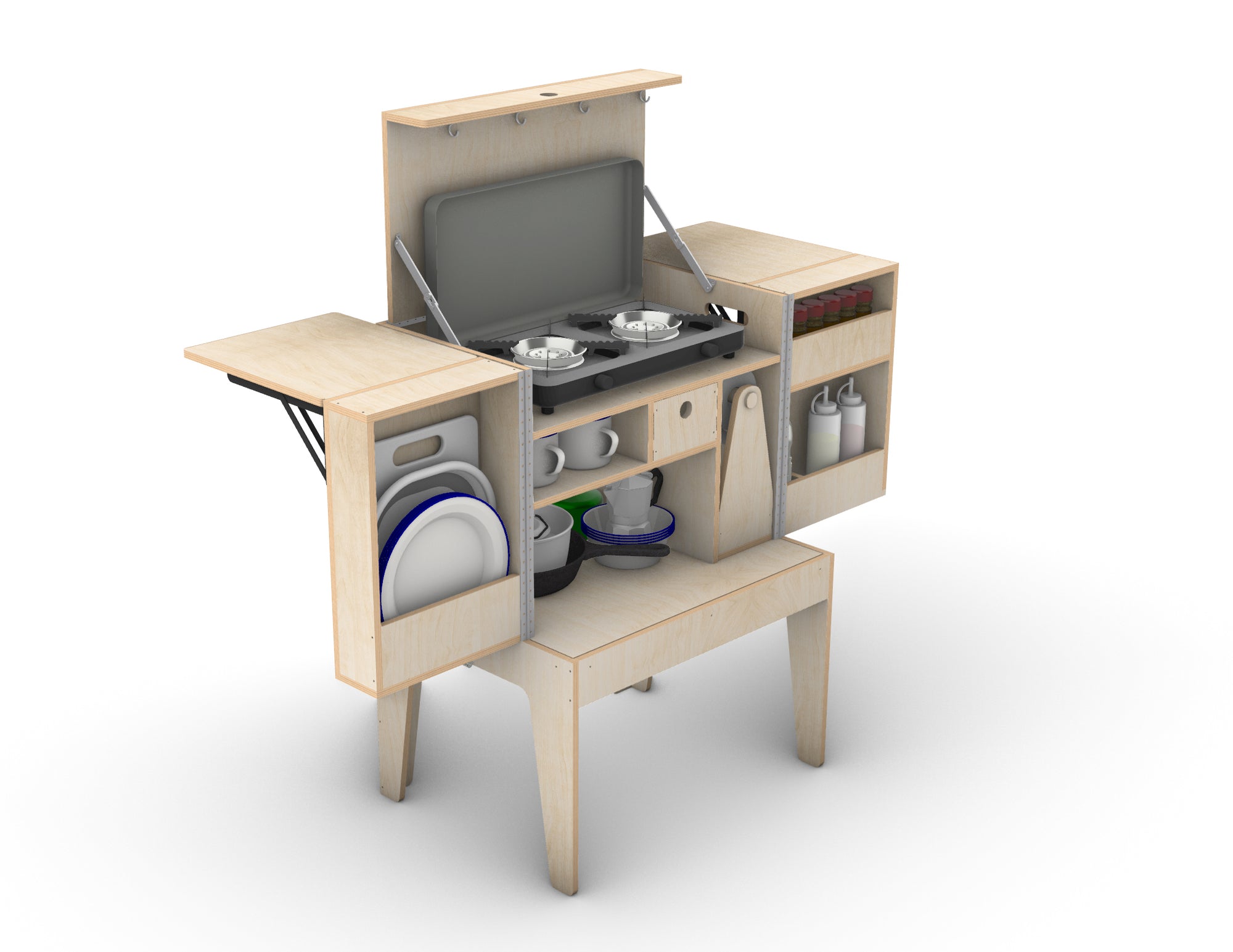

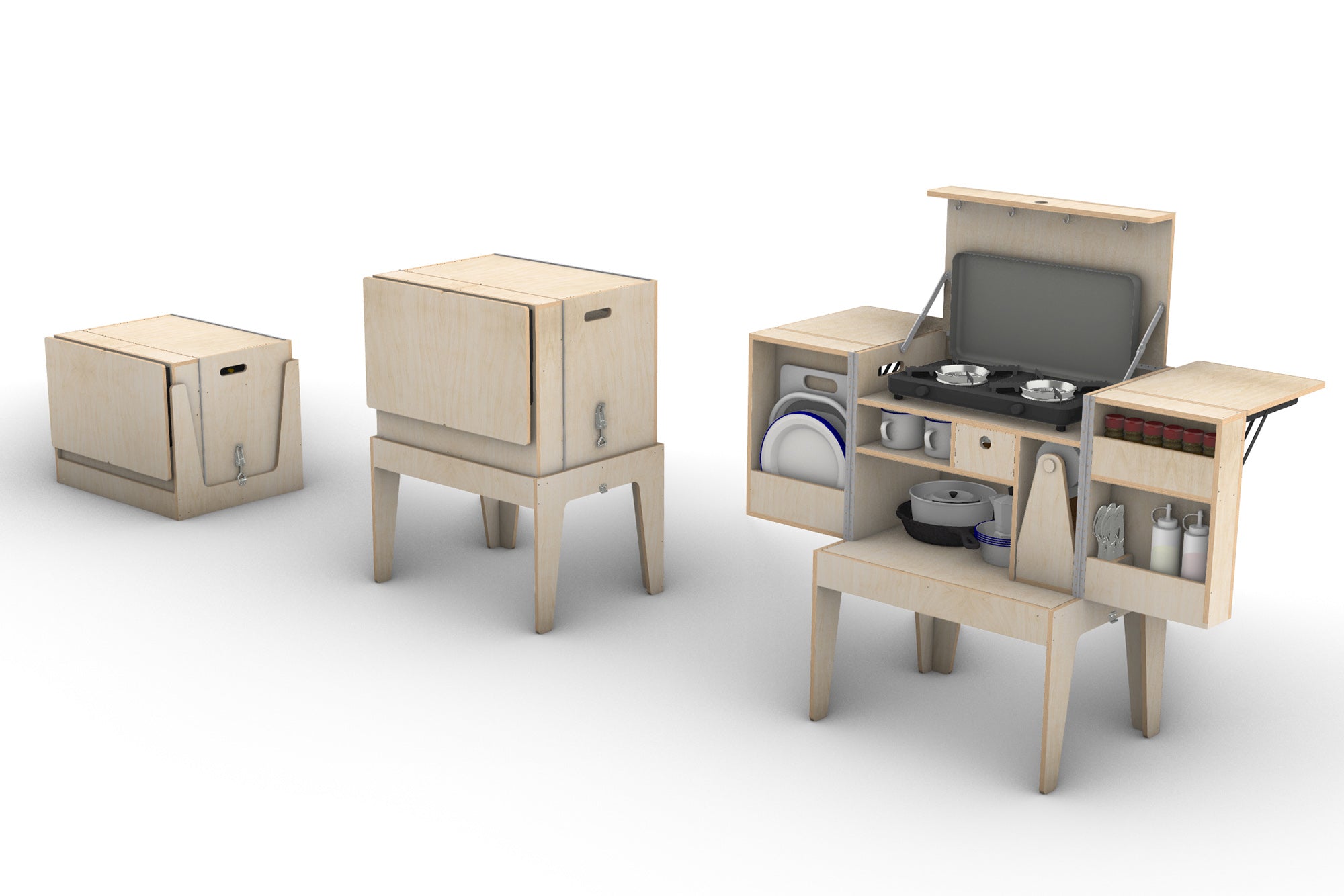

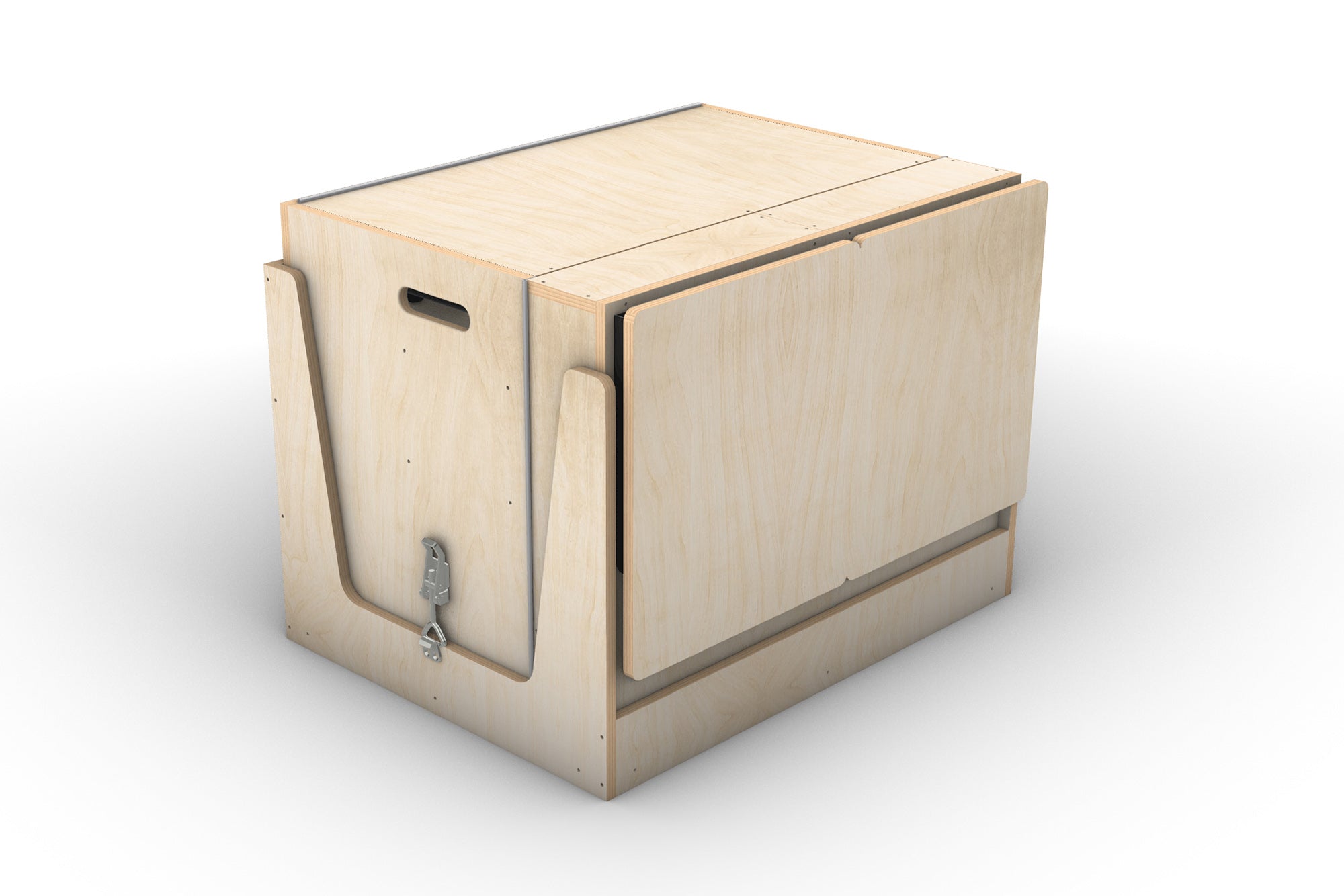

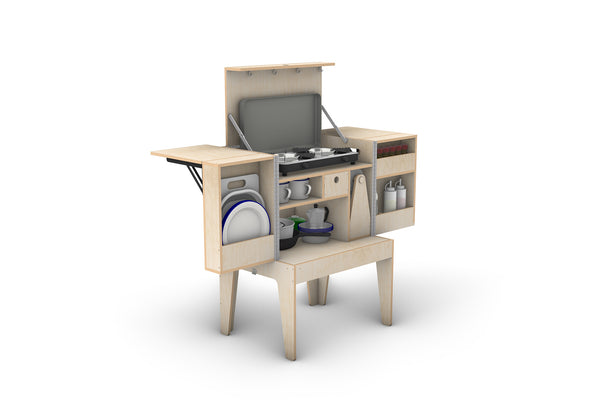

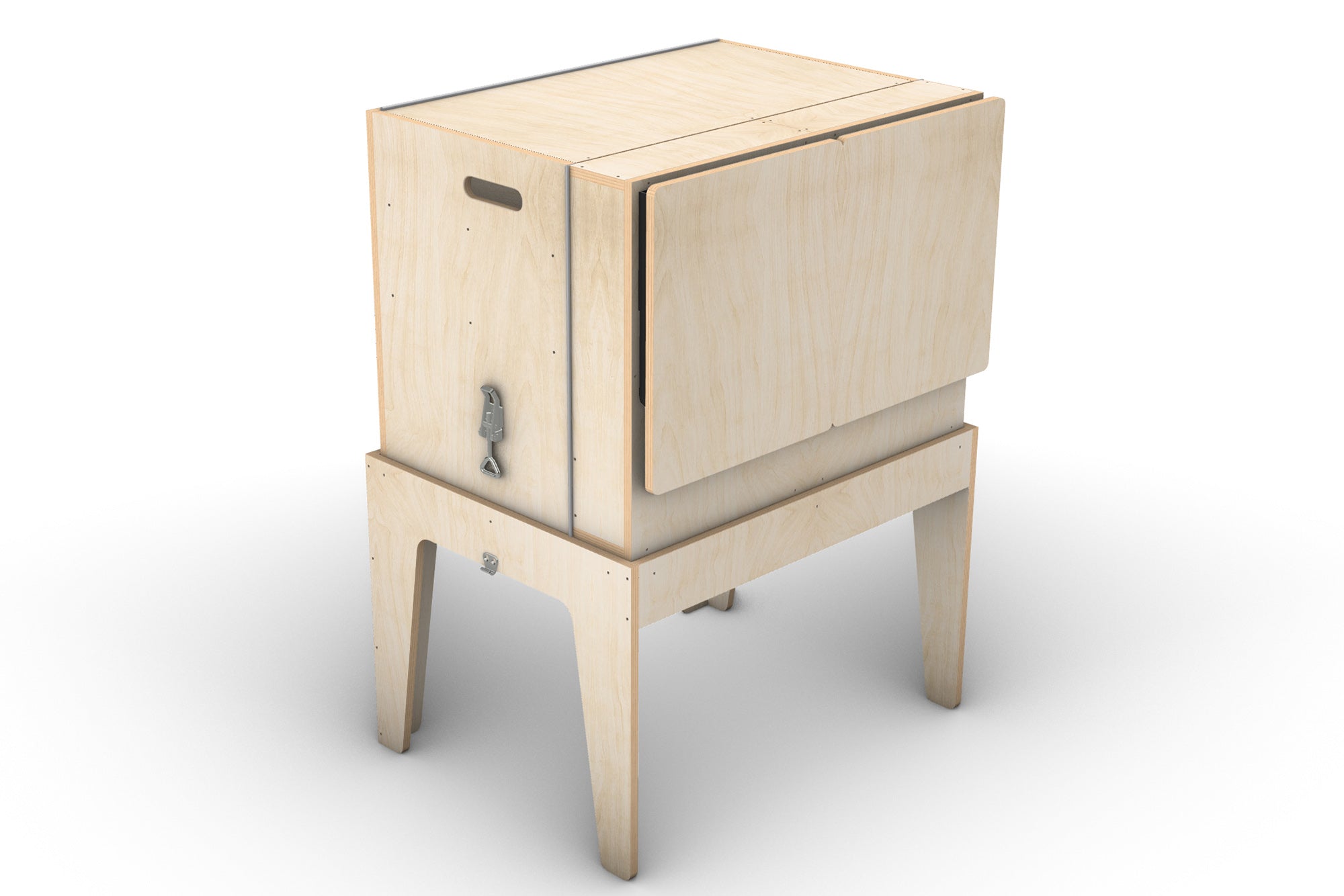

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
