Fiat Ducato L3H2 Camper Conversion Plans (RHD)

Regular price $250.00 NZD
Shipping calculated at checkout.

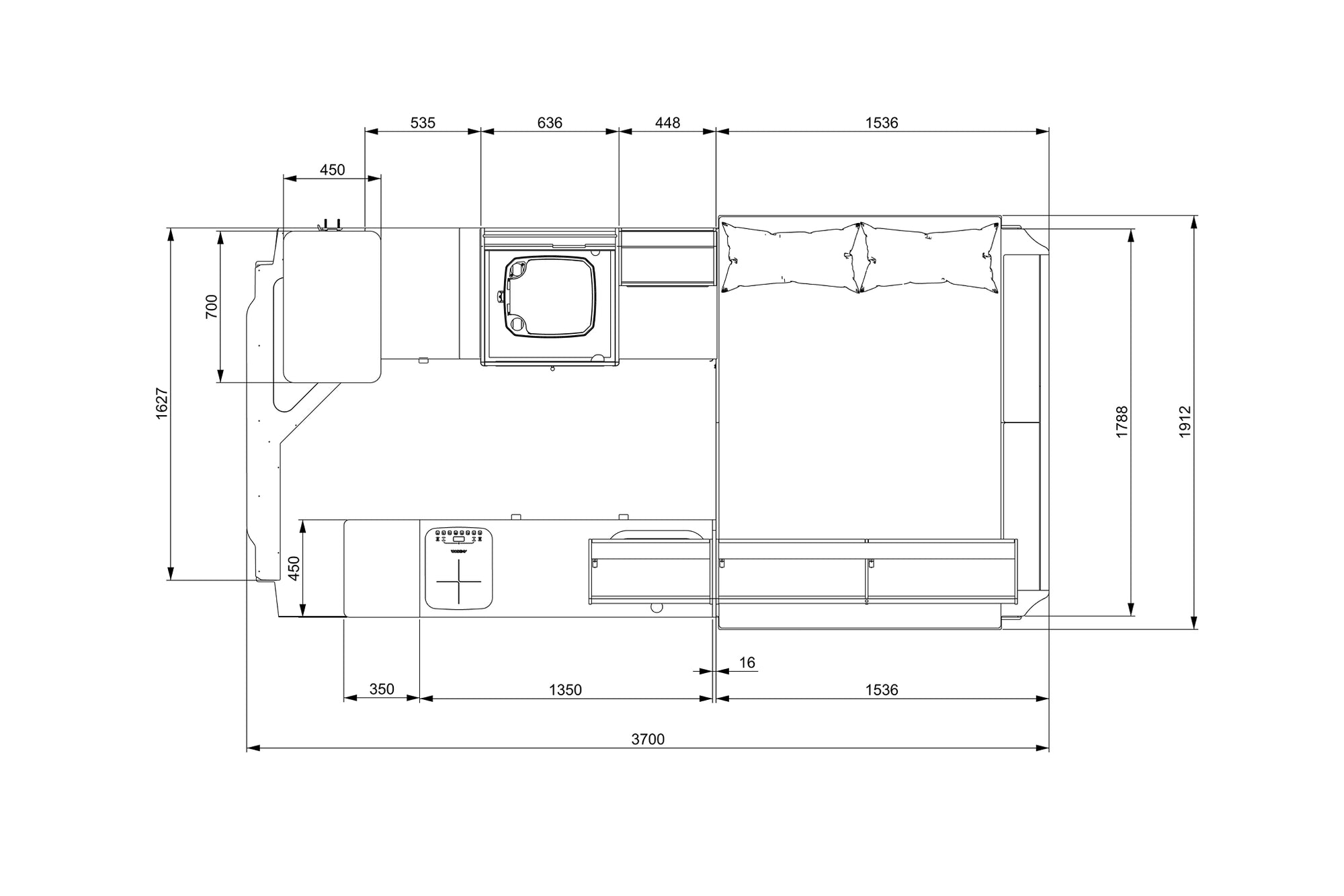

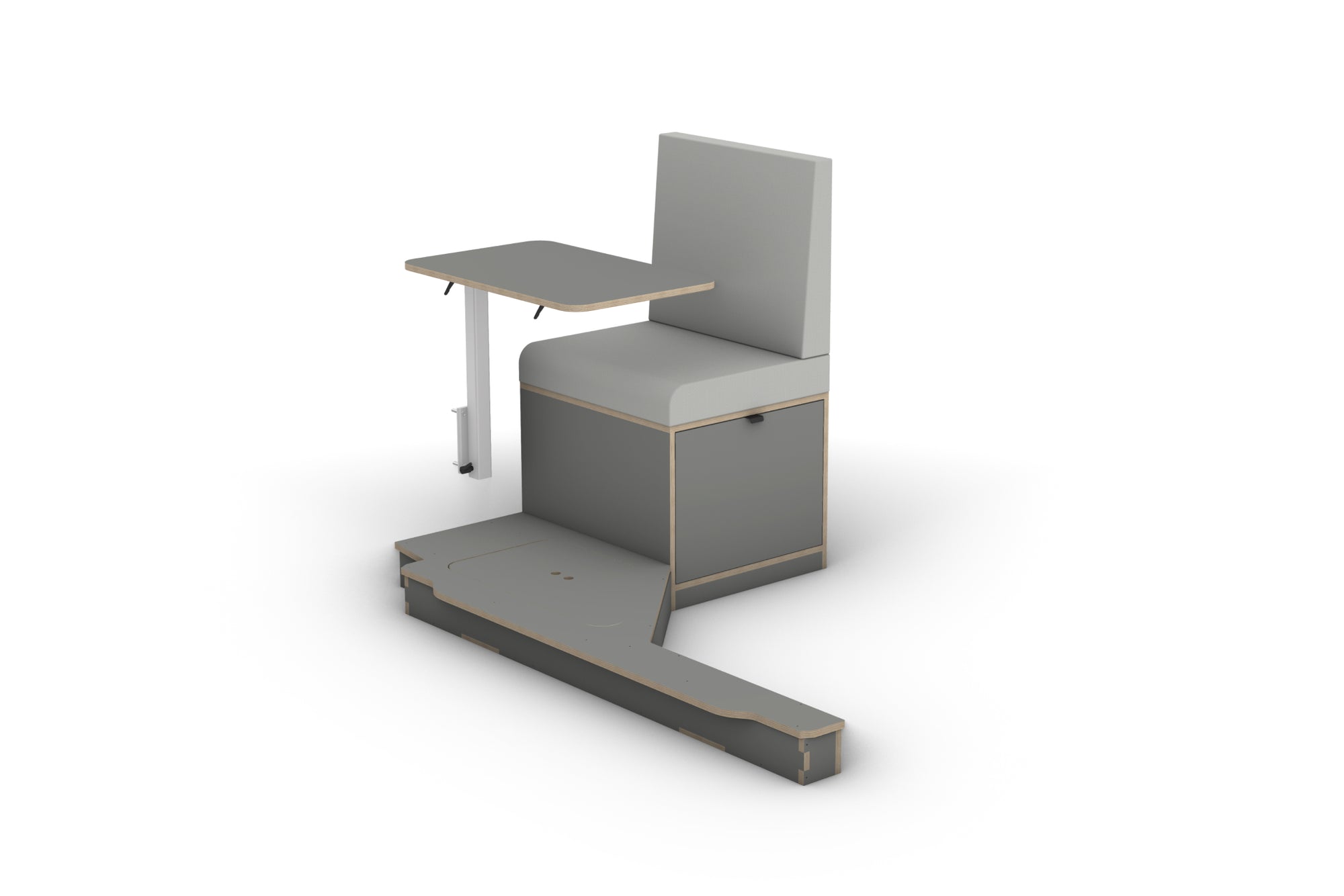

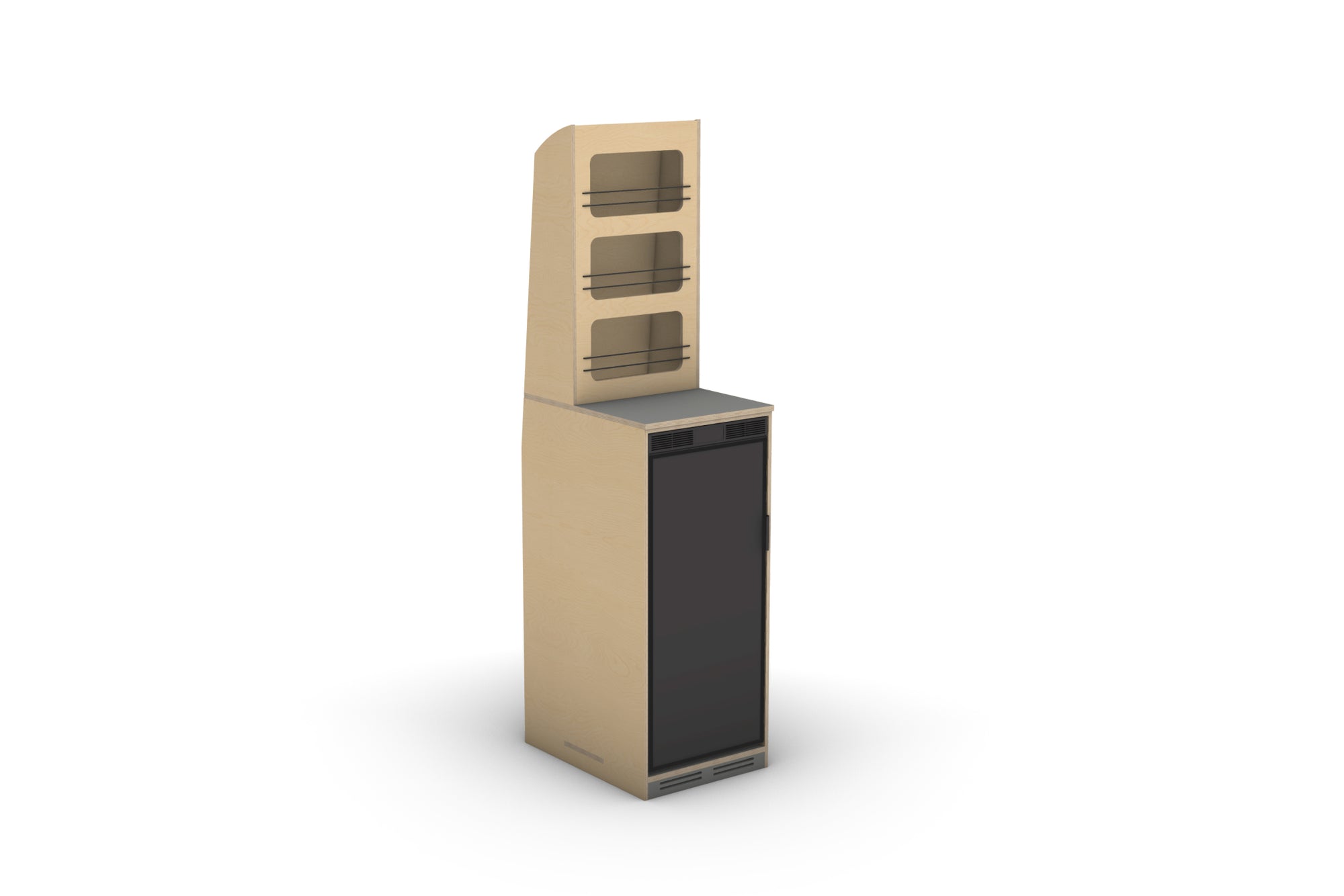

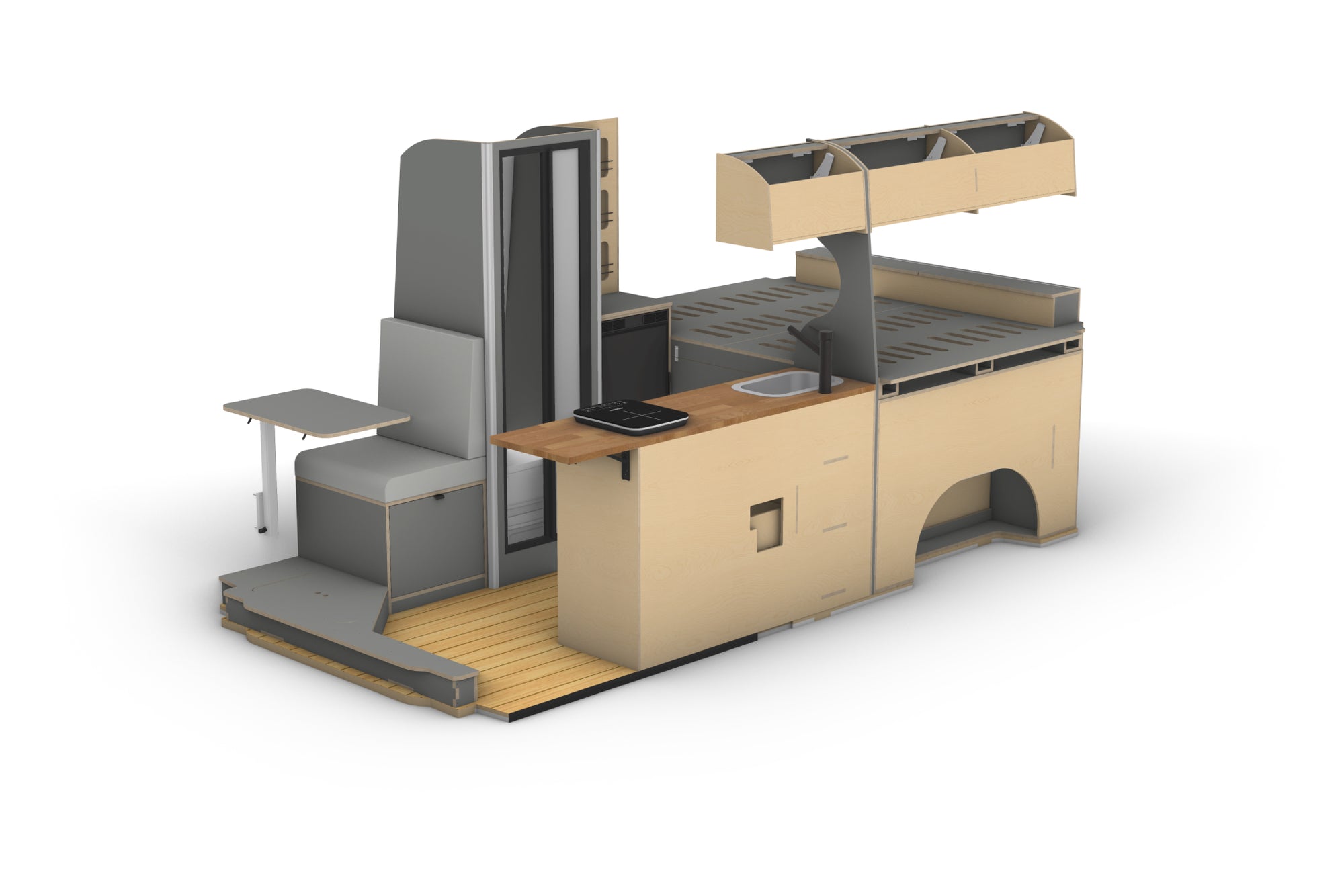

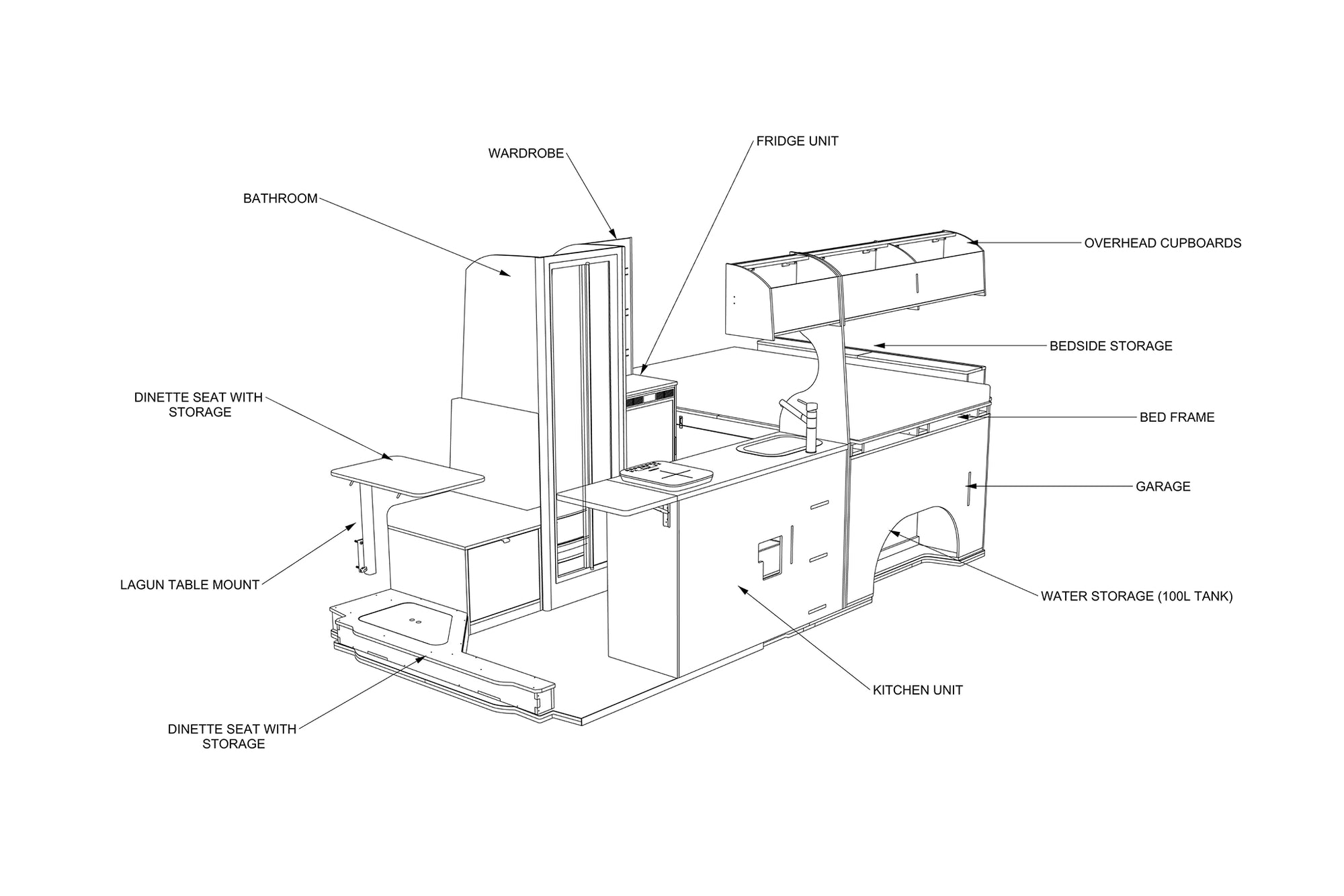

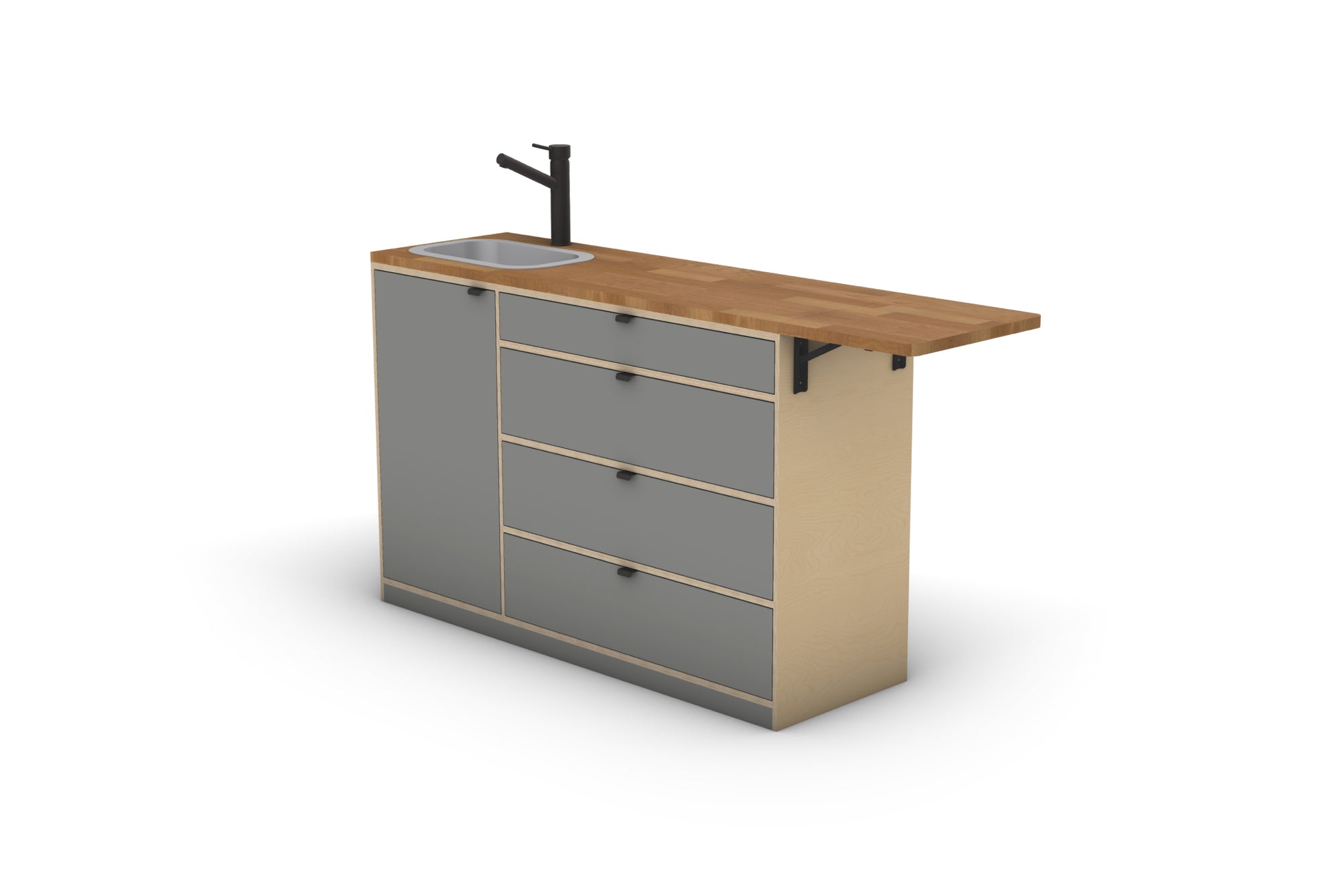

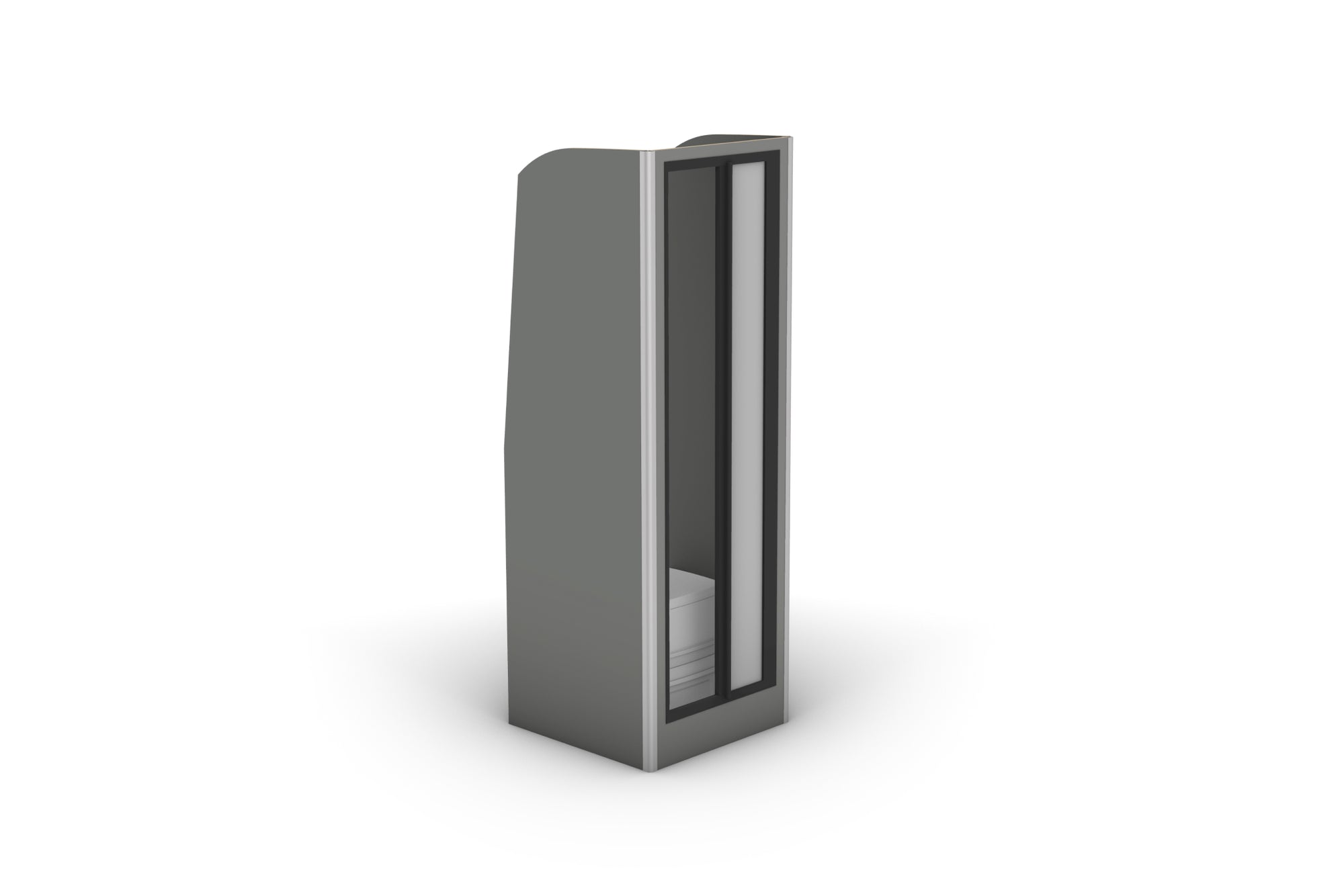

Convert your Fiat Ducato L3H2 (and equivalent platforms including the Peugeot Boxer, Citroën Relay/Jumper, and Ram ProMaster 159" Extended) into a fully featured campervan with these detailed DIY plans and CNC-ready files. Designed specifically for the long wheelbase high roof platform, this layout maximises storage, functionality, and comfortable separation between living and utility zones. The fit-out includes a fixed rear bed with large garage storage underneath, bedside storage, dedicated fridge unit positioned below the wardrobe, enclosed bathroom, full kitchen unit with sink, single dinette seat with integrated storage and Lagun table mount, overhead cupboards throughout, and dedicated 100L water tank… Read more
  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    83-Page PDF

What's Included:

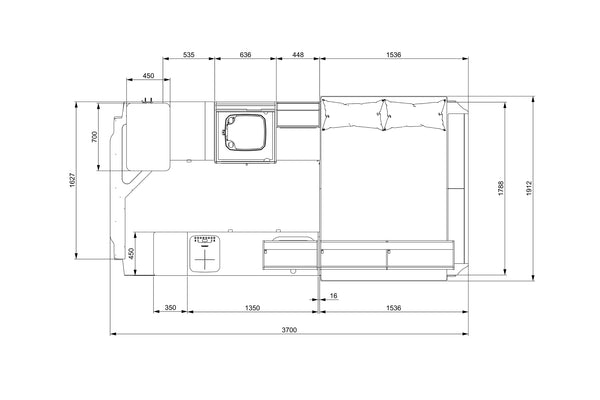

  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining
  • CNC overview PDFs

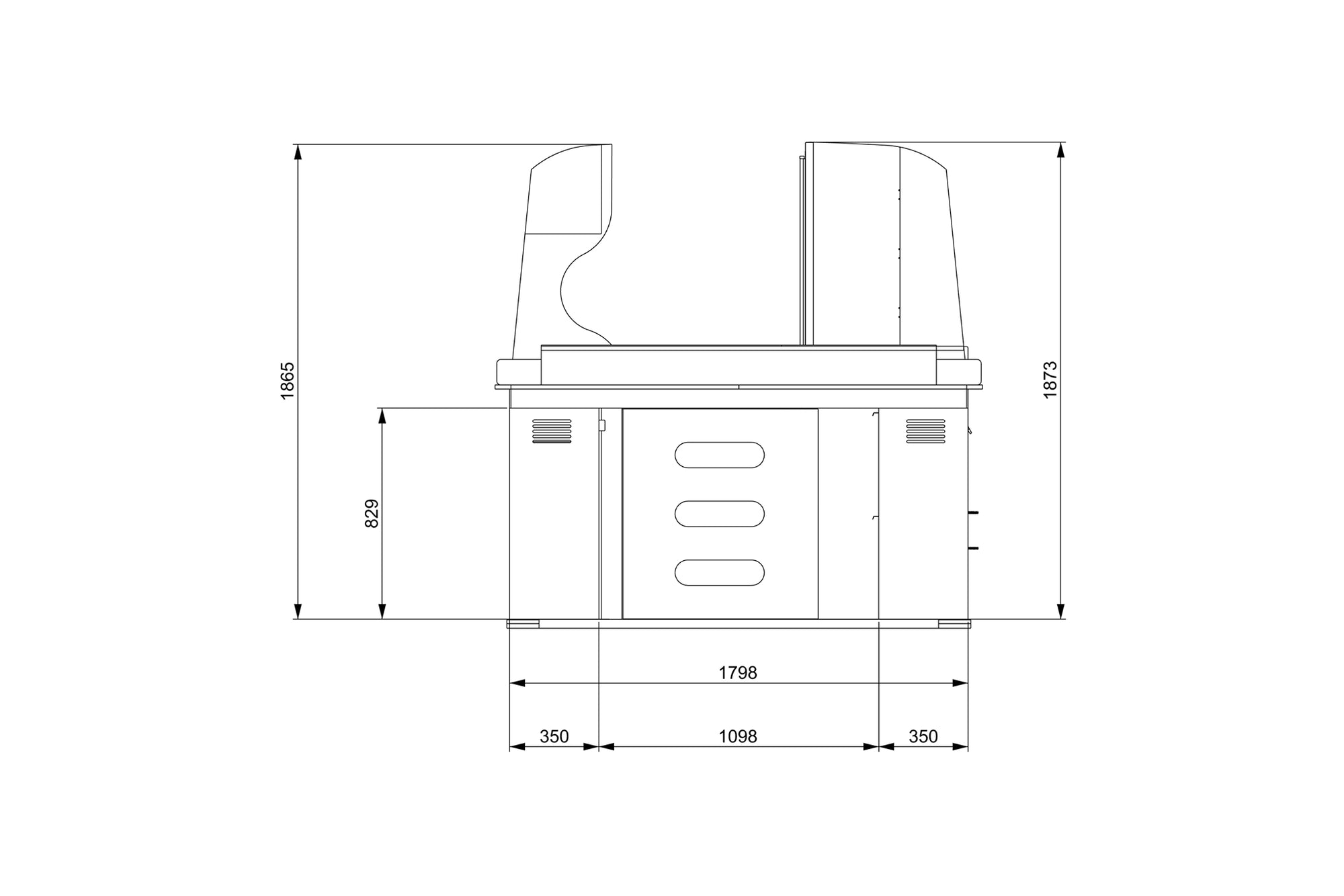

  • Dimensioned drawings
  • 3D CAD Model (.STEP Format)
  • Overview of Hardware, Materials and Appliances required (Spreadsheet)

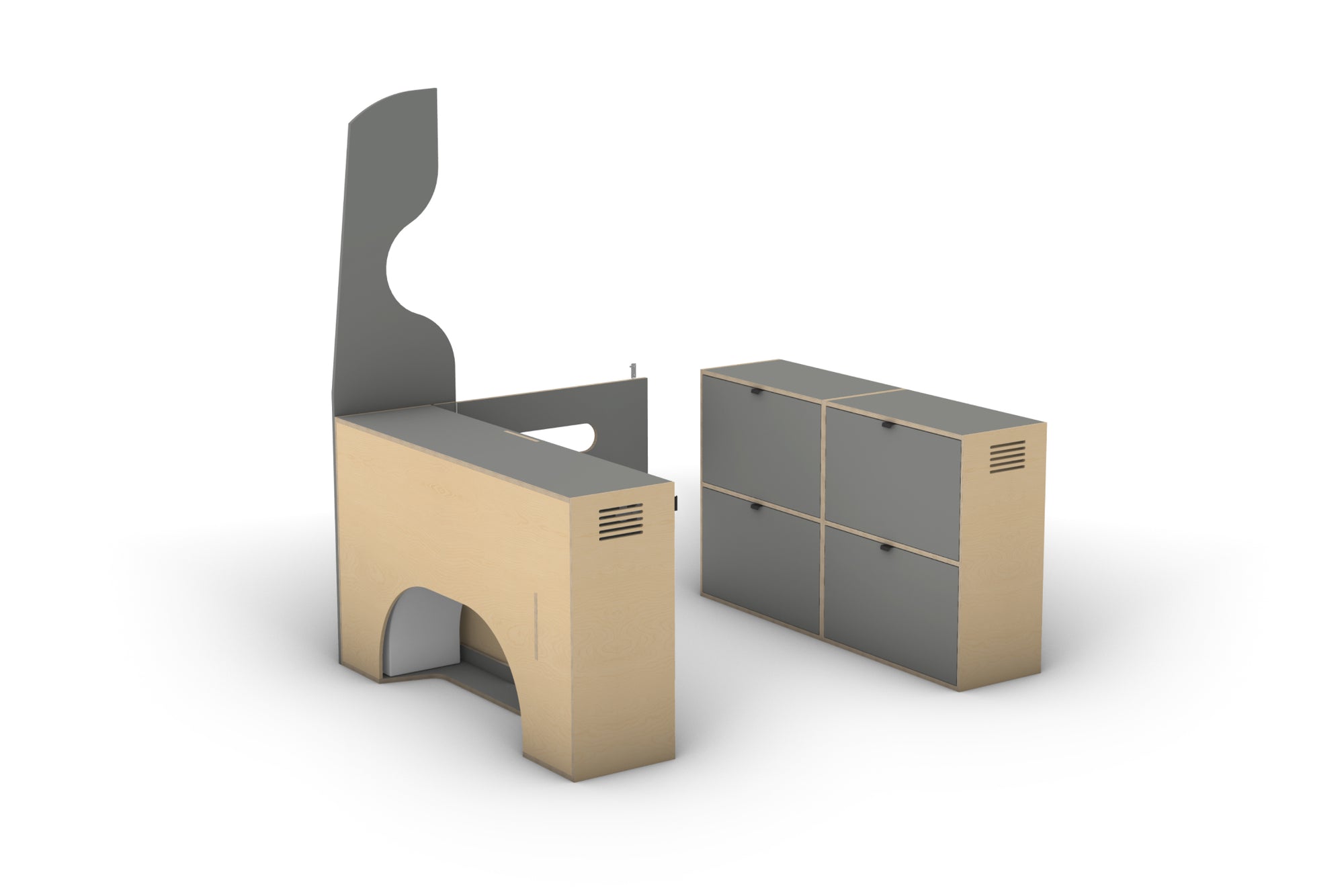

  • Cabinetry assembly drawings = 52 pages in PDF in total
  • Floor & Wall assembly drawings = 31 pages in PDF in total

What's Required:
  • Access to a CNC Router
  • Basic hand tools such as drill and driver for assembling
  • Rivnut tool for securing ply framing to bodywork
  • Pin gun / finishing nailer for assembling cabinetry
  • Jig saw and multitool (some scribing may be necessary)

Additional Information:
  • All plans are presented in English with measurements in millimeters (metric).
  • All sheet sizes are 1220mm x 2440mm (4’ x 8’ Ft)
  • Cabinetry constructed from 6 sheets of 12mm (½”) birch plywood and 9 sheets of 16mm (5/8”) HPL plywood

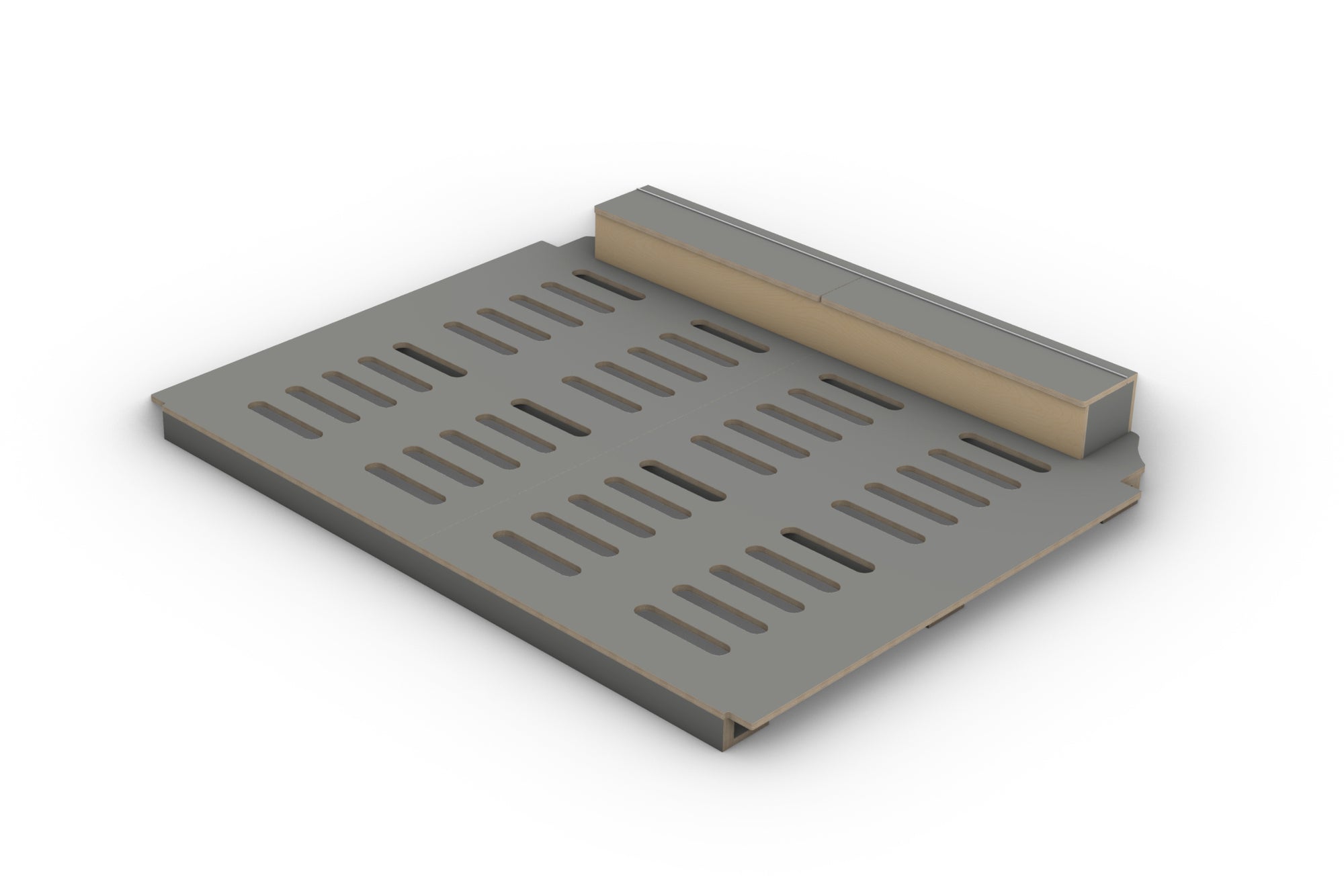

  • Floor constructed from 19mm (3/4”) thick Polyiso with Plywood support strips
  • Floor lining constructed from 15mm (⅝”) plywood.

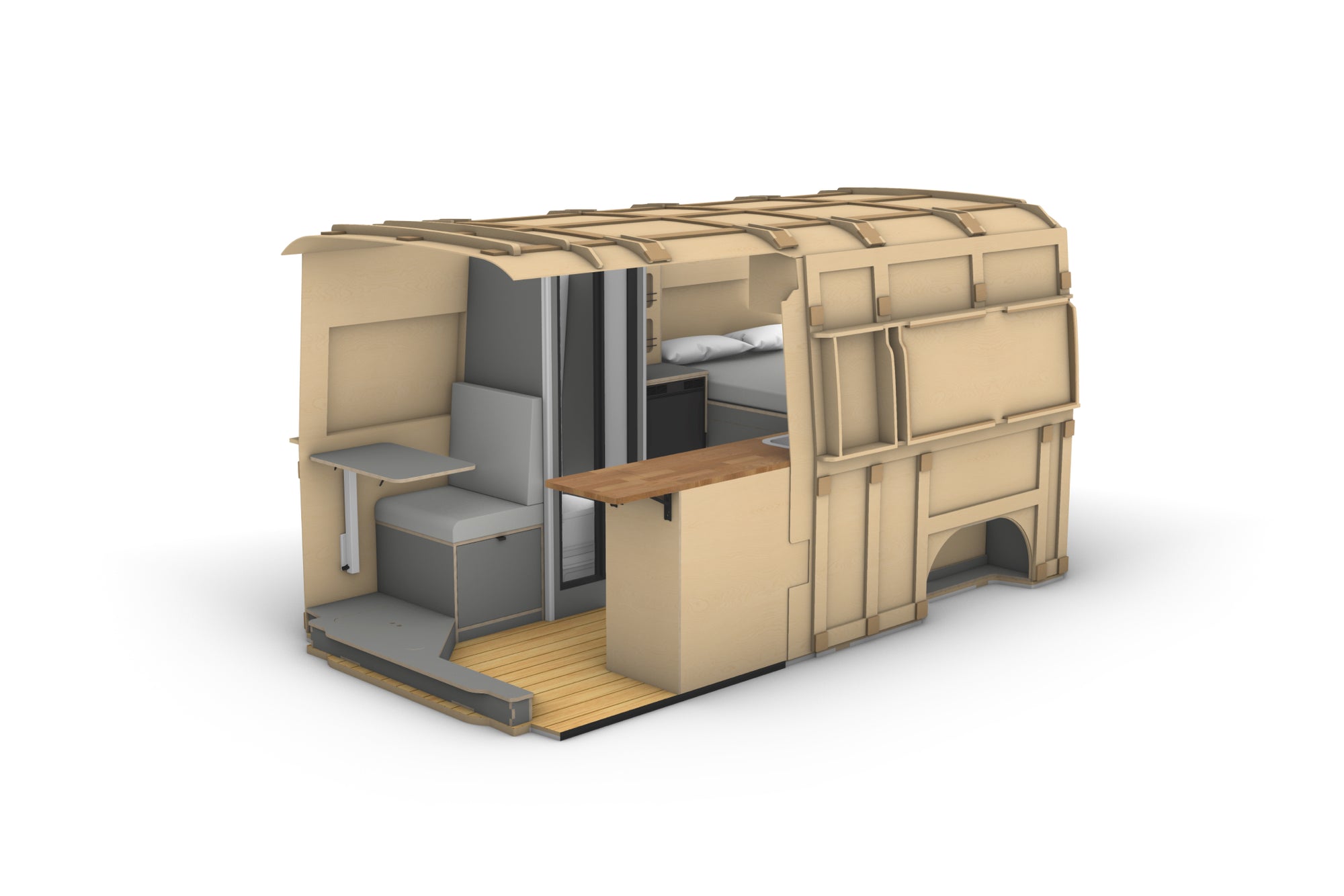

  • Wall, ceiling and door linings are constructed from 4 - 6mm (¼”) plywood.
  • Framing is constructed from 2.5 sheets of 18mm (¾”) lightweight plywood.’
  • Designed to fit Fiat Ducato L3H2 / Peugeot Boxer L3H2 / Citroën Relay L3H2 / Ram ProMaster 159" High Roof
  • The CAD model is available in STEP format.
  • Plans do not include electrical or plumbing diagrams throughout the vehicle however allowance has been made within the design to integrate these items.
  • Mattress size = 1300mm x 1900mm
  • Overview of materials, hardware, and appliances included.
  • It is advisable to seal the plywood before installation.
  • Ensure units are securely fastened to the van.
  • This van fit out is for intermediate to experienced builders.

Please get in touch if you have any questions before committing to purchasing. I can send you a basic version of the plans along with hardware and materials overview to help with your decision.

Important:
This is a digital download. The product shown is a rendering not a physical product.

Disclaimer:
I am not affiliated with Fiat, Peugeot, Citroën, Ram, or any associated manufacturers. This digital product is provided solely as a guide for individuals wishing to create their own campervan fit-out.

Copyright:
All digital plans provided by Cam Made Studio are intended for personal use only.
