Side-Opening Campervan Conversion Plans (Left Side)

Regular price $35.00 NZD
Shipping calculated at checkout.

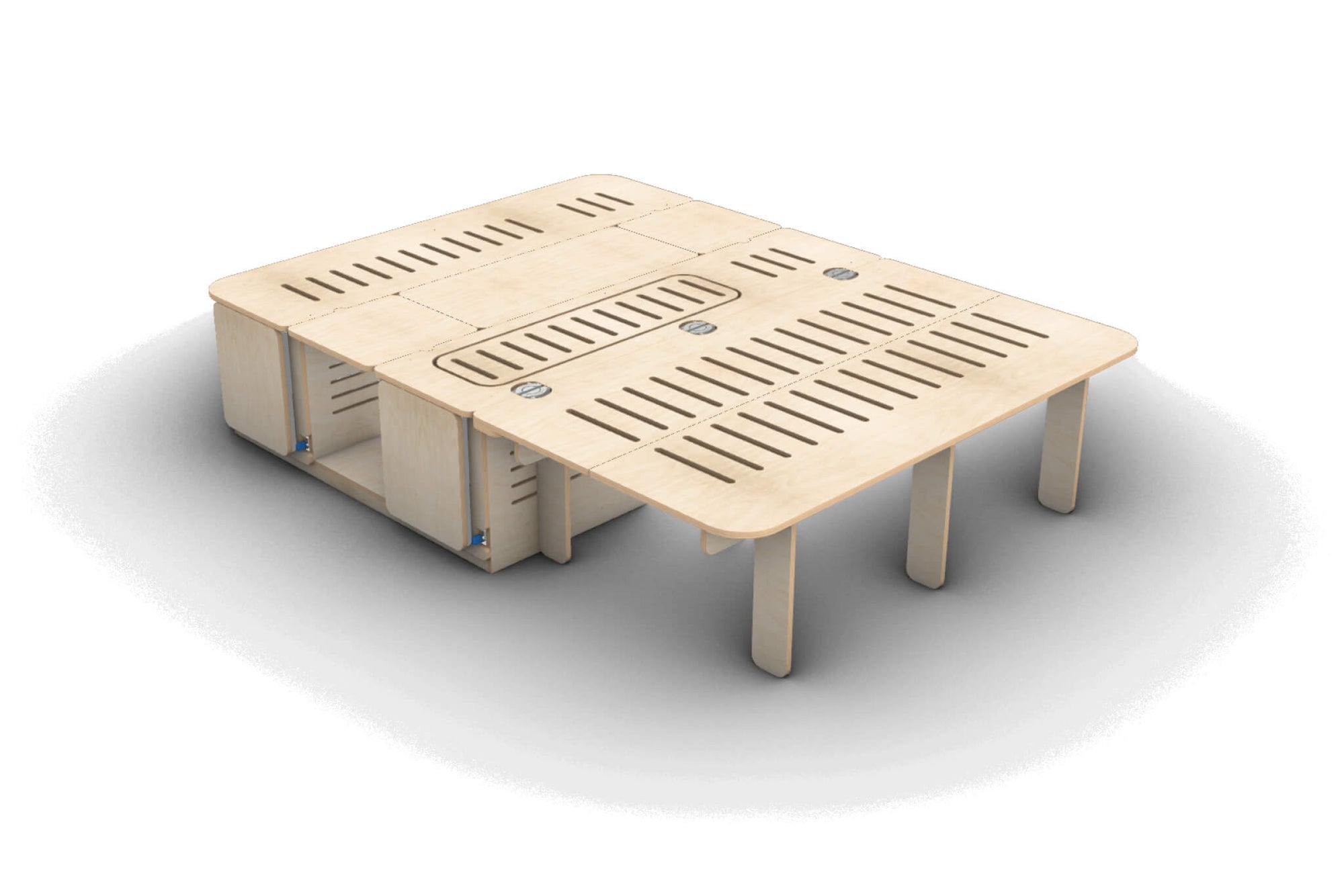

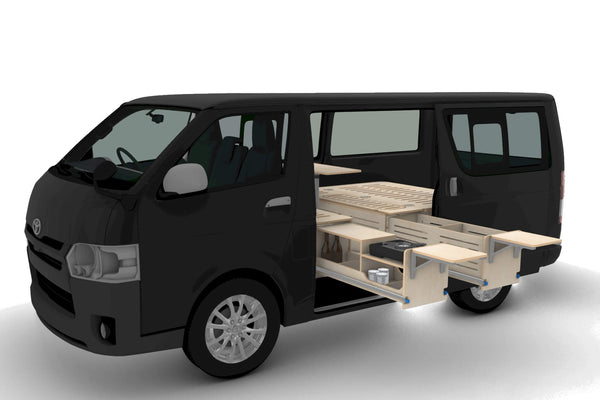

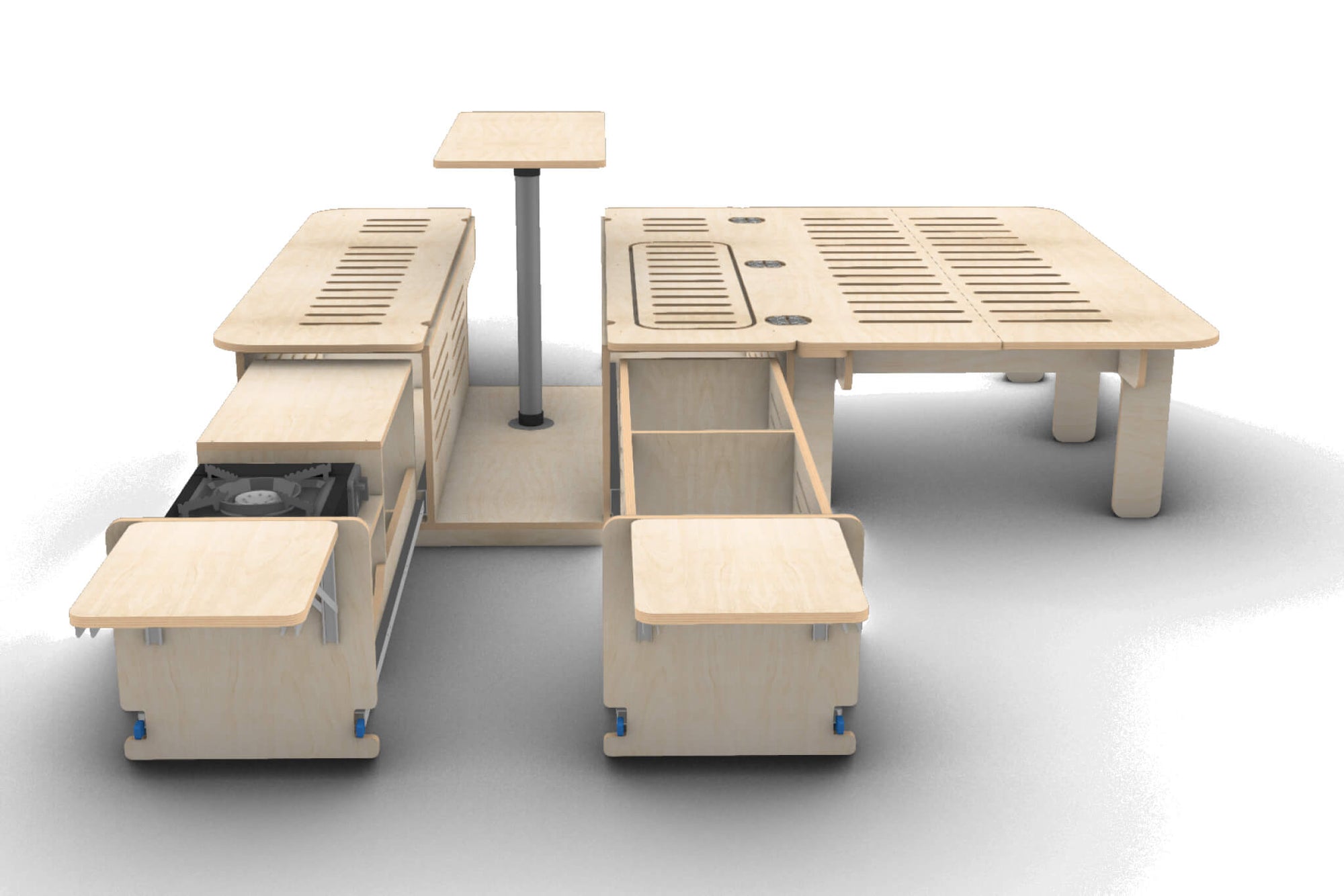

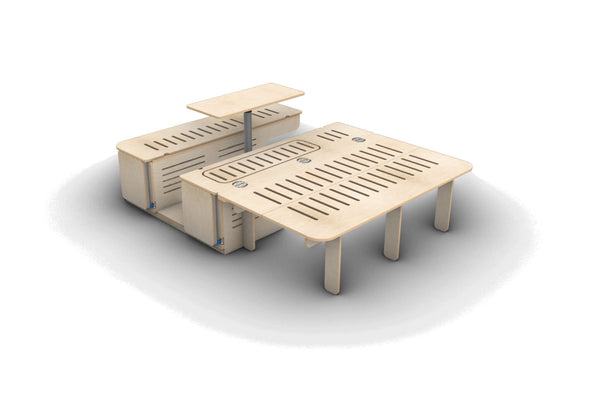

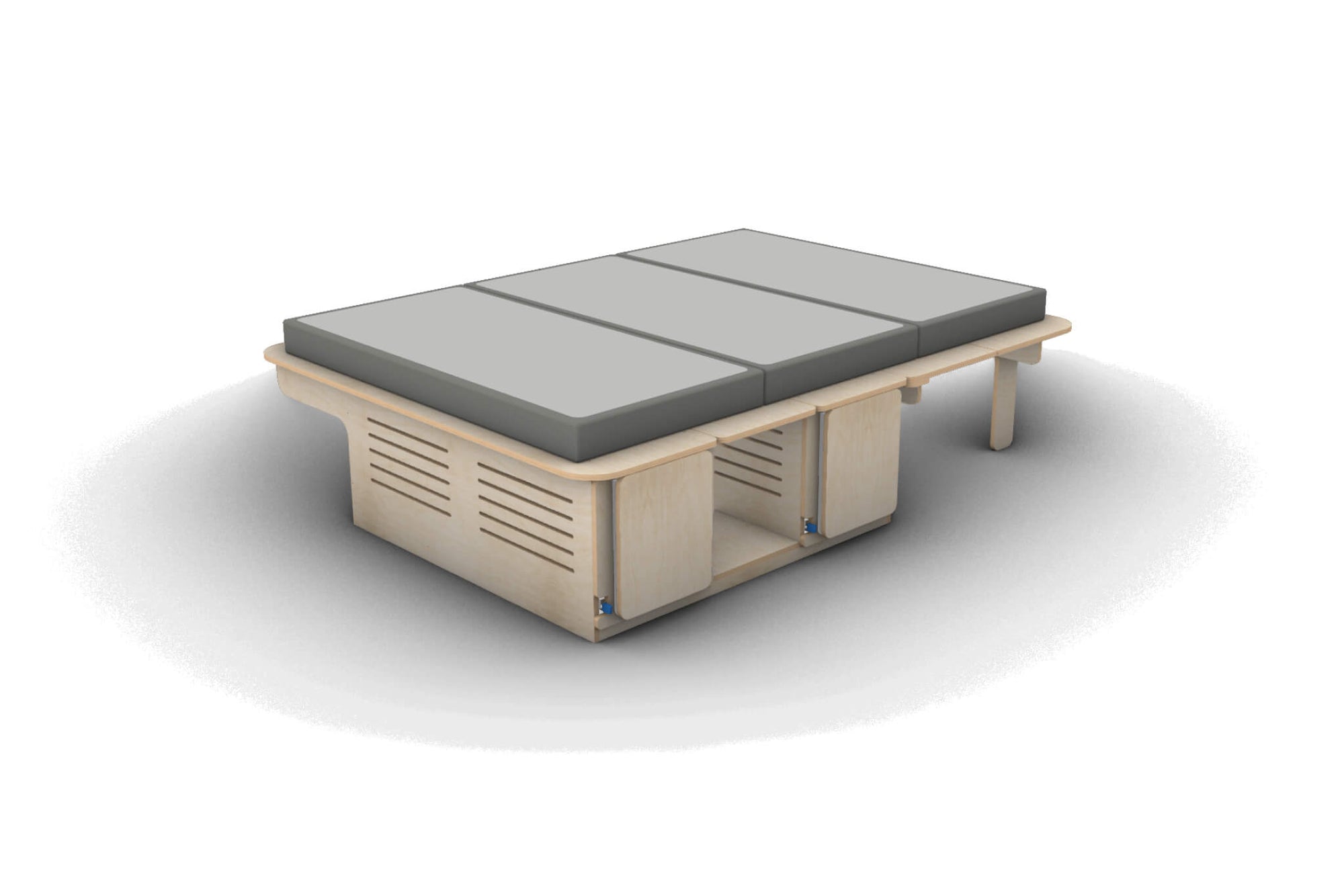

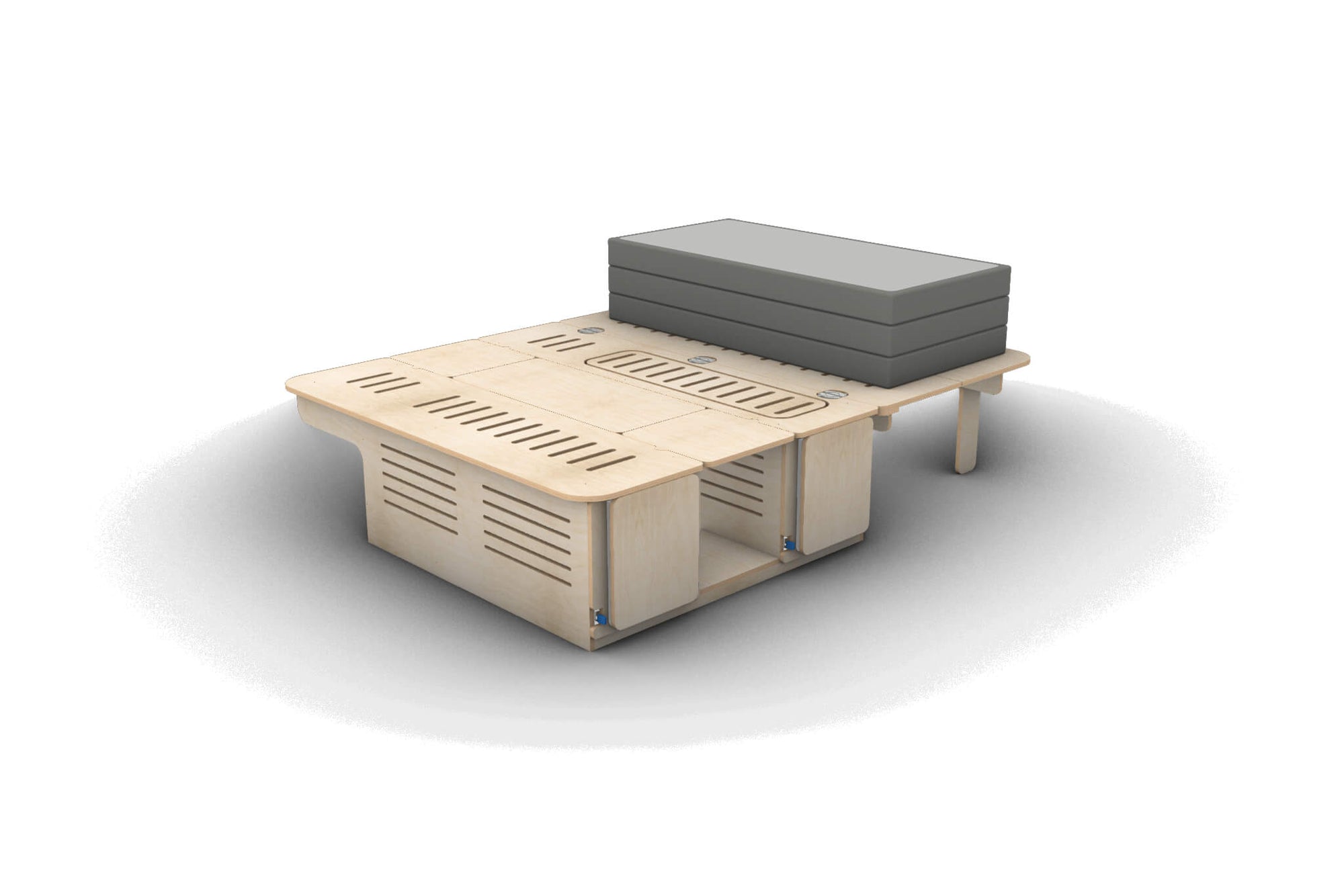

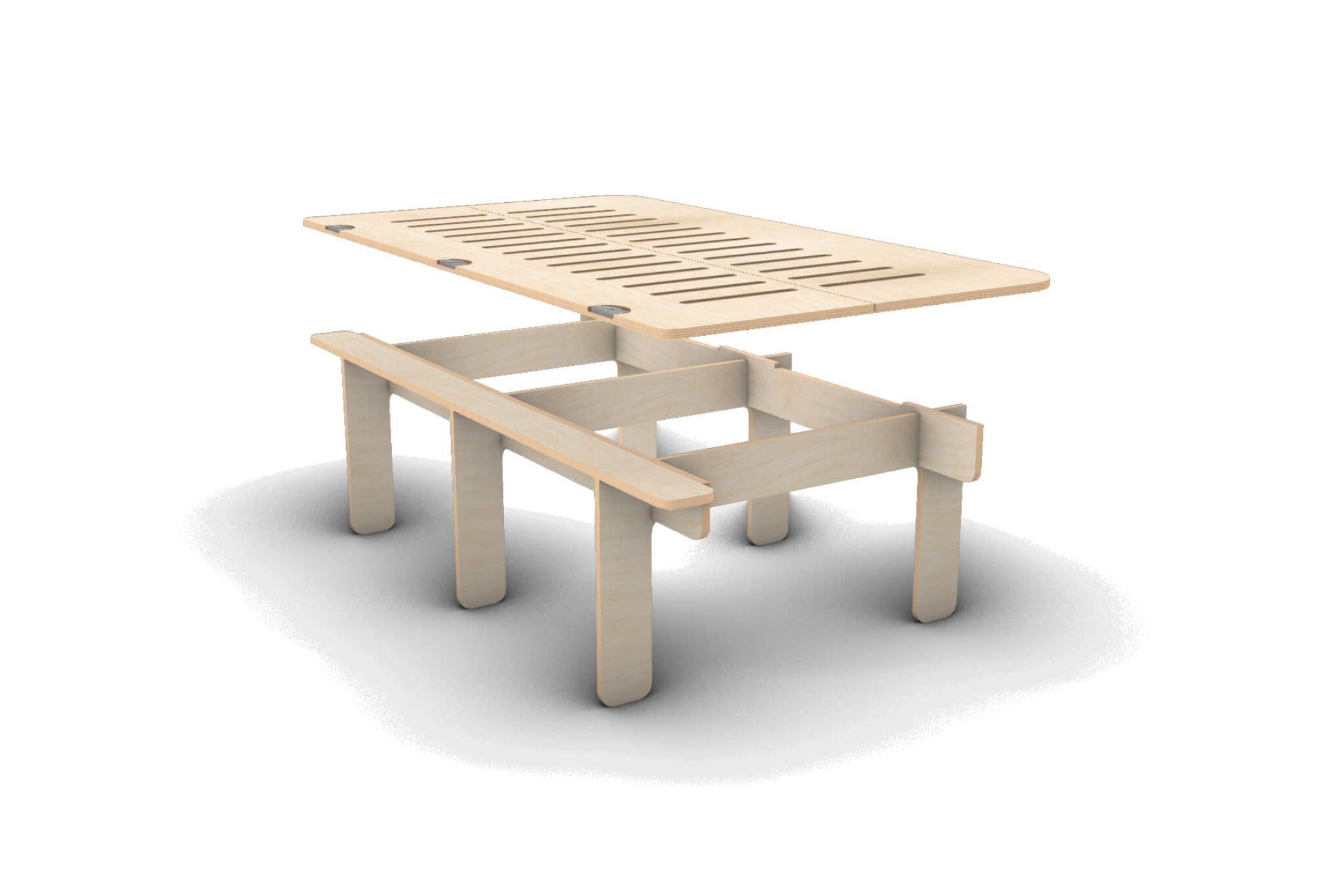

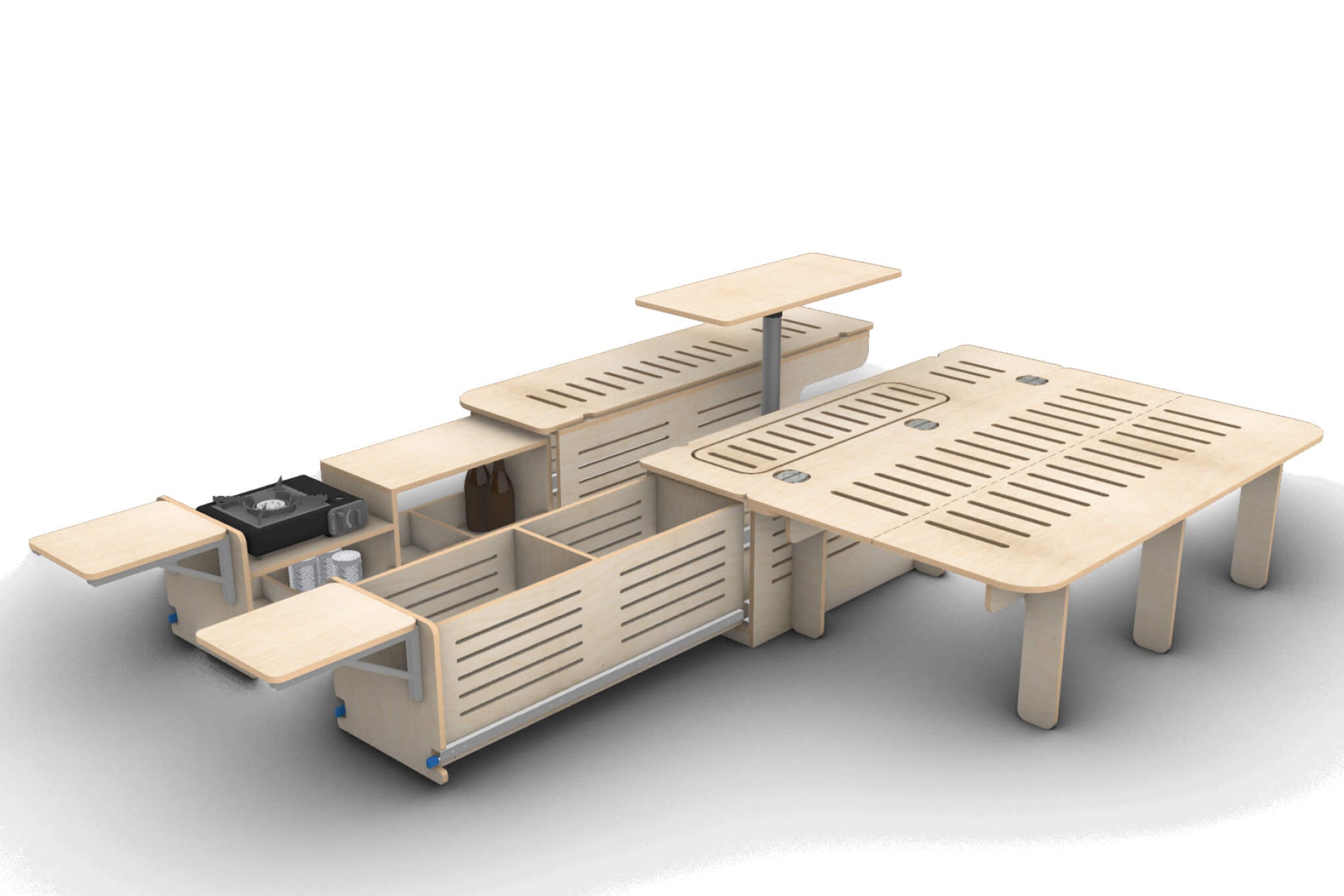

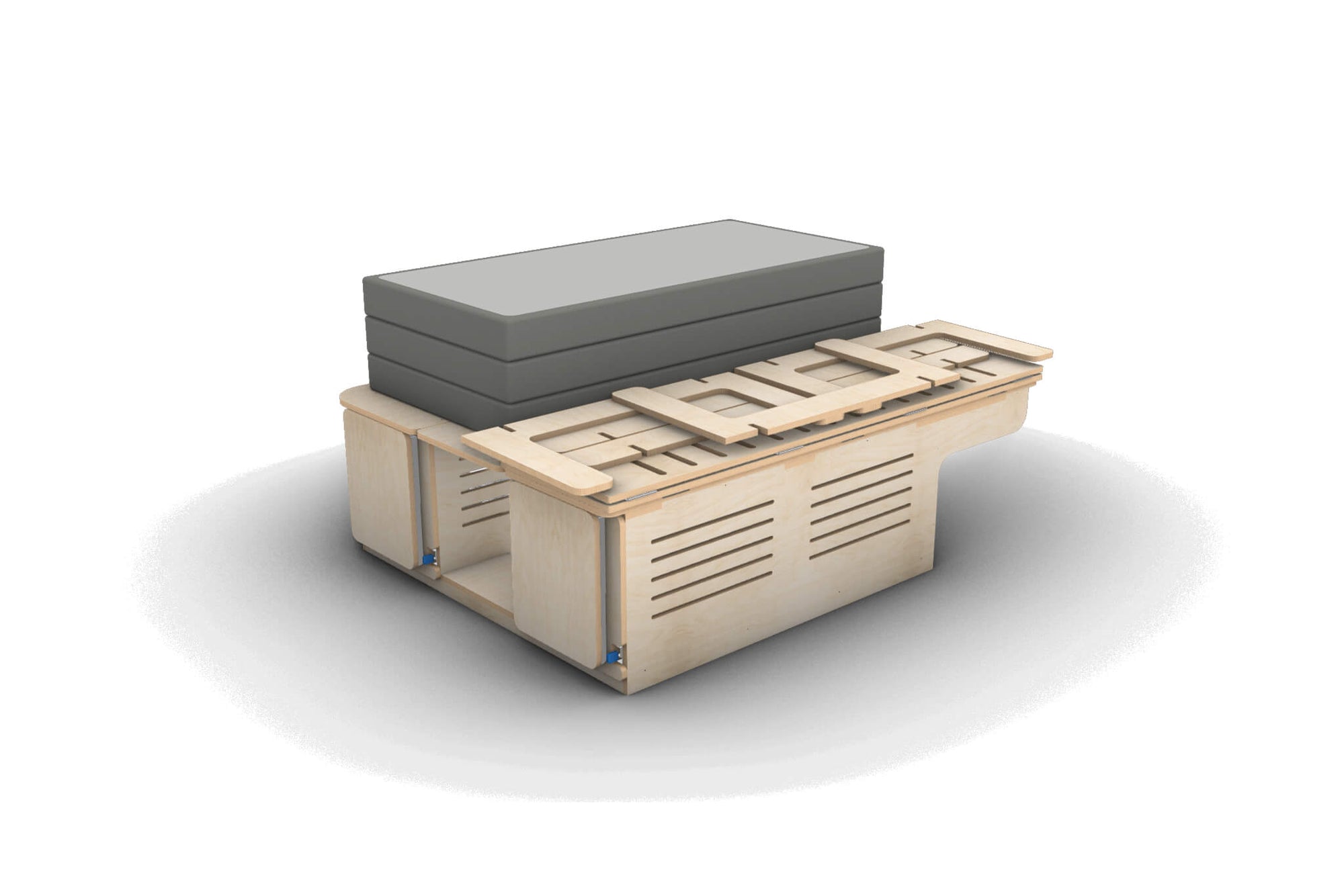

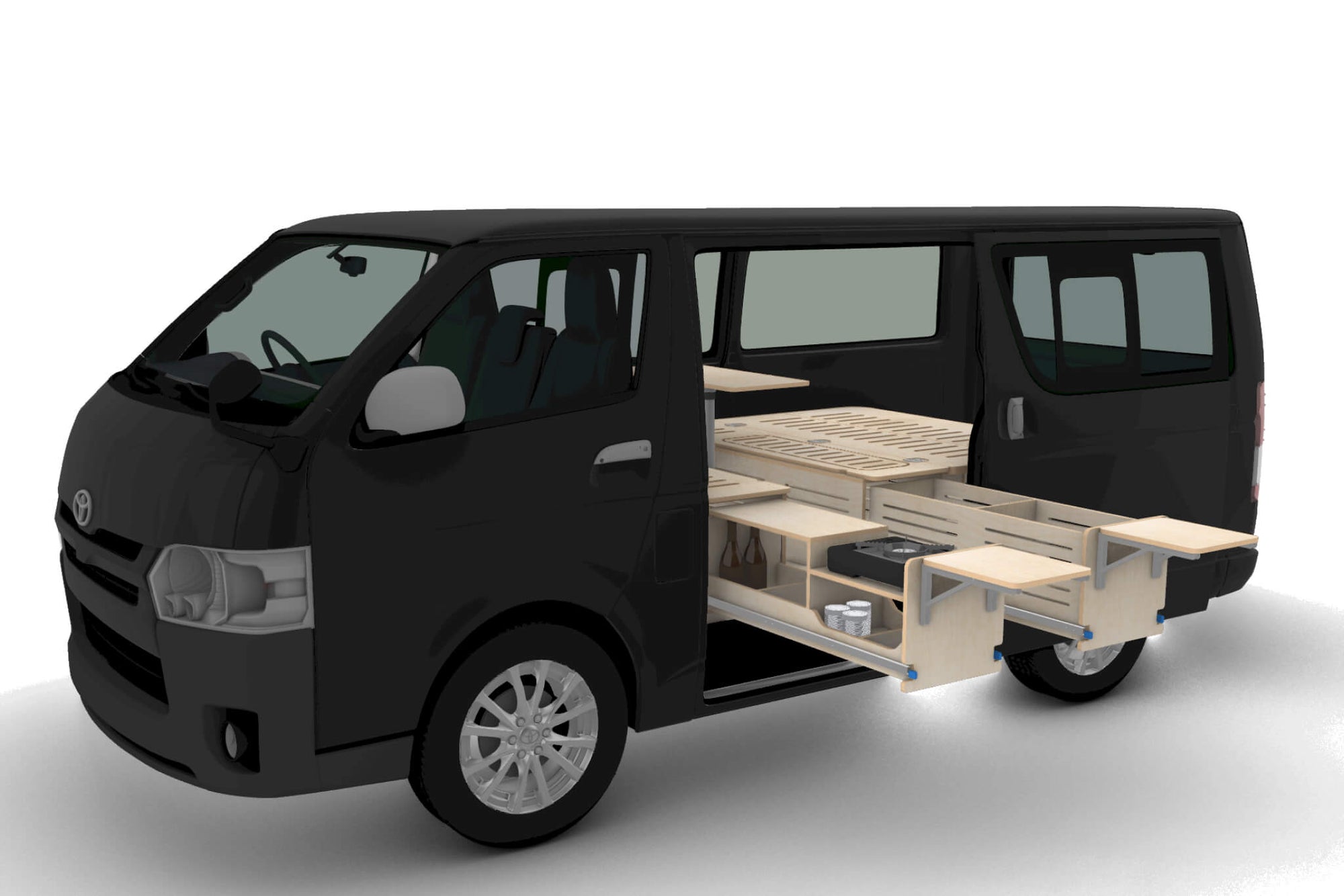

Convert your van into a functional camper with these side-opening universal conversion plans and CNC-ready files. This versatile design features a fold-up bed base, pull-out cooking drawer, internal storage, and airflow vents, all tailored for compact van layouts.

The 28-page guide includes detailed diagrams, a CAD model, and CNC DXF files to streamline your build.

  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    28-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 28 pages in PDF in total
  • CNC Overview 5 pages total

What's Required:
  • Access to a CNC Router
  • 5 x 15mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw (some scribing may be necessary)

Additional Information:
  • All plans are in English and the units are in mm (metric)

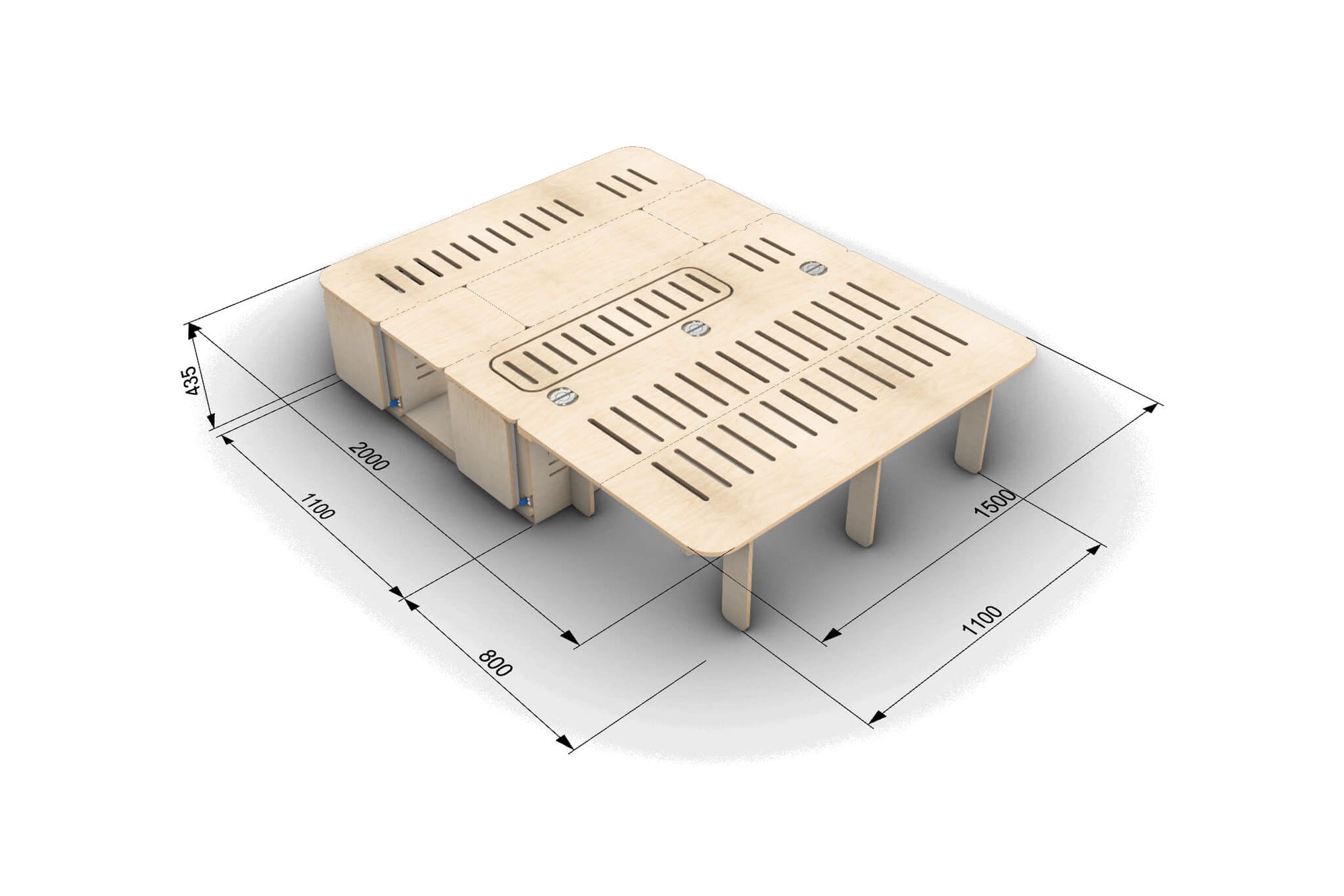

  • Overall footprint of base of unit = 1500mm wide x 1900mm long x 435mm high
  • Drawer runner extension = 1000mm
  • Construction = 15mm Plywood
  • Poplar ply recommended for weight reduction
  • Plywood sheet size = 1200mm x 2400mm
  • CAD model is in STEP. format however I can export most required formats upon request
  • CAD model does not include the Hiace van model as I do not have the rights to share this
  • This is the LHS version check out my other listing for RHS version

Important:

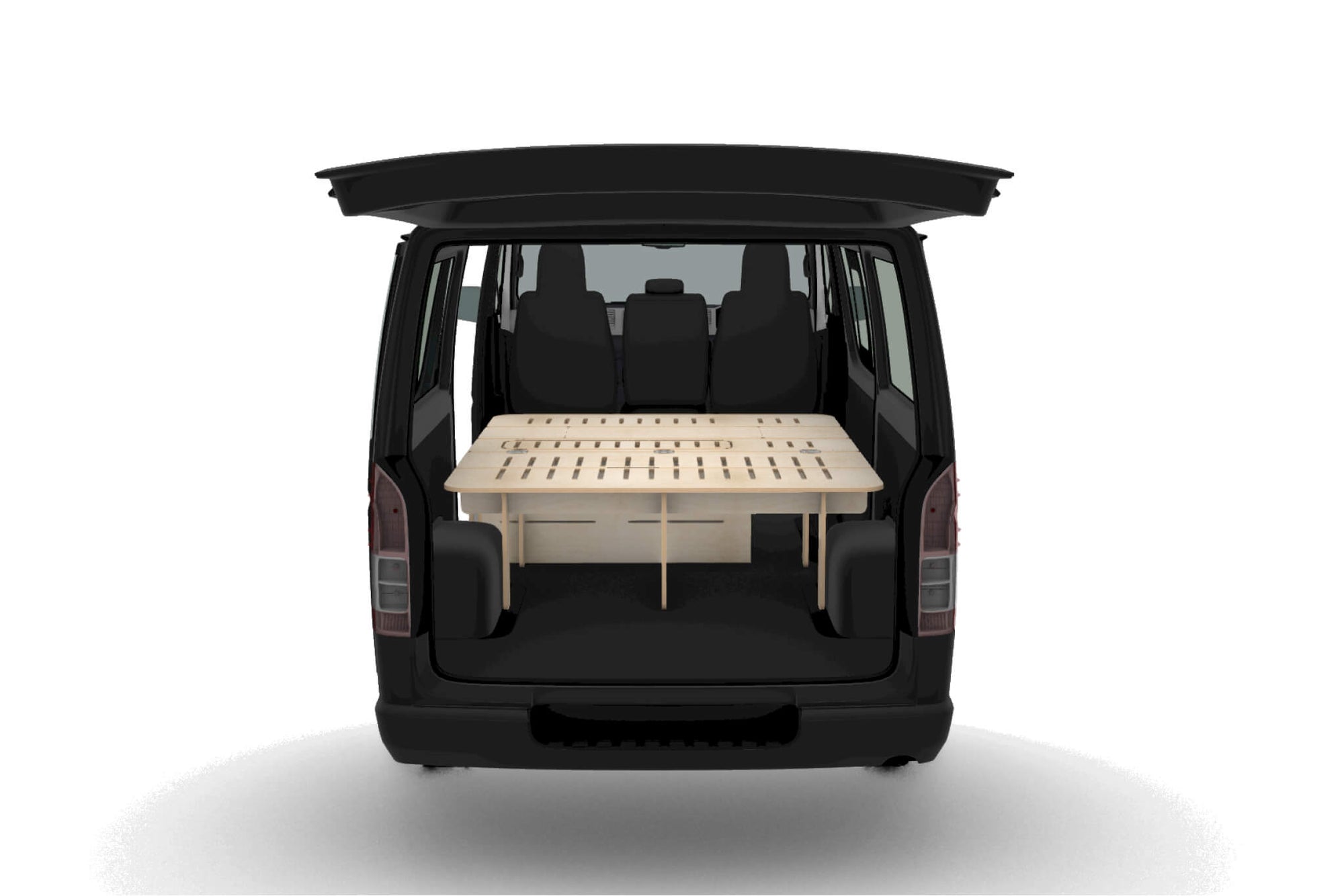

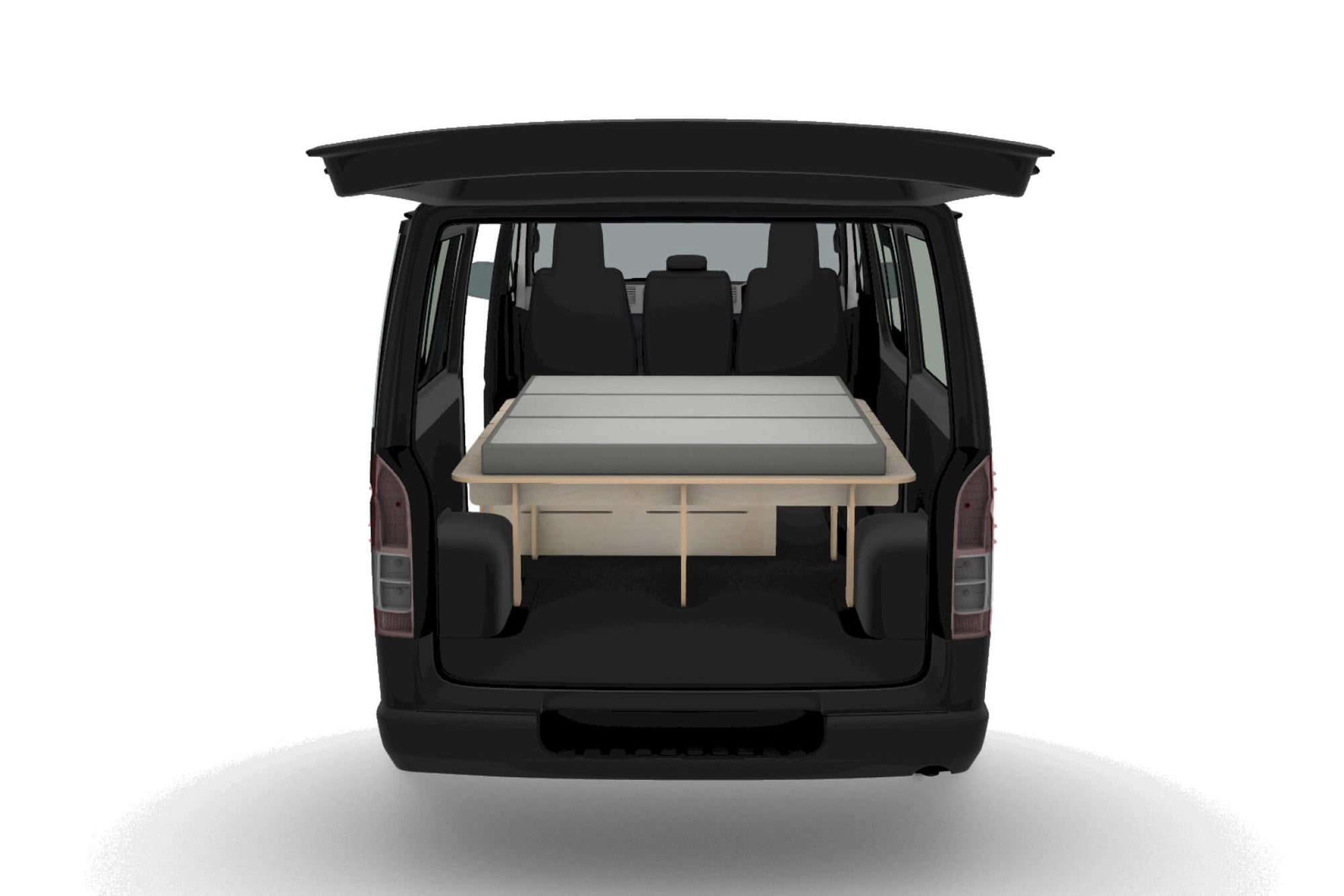

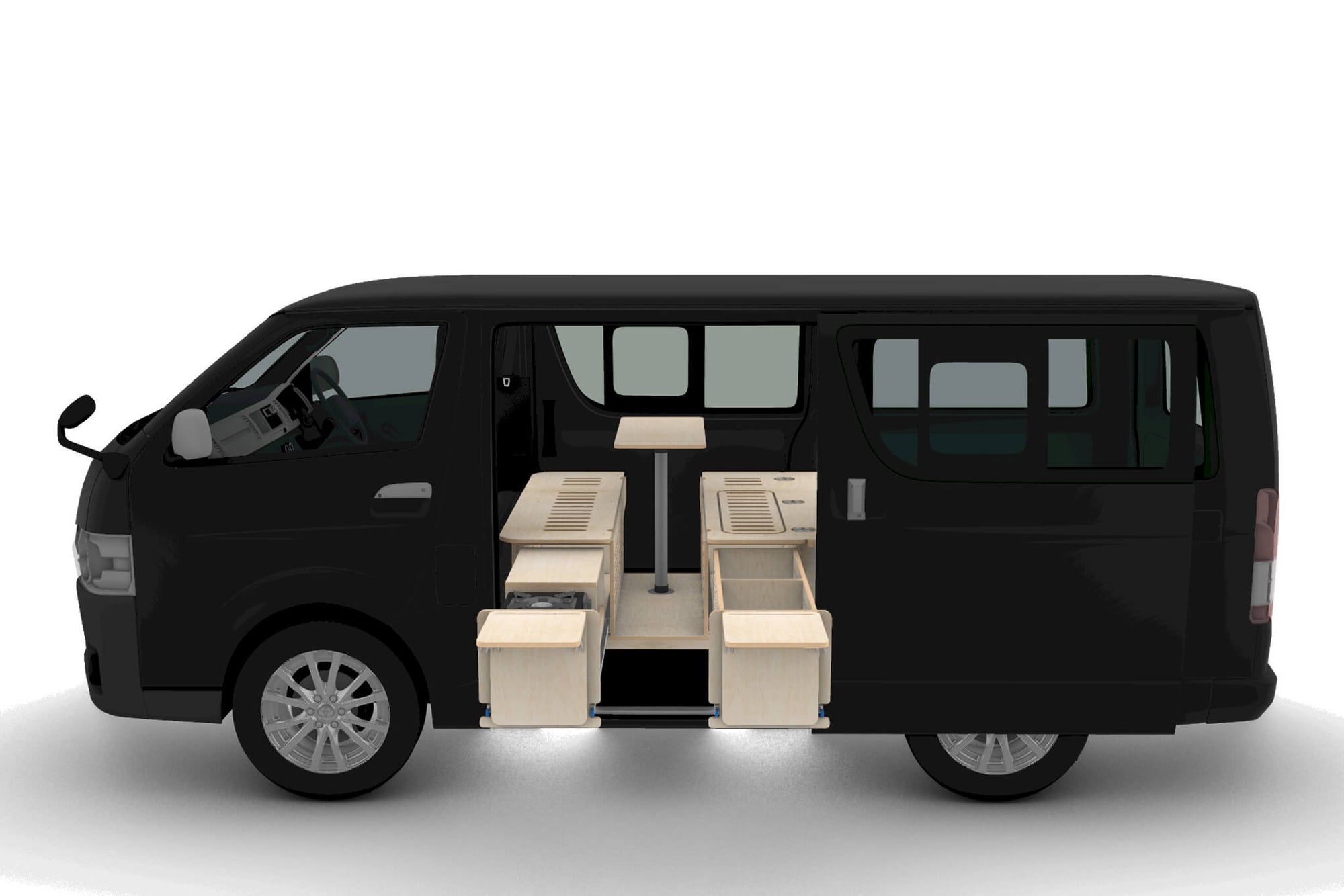

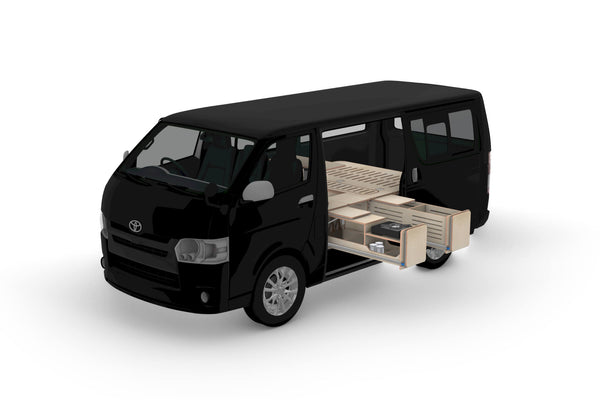

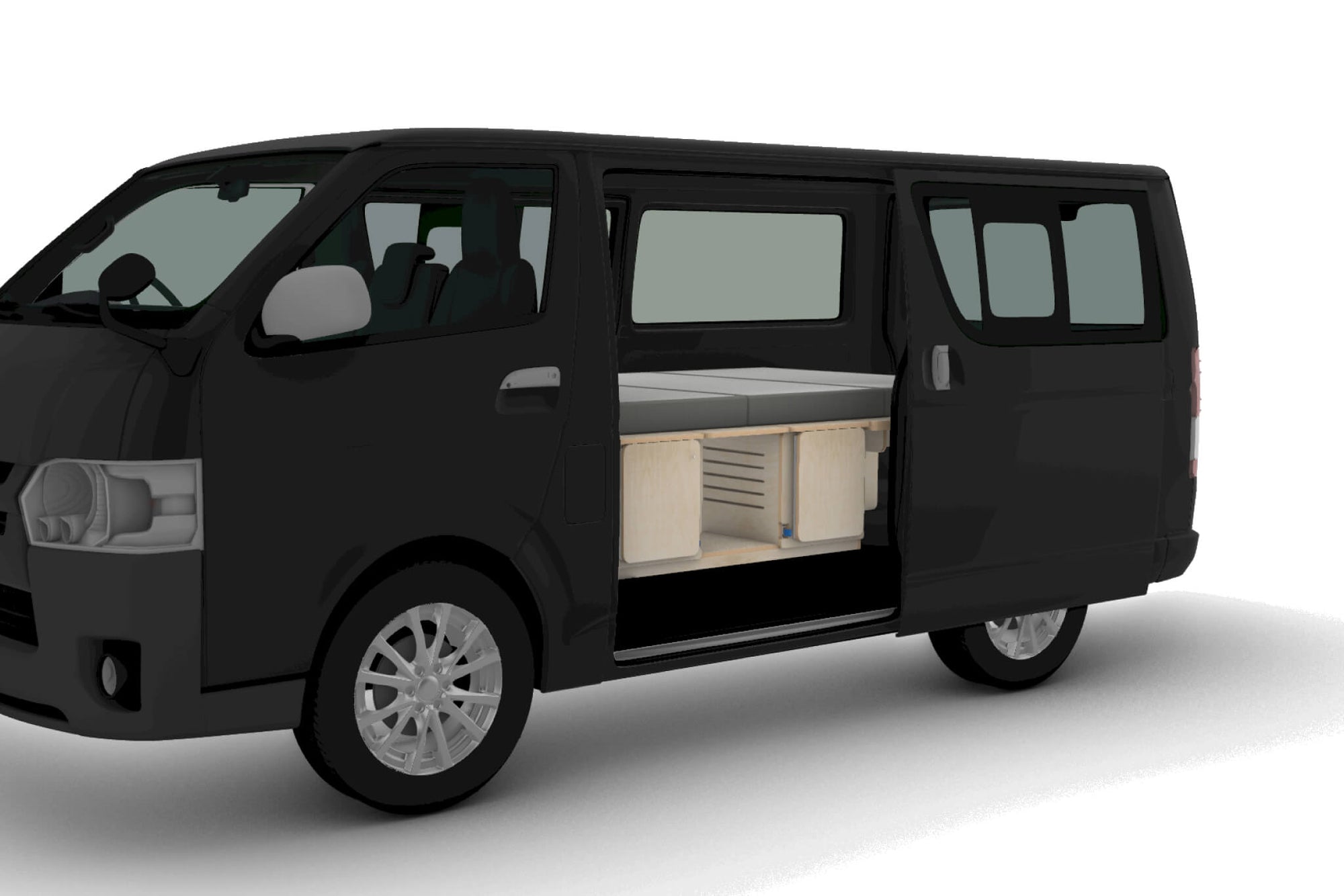

This is a digital download. Product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
