Campervan Slide-Out Kitchen Plans (Left Side)

Regular price $35.00 NZD
Shipping calculated at checkout.

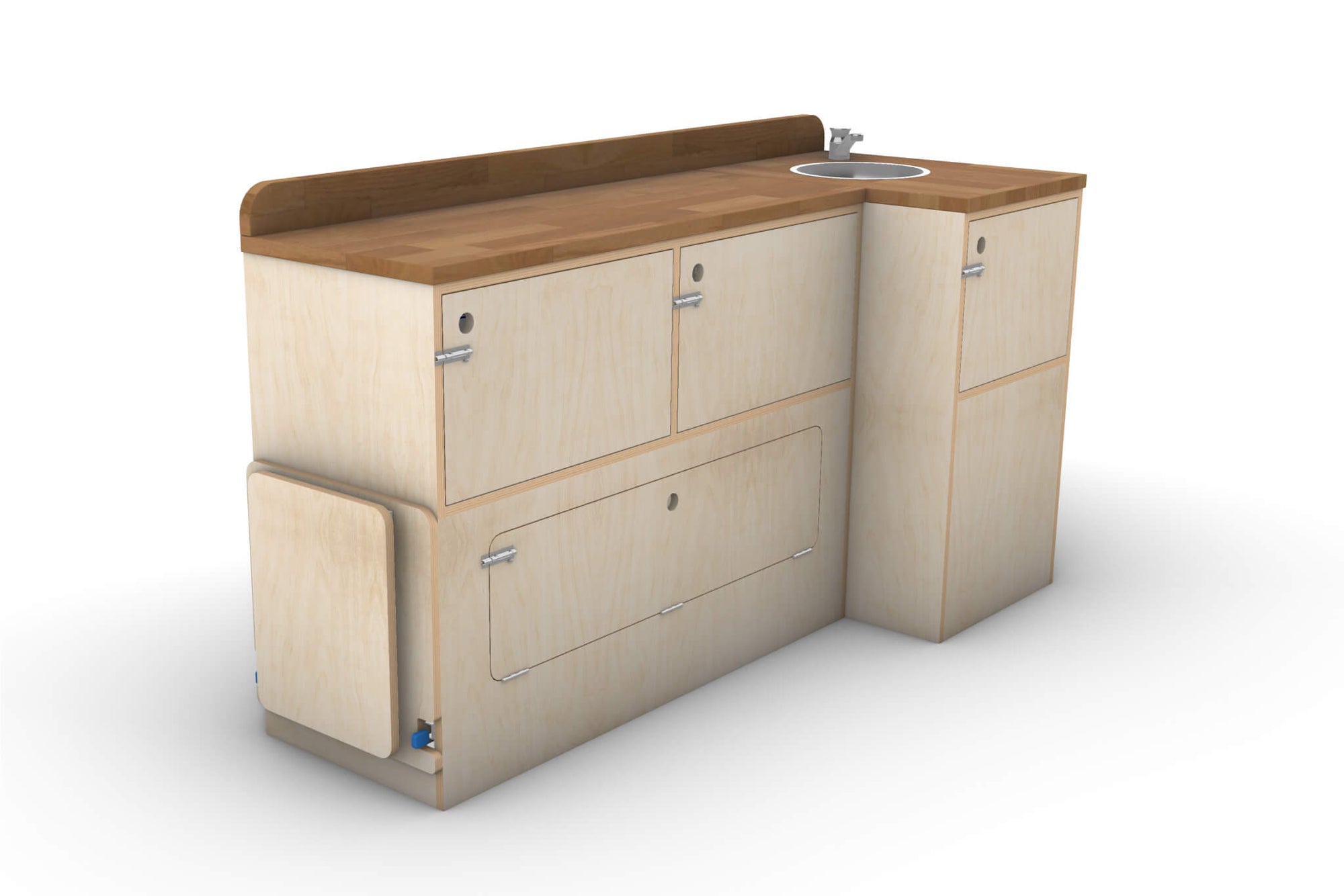

Build your own camper kitchen with this detailed 49-page PDF guide, featuring step-by-step instructions, diagrams, and a labeled cutlist.

The versatile design fits various van layouts and includes both CNC-ready DXF files and manual cutting options.

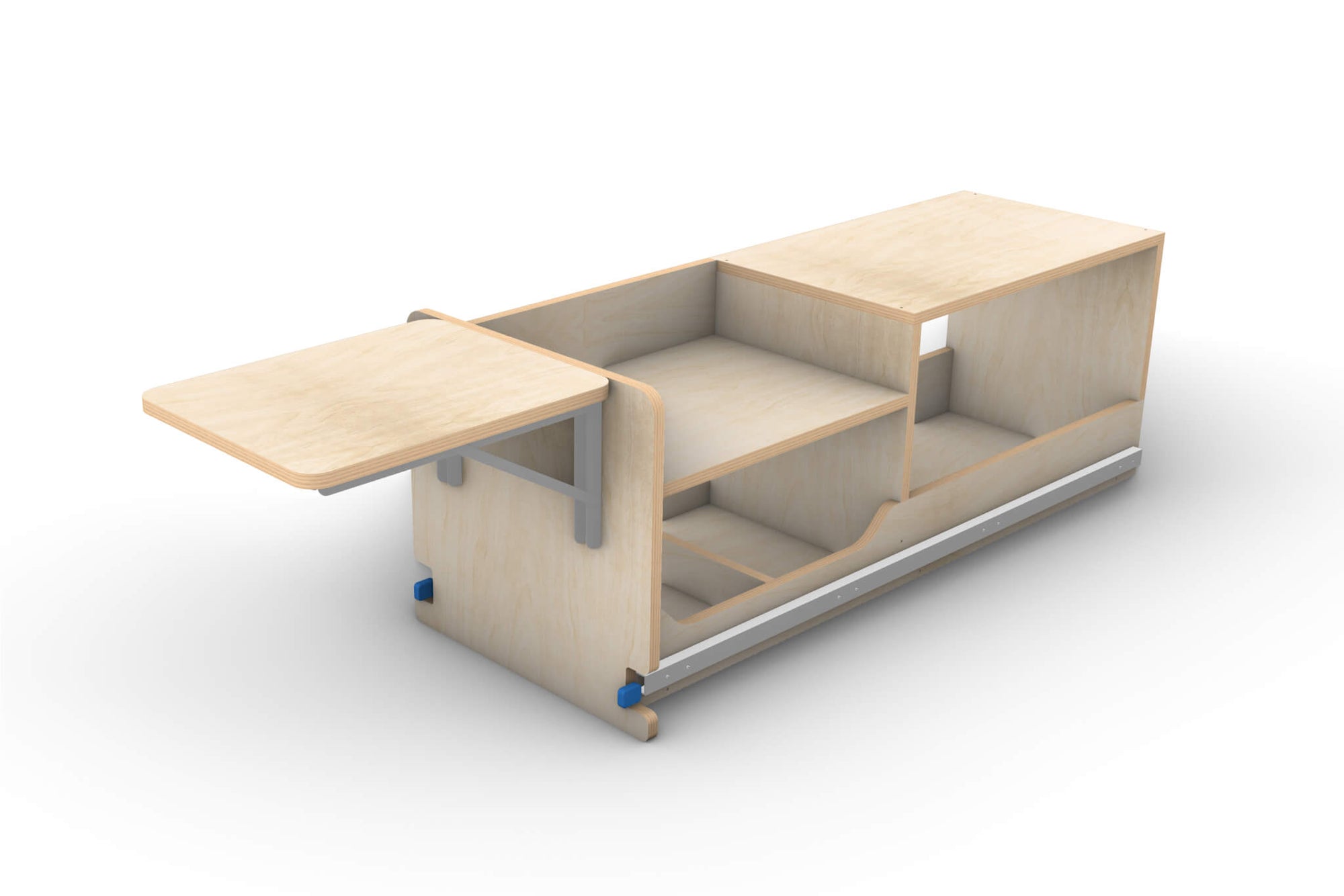

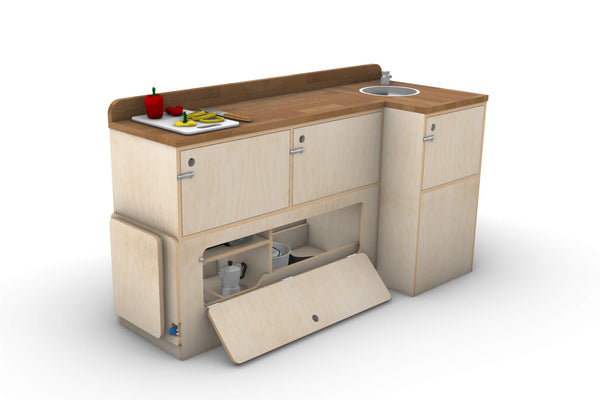

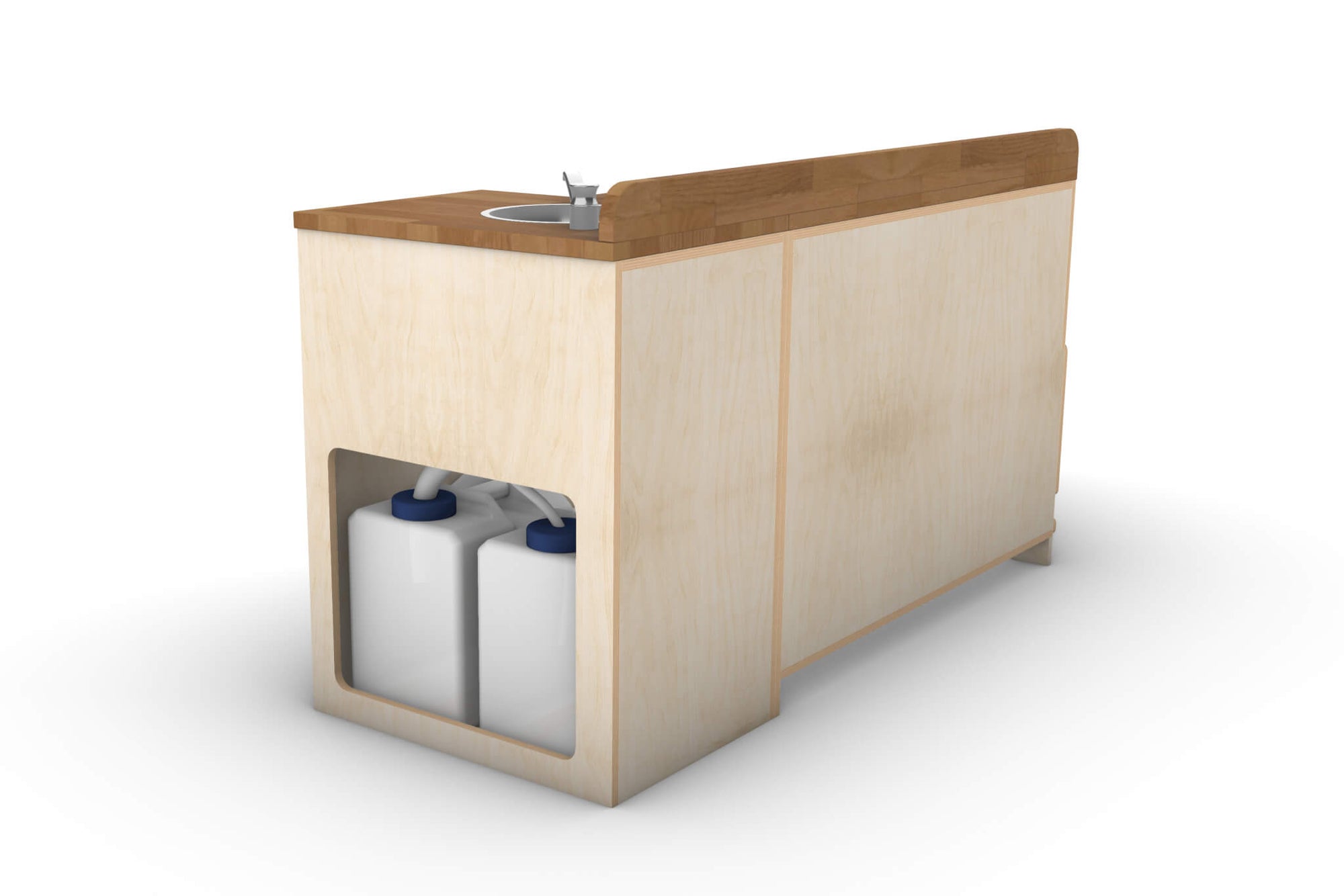

Key features include a pull-out cooking drawer, fold-up table, water storage, and detailed hardware and material list.

  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    49-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled cutlist for manual cutting
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 49 pages in PDF in total

What's Required:
  • 3  x 15mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Circular saw and jigsaw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)

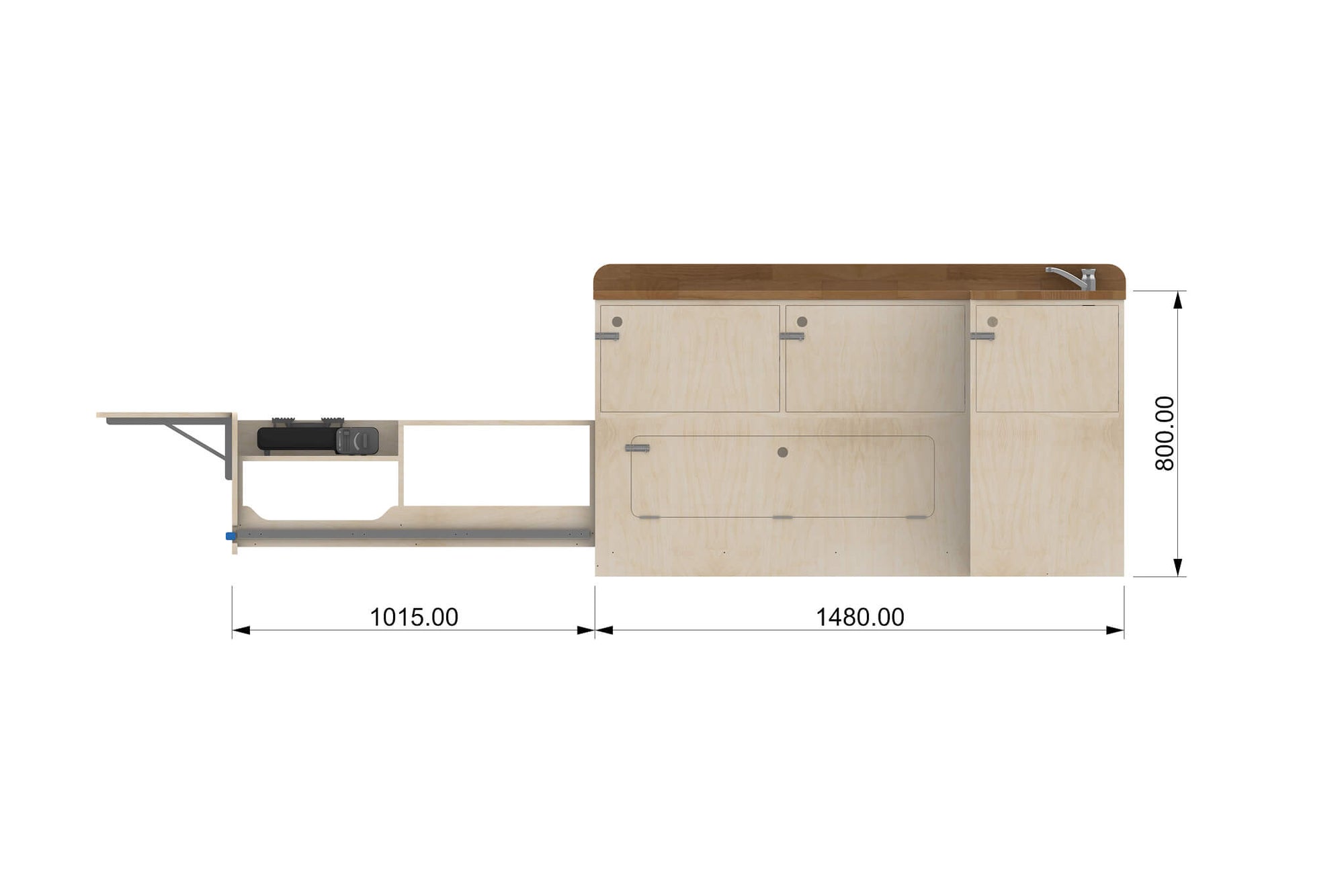

  • Overall footprint of unit = 1480mm wide x 600mm deep x 800mm high
  • Drawer runner extension = 1000mm
  • Construction = 15mm Plywood (Poplar recommended for weight reduction)
  • Plywood sheet size = 1200mm x 2400mm
  • 3 sheets of plywood required
  • It is recommended that the plywood is sanded and sealed before installation
  • Unit will need to be secured to van
  • CAD model is in STEP. format however I can export most required formats upon request
