Mobile Mitre Saw Trolley Plans

Regular price $20.00 NZD
Shipping calculated at checkout.

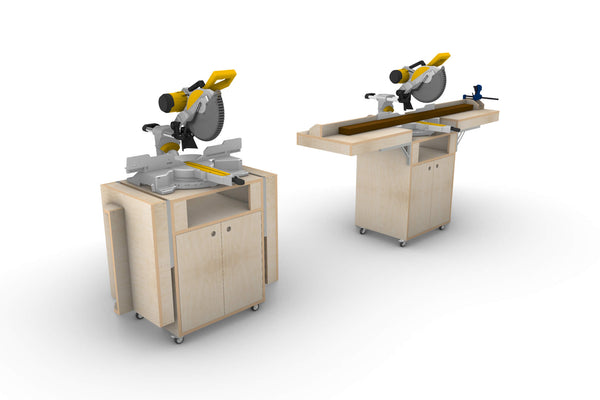

Build your own mobile mitre saw trolley with this 23-page PDF guide, featuring step-by-step instructions, diagrams, and a complete cutlist. This Mitre Saw Trolley can be made entirely with hand tools, or cut on a CNC and assembled by hand.

Designed for small workshops, the compact, rollable unit offers accessible tool storage and efficient workspace organisation. Includes CNC-ready DXF files, manual cut diagrams, and a 3D CAD model for precise construction.

  • Skill Level:
    • Beginner
  • Units:

    • Millimetres (mm)
  • Pages:

    23-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled cut diagram showing nested parts
  • Labelled DXF files for CNC machining (optional)
  • CAD model (.STEP format)

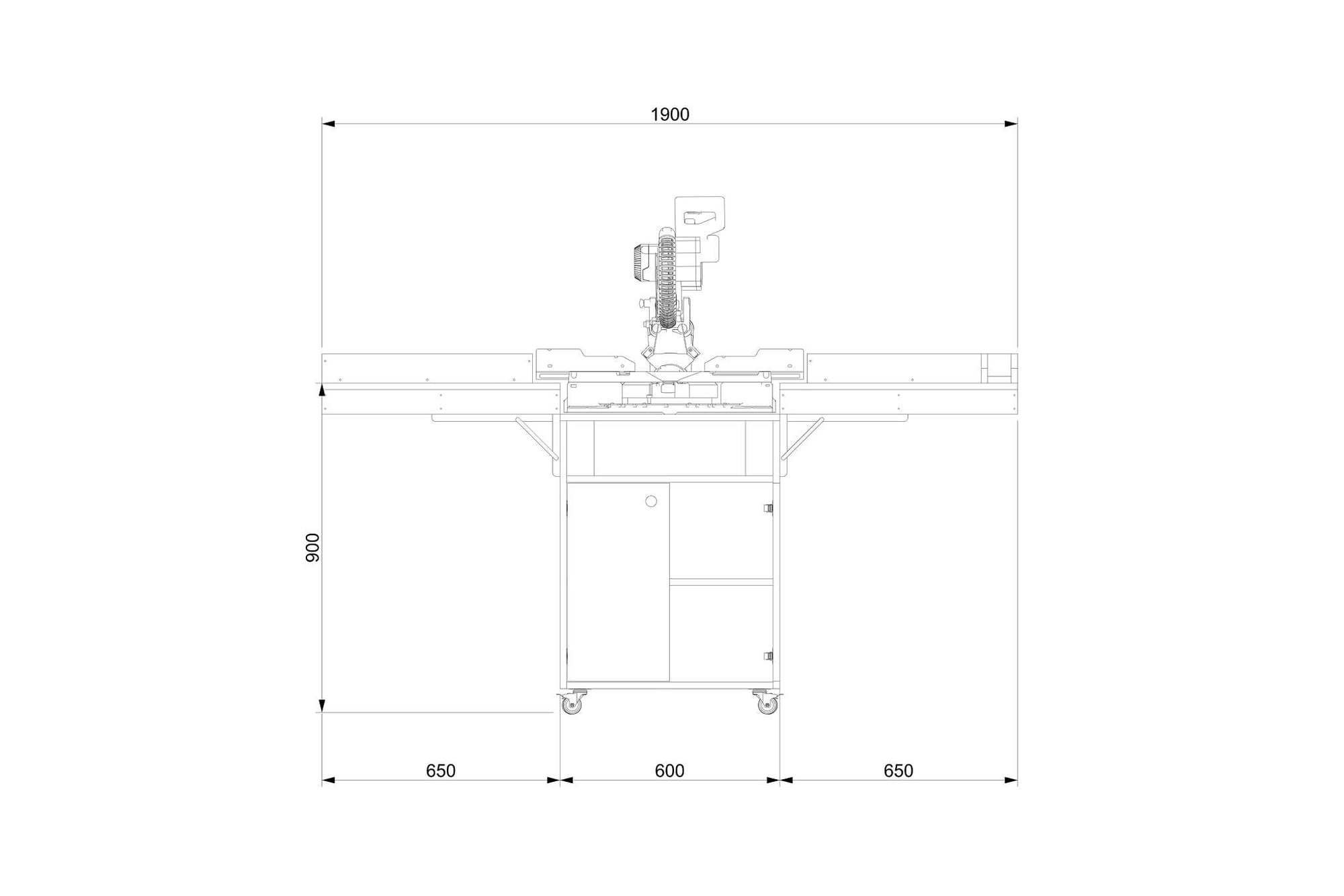

  • Dimensioned drawings
  • 23 pages in PDF in total

What's Required:
  • 1.5 x 18mm Plywood sheet required
  • Basic hand tools such as drill and driver for assembling
  • Circular saw or table saw

Additional Information:
  • All plans are in English and the units are in mm (metric)
  • Overall Dimensions when deployed = 500mm D x 900mm H x 1900 W
  • Construction = 18mm Plywood
  • Plywood sheet size = 1200mm x 2400mm
  • 2 sheets required for CNC option due to tooling allowance
  • CAD model is in STEP. format however I can export most required formats upon request

Important:

This is a digital download. Product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.
