Ford Transit 148" EXT High Roof Campervan Conversion Plans (L4H3)

Regular price $275.00 NZD
Shipping calculated at checkout.

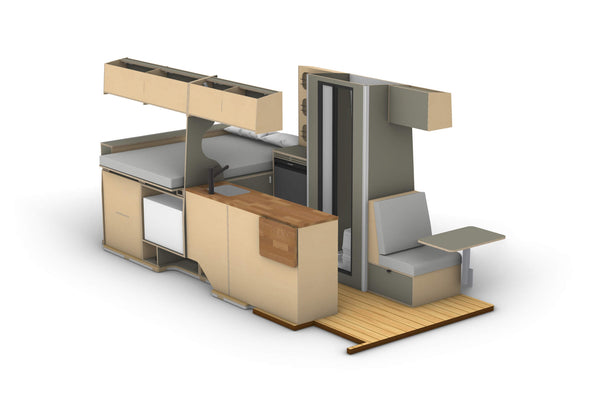

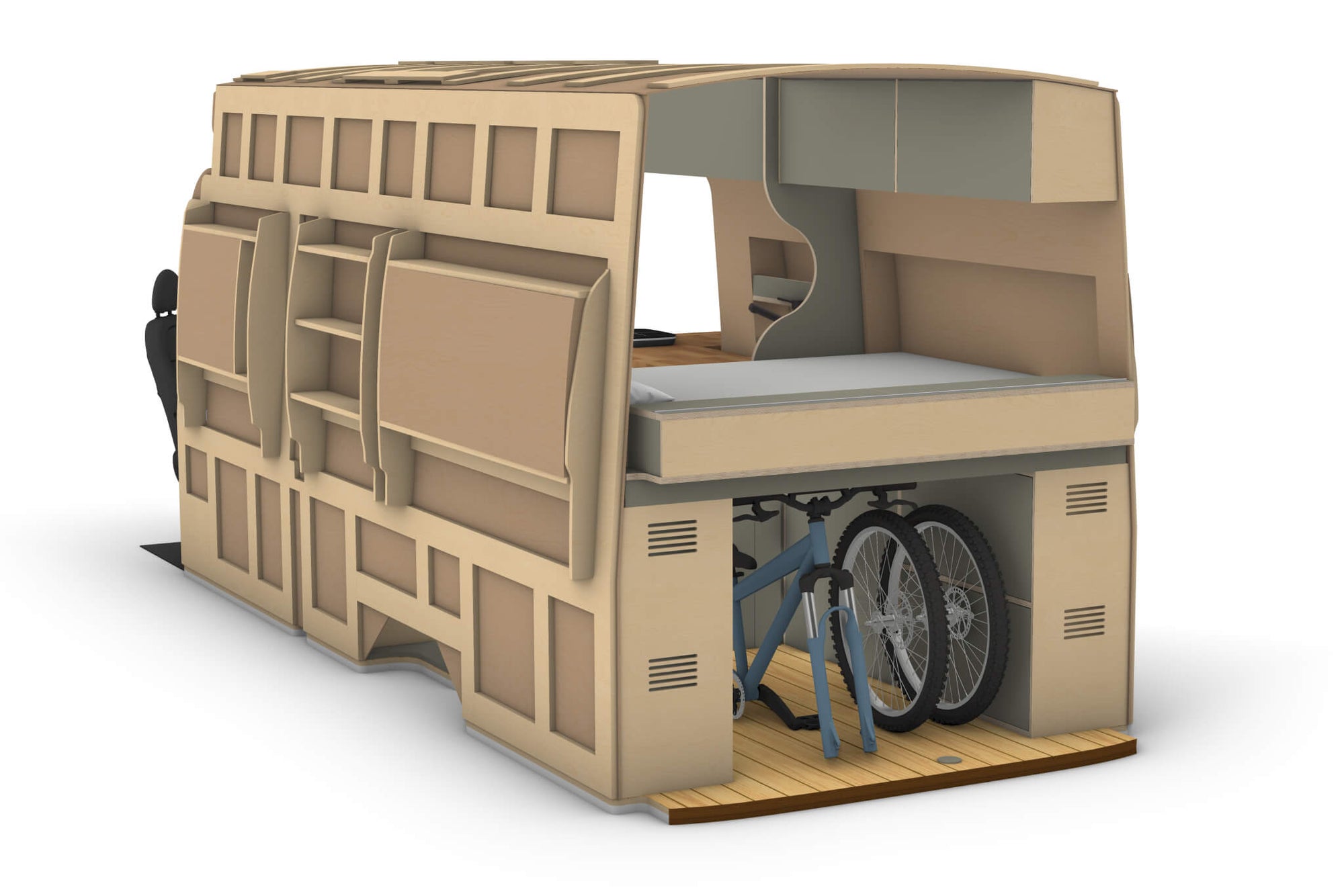

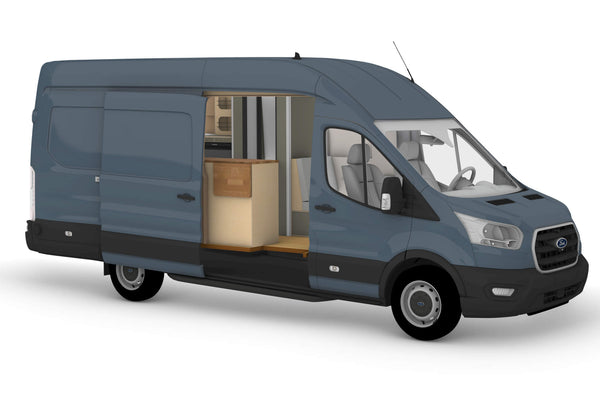

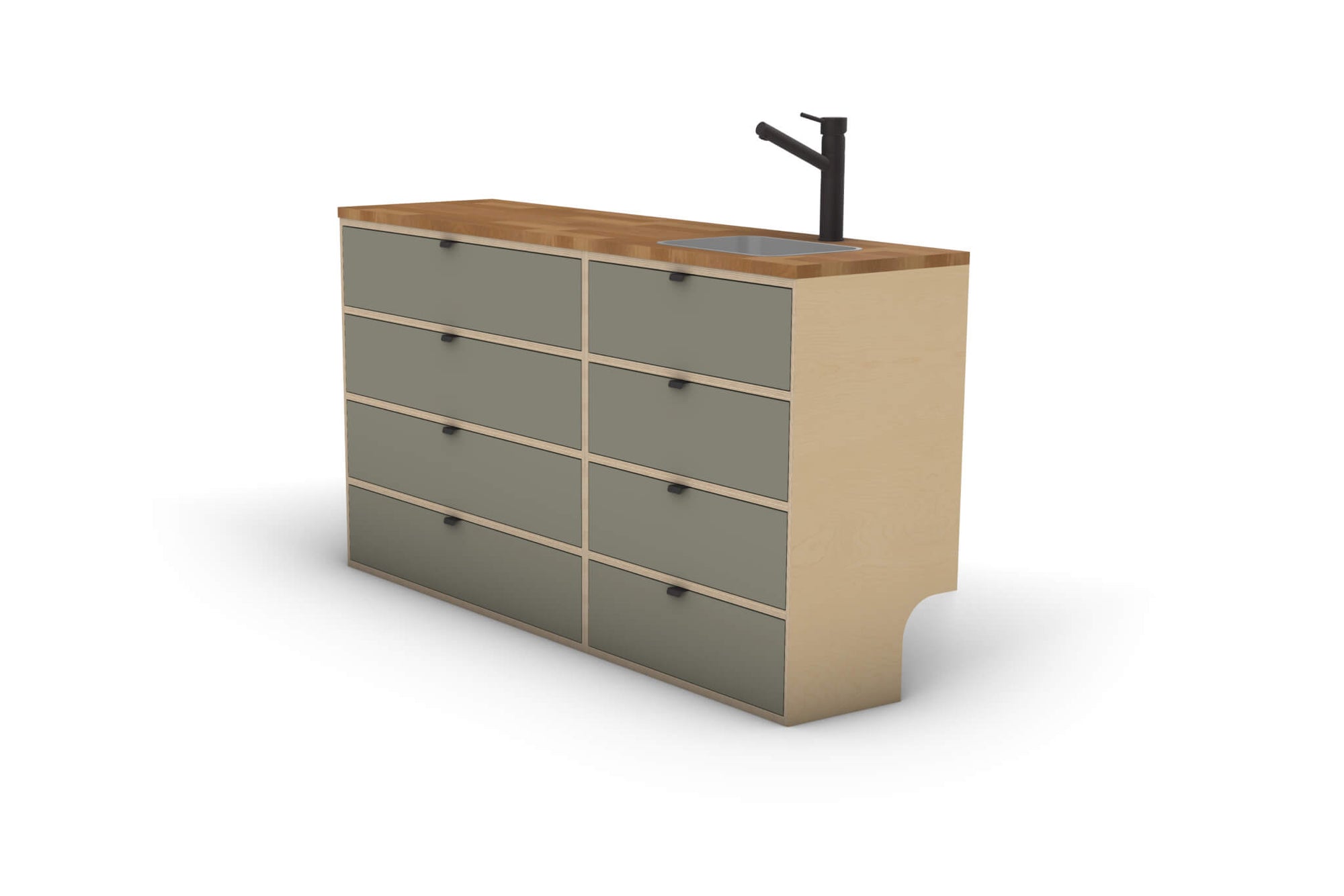

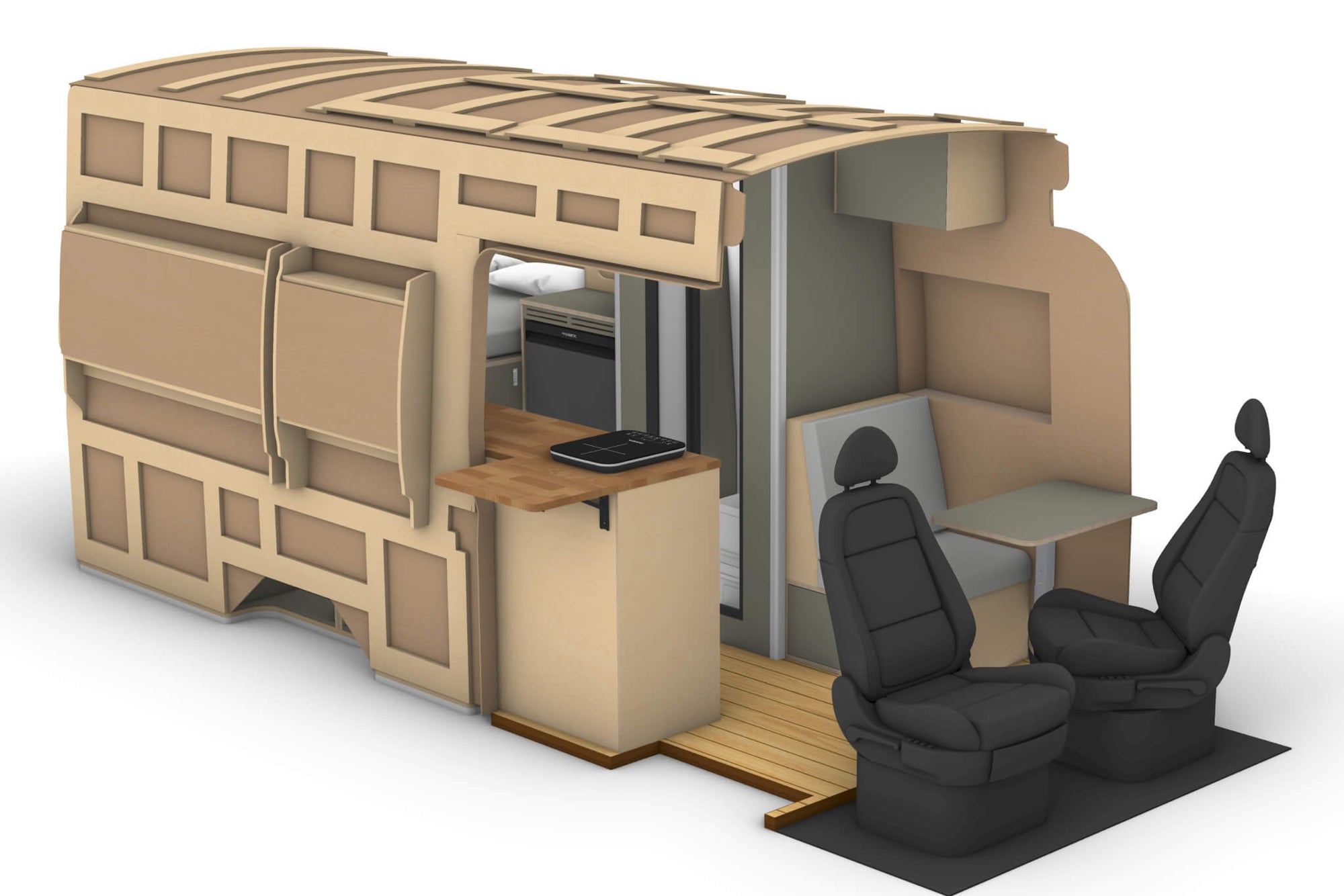

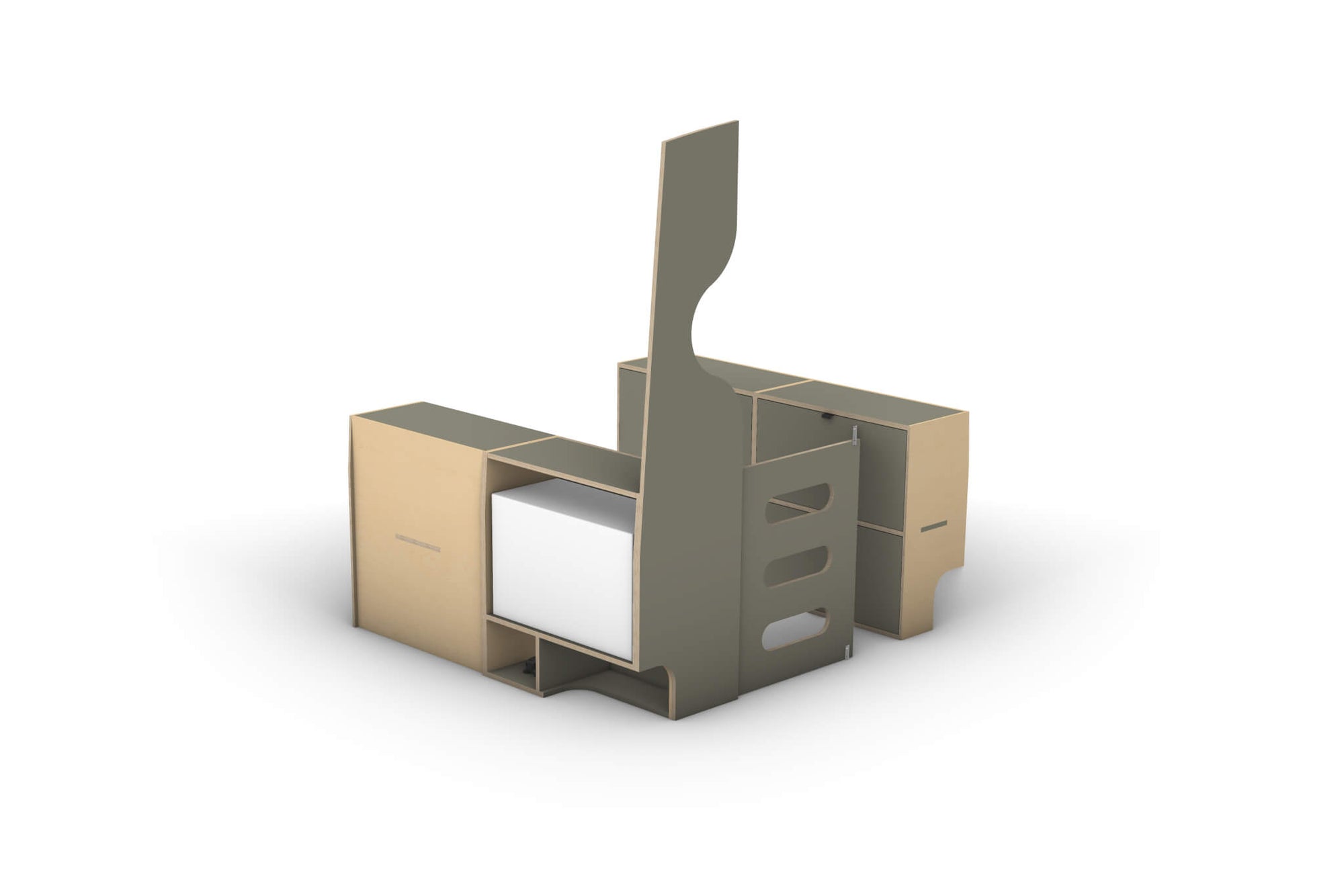

Convert your Ford Transit 148” EXT High Roof (2015+) into a fully featured camper with these detailed DIY plans and CNC-ready files. Designed specifically for the extended high roof platform, this layout maximises storage, functionality, and clear separation between living and utility zones. The fit-out includes a fixed bed with large rear garage, bedside storage, dedicated fridge unit positioned below the wardrobe, enclosed bathroom, kitchen unit with sink, single dinette seat with integrated storage and Lagun table mount, overhead cupboards throughout, and dedicated 100L water tank storage. Beyond the cabinetry, the download also includes CNC cut files and assemblies for… Read more
  • Skill Level:
    • Advanced
  • Units:

    • Millimetres (mm)
  • Pages:

    52-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining
  • CNC overview PDFs
  • Dimensioned drawings
  • 3D CAD Model (.STEP Format)
  • Overview of Hardware, Materials and Appliances required (Spreadsheet)
  • Cabinetry assembly drawings = 52 pages in PDF in total
  • Floor & Wall assembly drawings = 26 pages in PDF in total

What's Required:
  • Access to a CNC Router
  • Basic hand tools such as drill and driver for assembling
  • Rivnut tool for securing ply framing to bodywork
  • Pin gun / finishing nailer for assembling cabinetry
  • Jig saw and multitool (some scribing may be necessary)

Additional Information:
  • All plans are presented in English with measurements in millimeters (metric).
  • All sheet sizes are 1200mm x 2400mm (4’ x 8’ Ft)
  • Cabinetry constructed from 9 sheets of 12mm (½”) birch plywood and 10 sheets of 18mm (¾”) HPL plywood

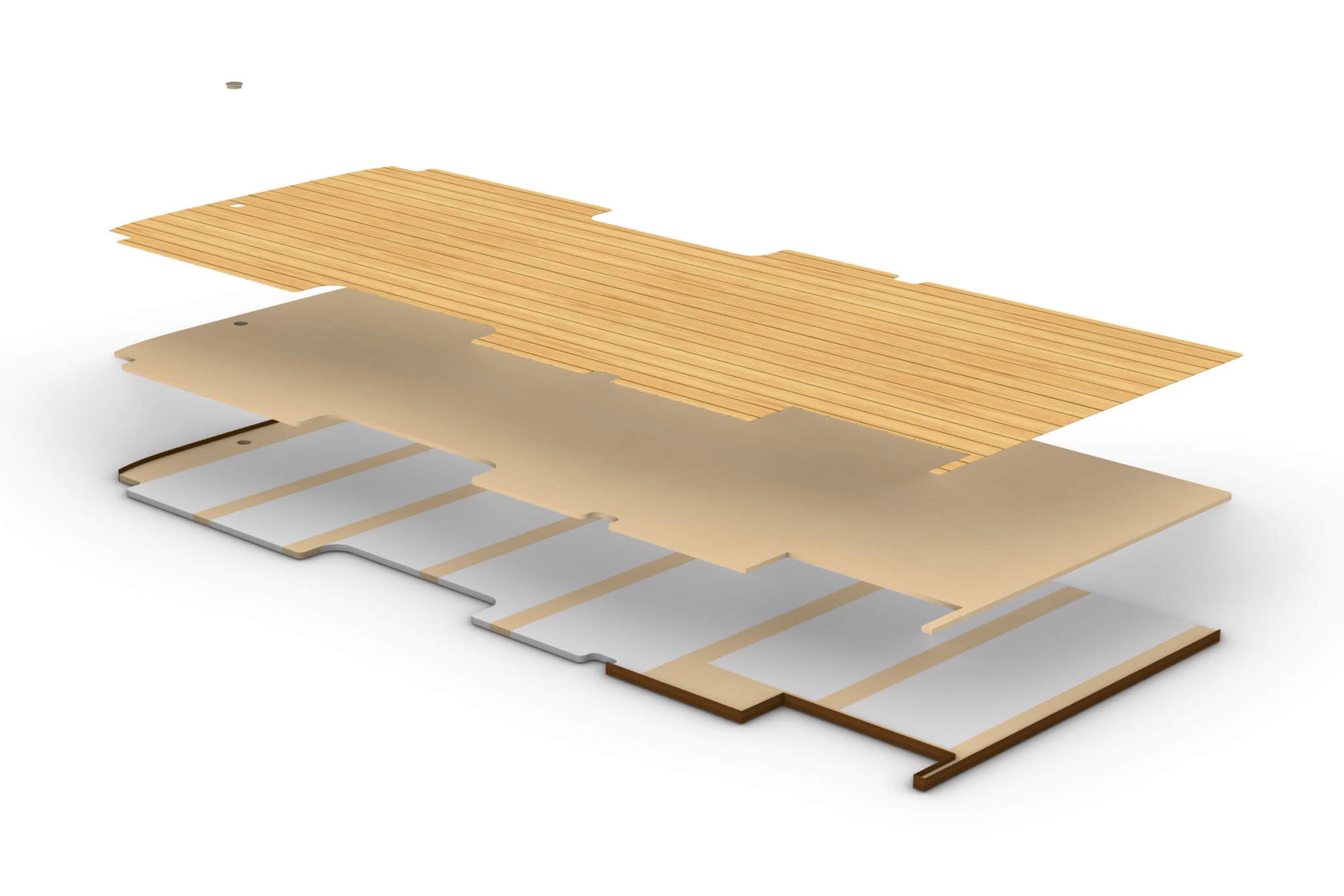

  • Floor constructed from 25mm (1”) thick Polyiso with Plywood support strips
  • Floor lining constructed from 15mm (⅝”) plywood.

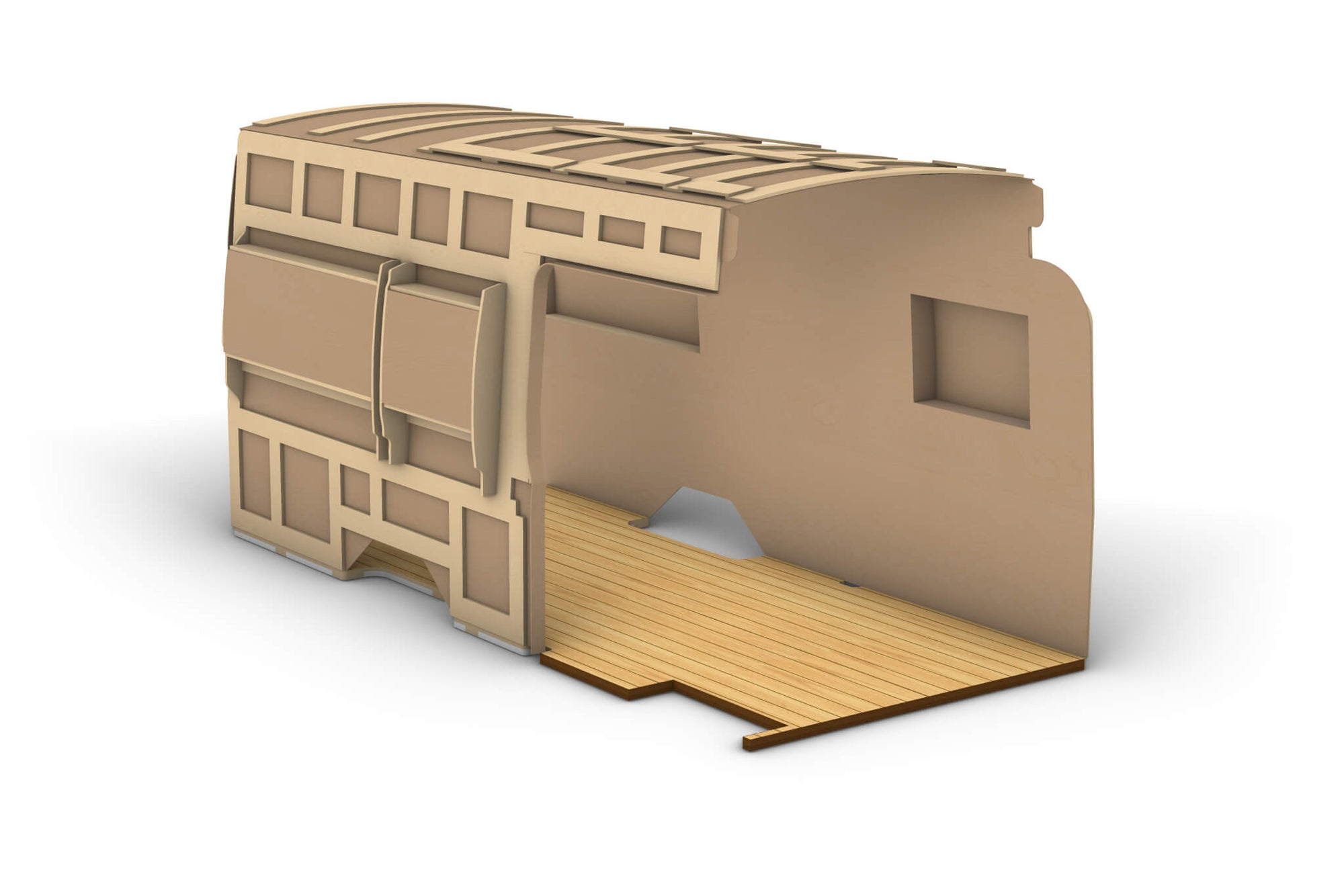

  • Wall, ceiling and door linings are constructed from 6mm (¼”) plywood.

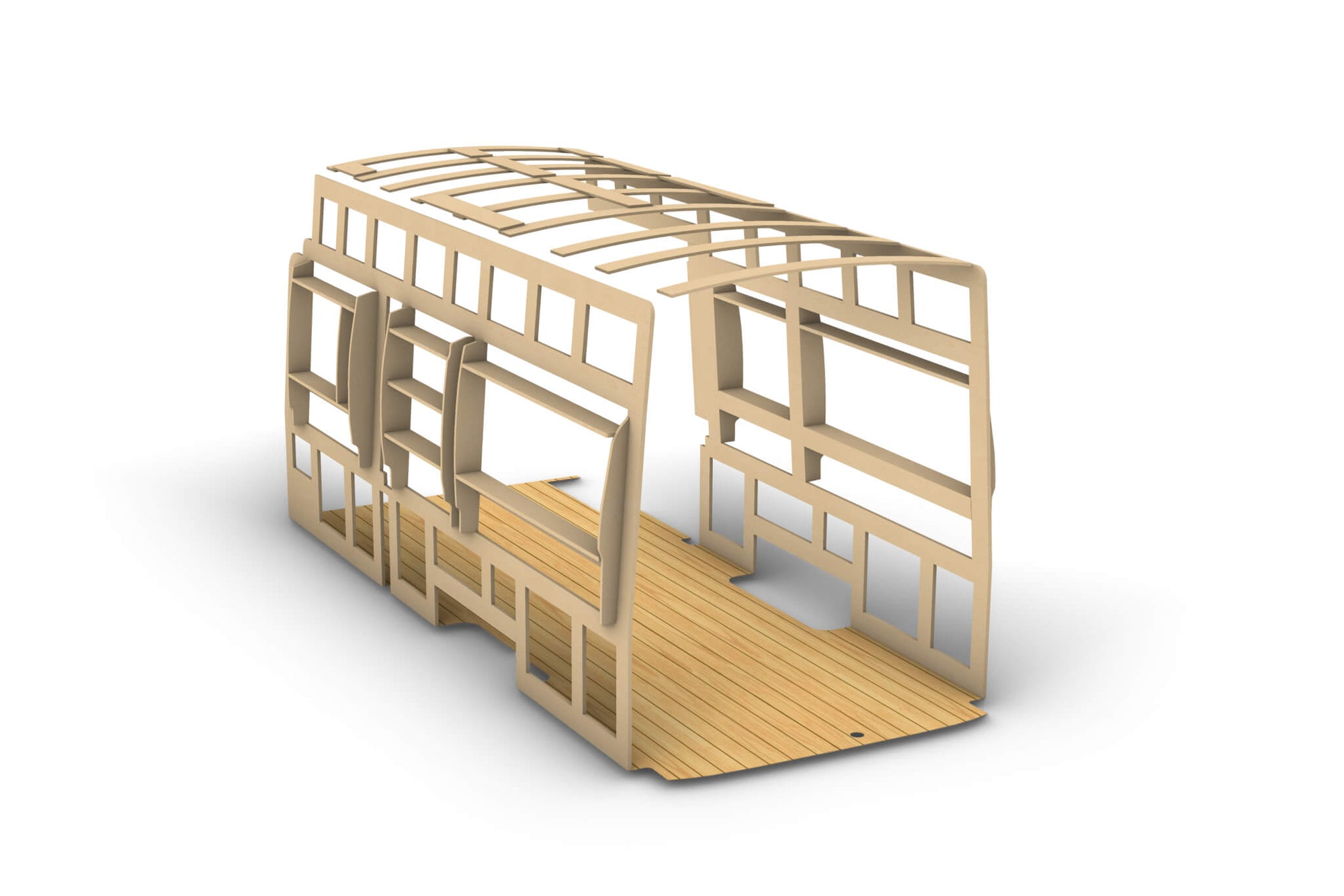

  • Framing is constructed from 4 sheets of 18mm (¾”) lightweight plywood.’
  • Designed to fit 148 EXT High Roof (US).
  • The CAD model is available in STEP format.
  • Plans do not include electrical or plumbing diagrams throughout the vehicle however allowance has been made within the design to integrate these items.
  • Mattress size = 1300mm x 1900mm
  • Overview of materials, hardware, and appliances included.
  • It is advisable to seal the plywood before installation.
  • Ensure units are securely fastened to the van.
  • This van fit out is for intermediate to experienced builders.

Please get in touch if you have any questions before committing to purchasing. I can send you a basic version of the plans along with hardware and materials overview to help with your decision.

Important:
This is a digital download. The product shown is a rendering not a physical product.

Disclaimer:
I am not affiliated with Ford Motor Company. This digital product is intended solely as a guide for individuals wishing to create their own van fit-out.

Copyright:
All digital plans provided by Cam Made Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
