Fiat Ducato L3H2 Camper Conversion Plans (LHD)

Prix régulier $250.00 NZD
Frais d'expédition calculés à l'étape de paiement.

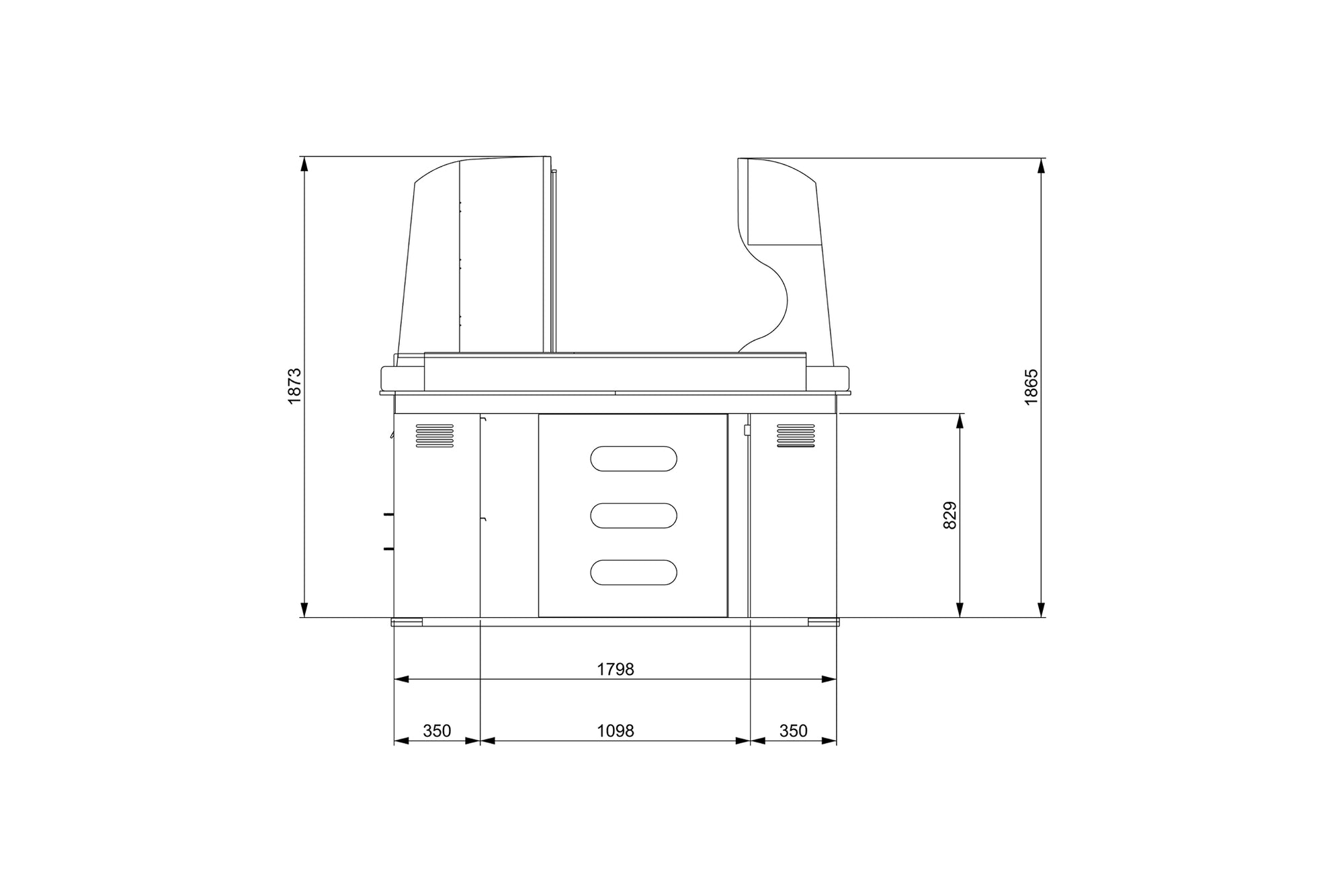

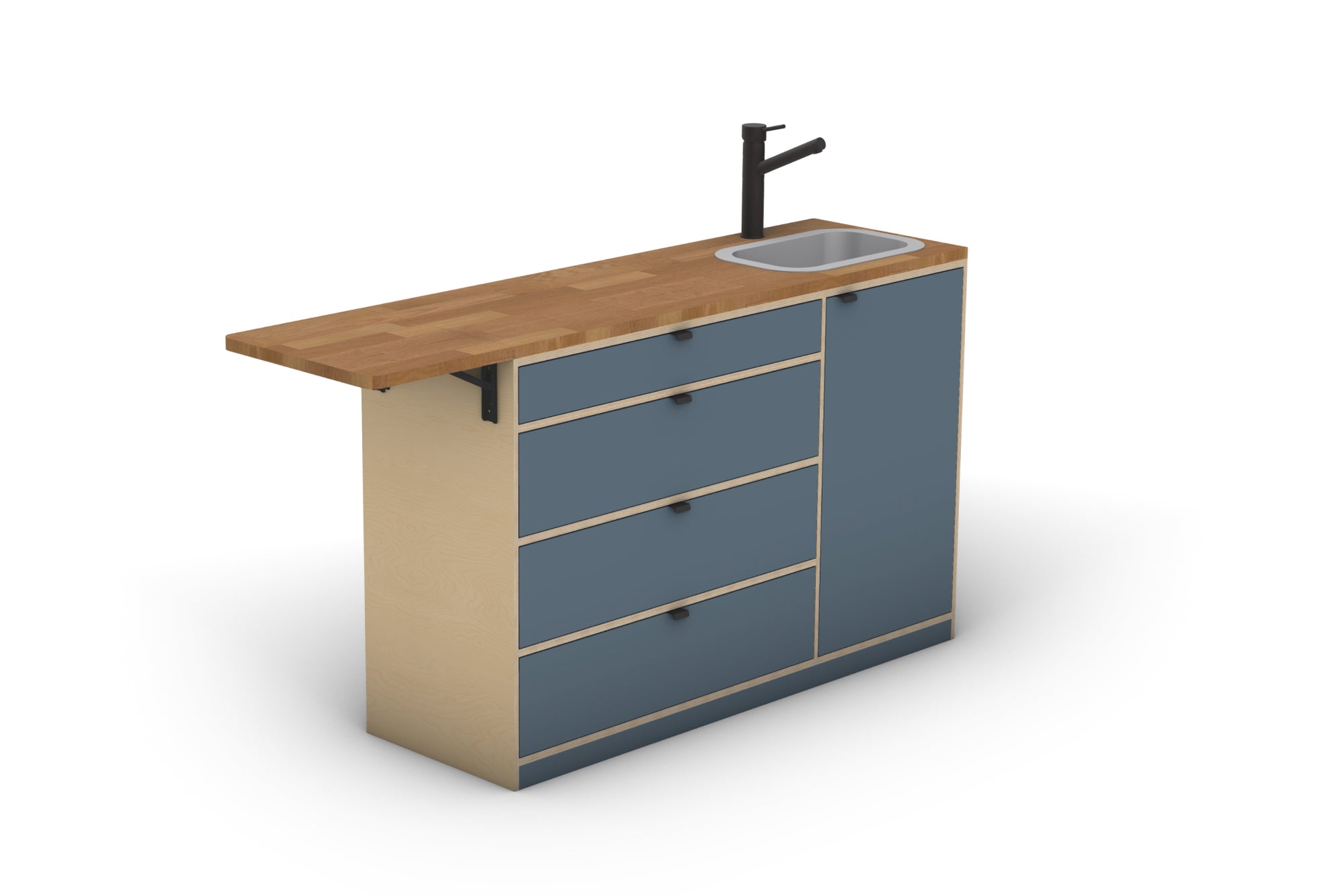

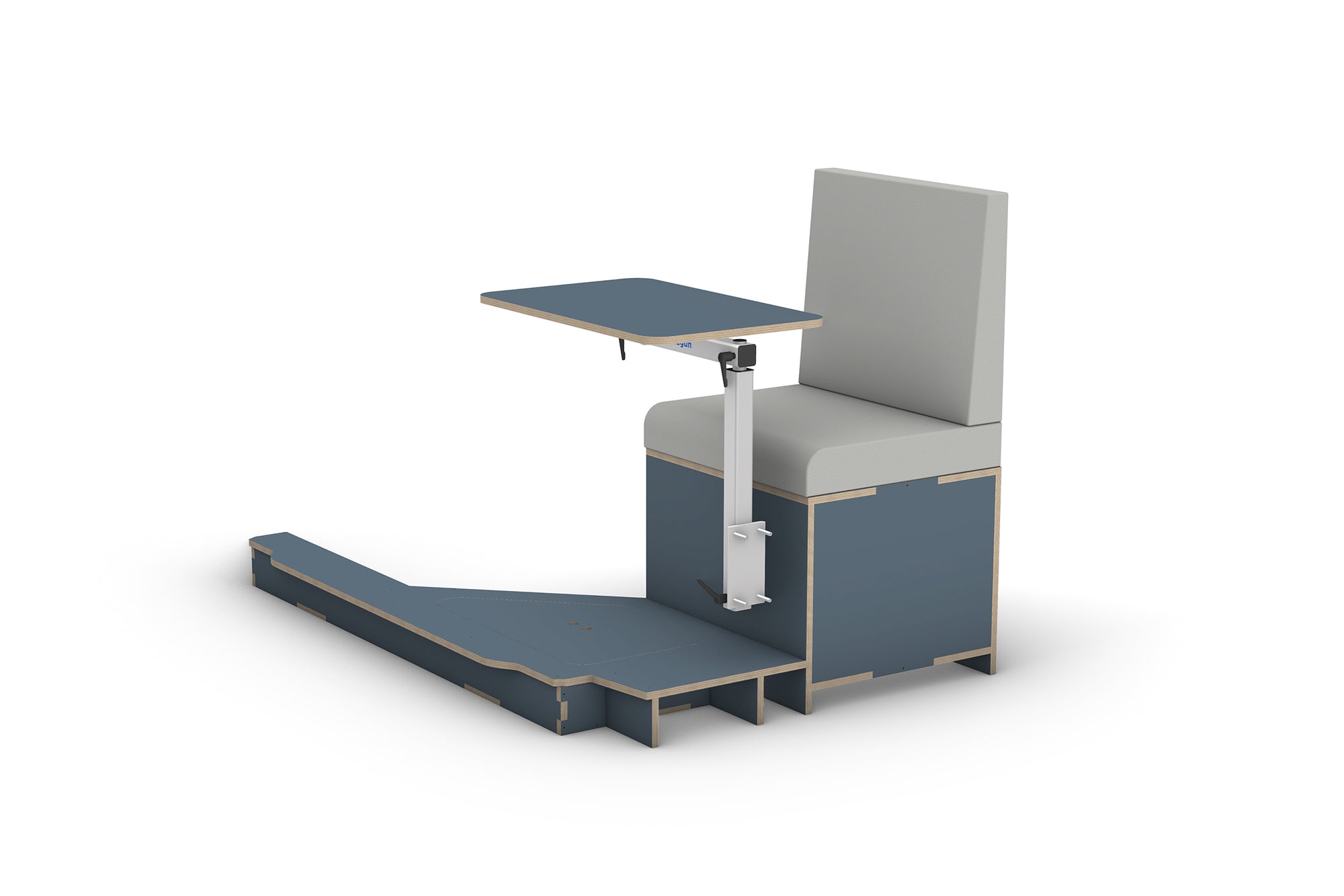

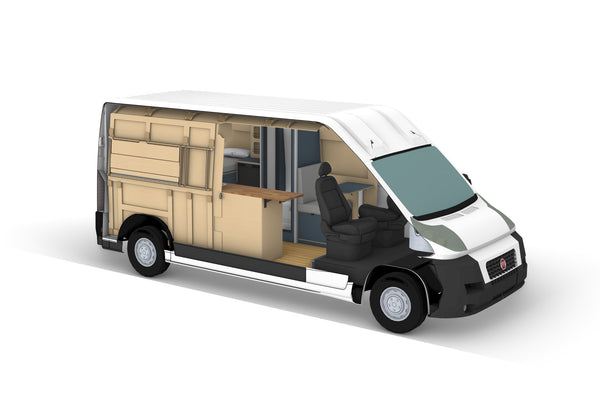

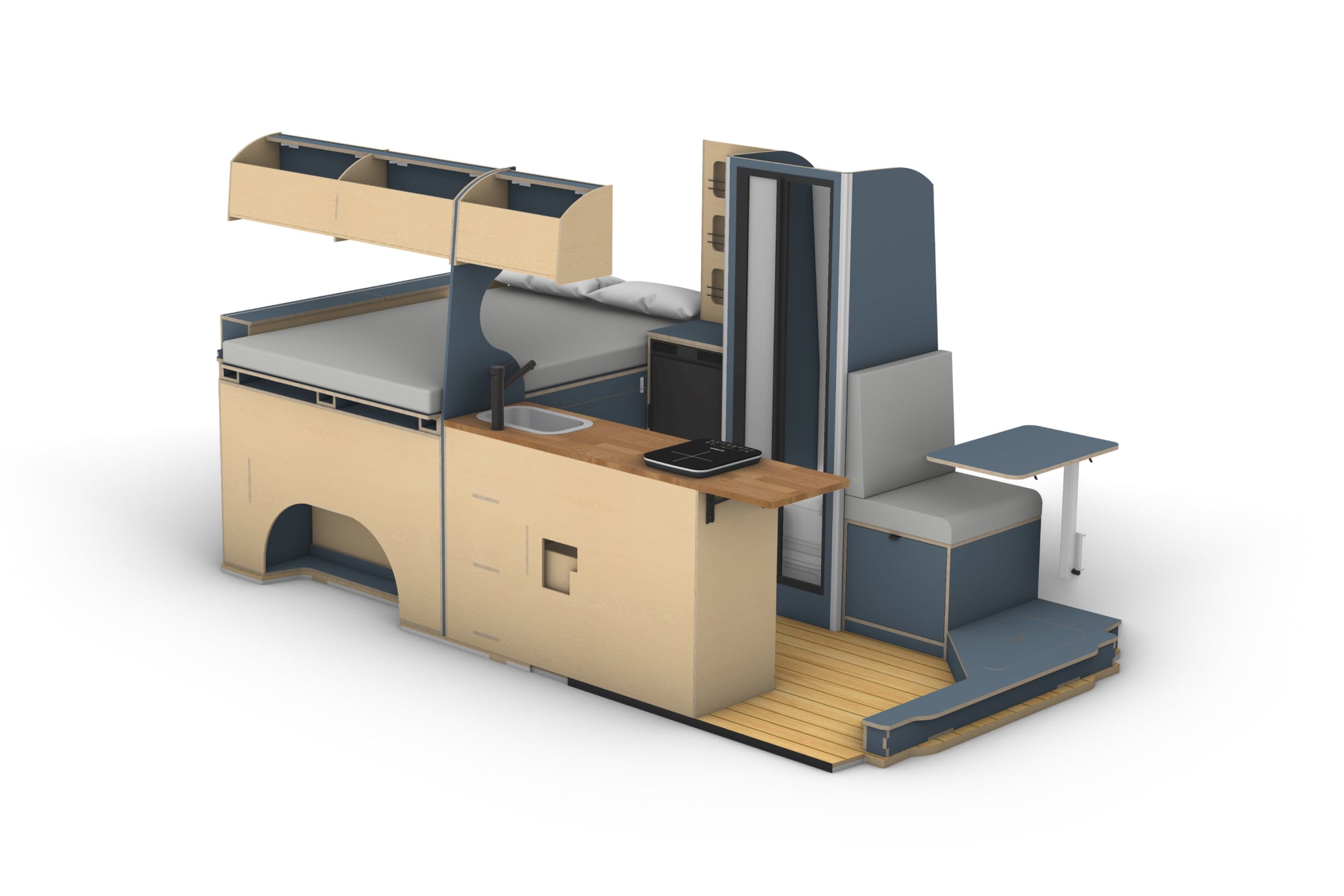

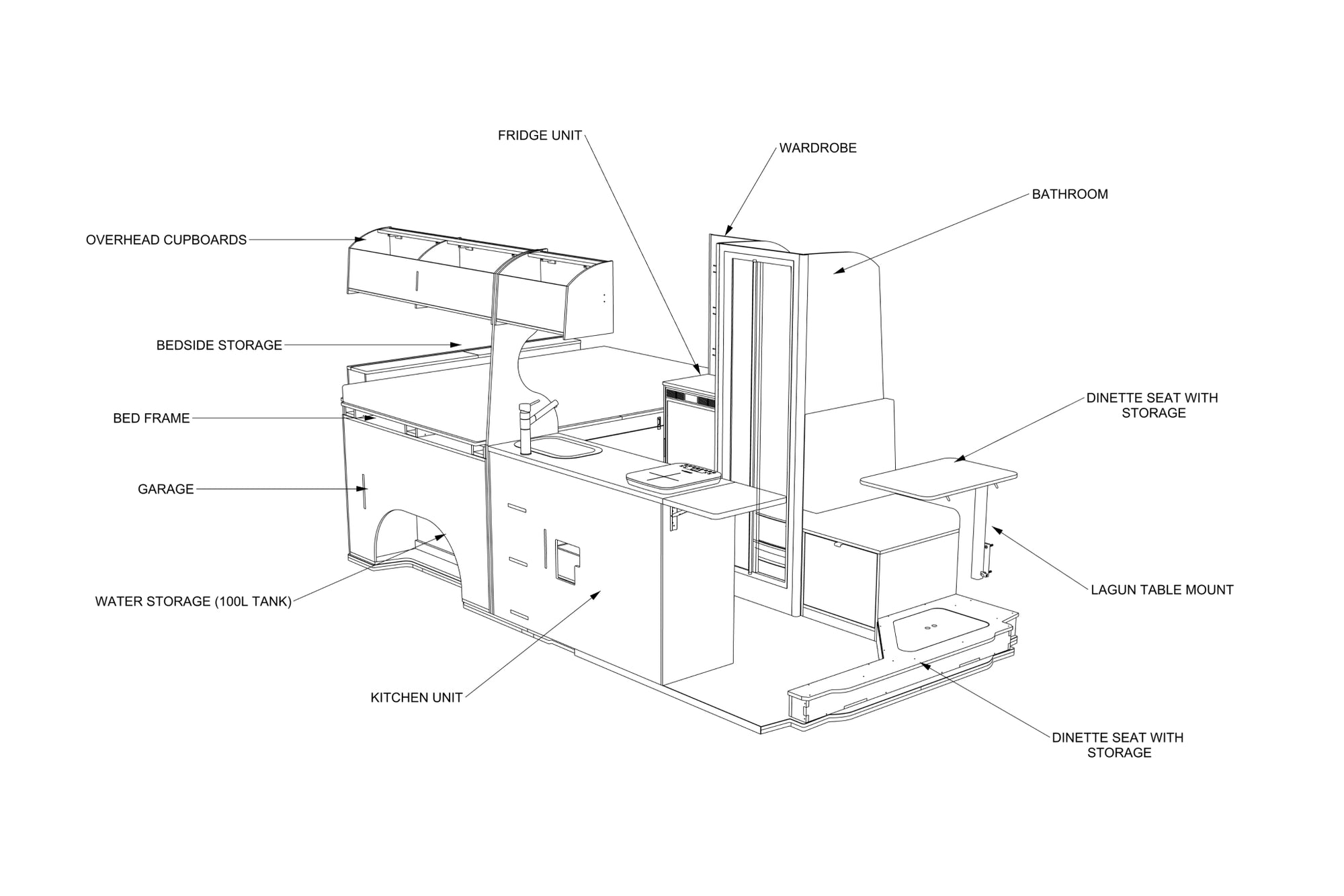

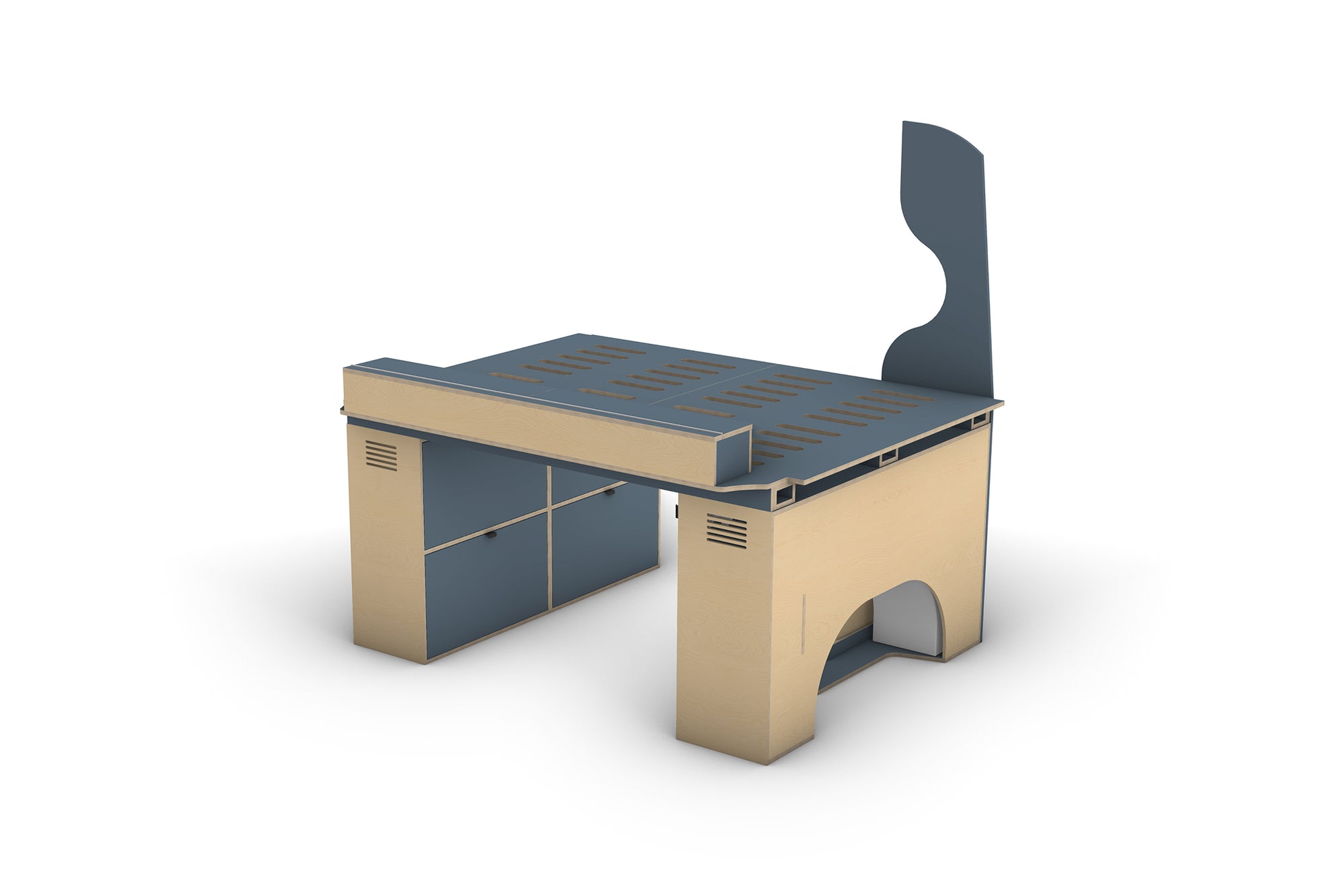

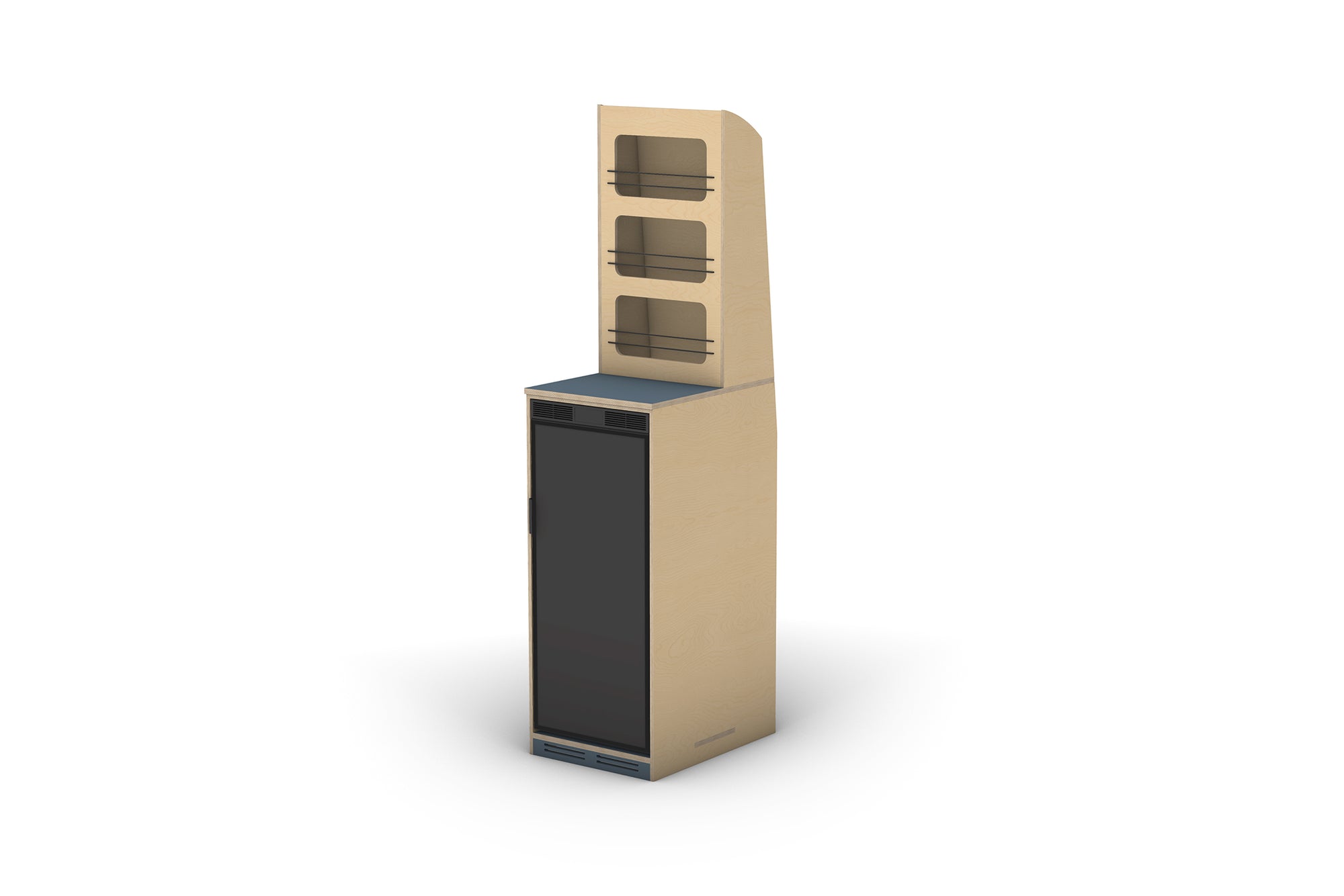

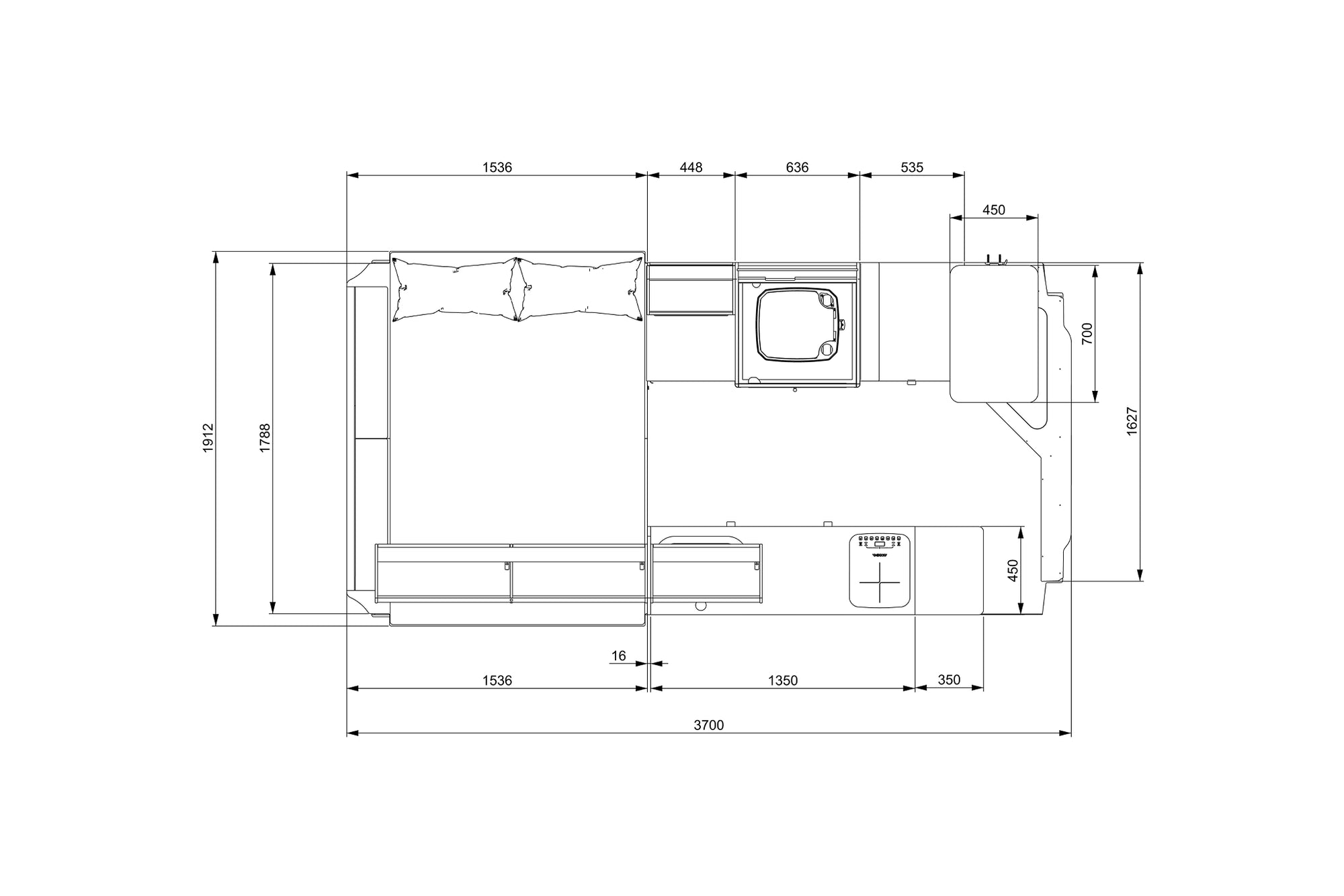

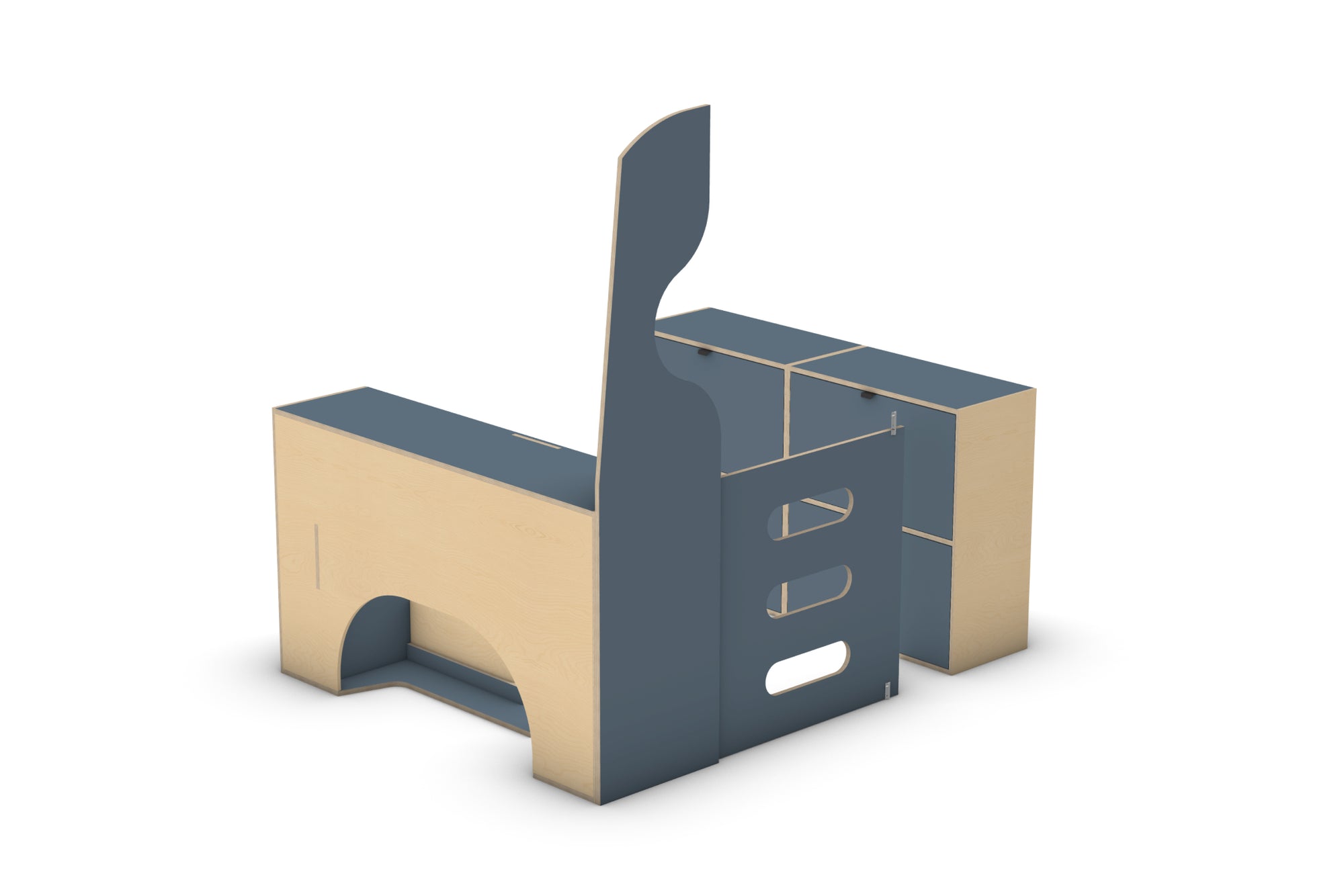

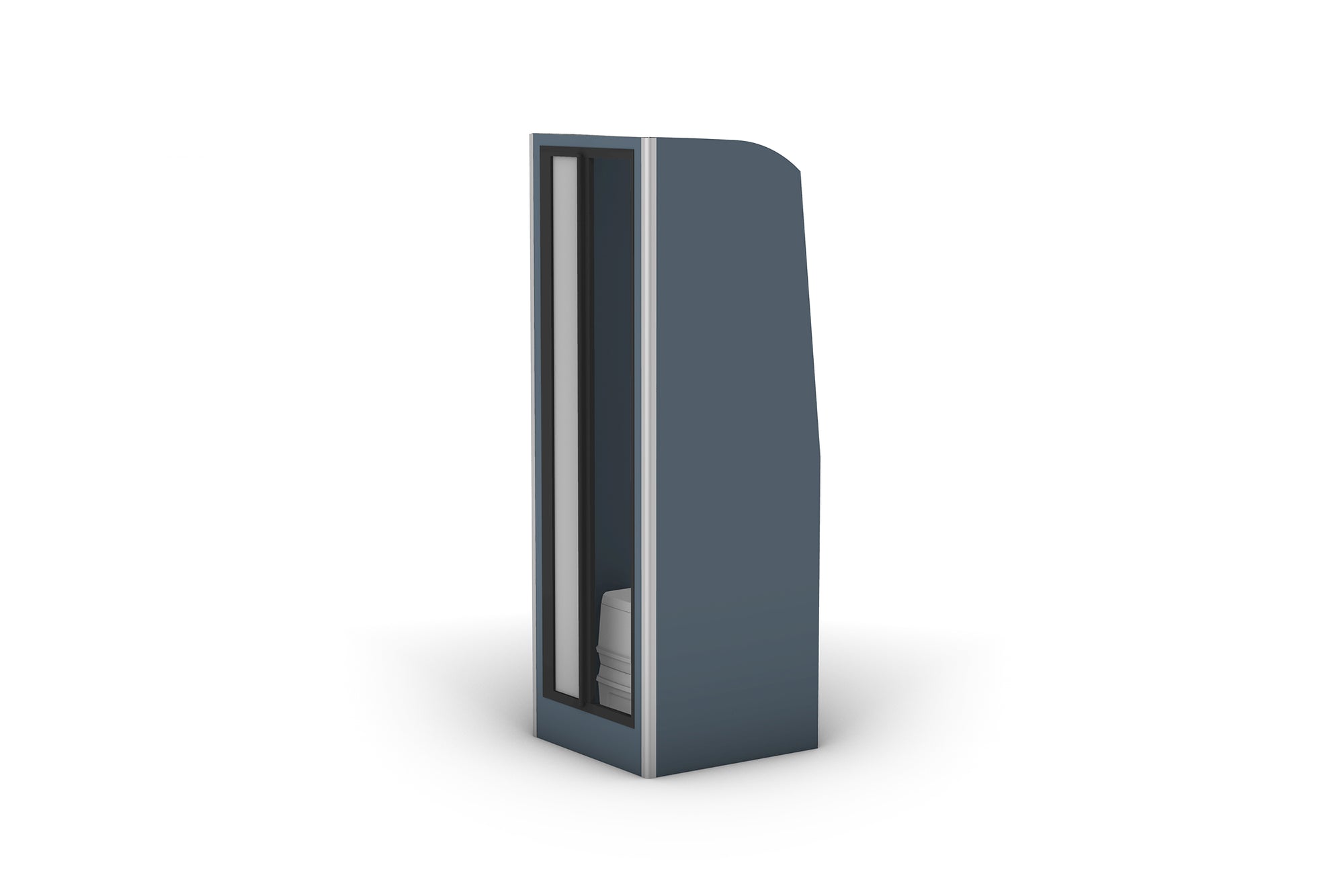

Convert your Fiat Ducato L3H2 (and equivalent platforms including the Peugeot Boxer, Citroën Relay/Jumper, and Ram ProMaster 159" Extended) into a fully featured campervan with these detailed DIY plans and CNC-ready files. Designed specifically for the long wheelbase high roof platform, this layout maximises storage, functionality, and comfortable separation between living and utility zones. The fit-out includes a fixed rear bed with large garage storage underneath, bedside storage, dedicated fridge unit positioned below the wardrobe, enclosed bathroom, full kitchen unit with sink, single dinette seat with integrated storage and Lagun table mount, overhead cupboards throughout, and dedicated 100L water tank… En savoir plus
  • Niveau de compétence :
    • Intermediate
  • Unités :

    • Millimetres (mm)
  • Pages :

    83-Page PDF

Inclus :

Ce qui est requis :
  • Access to a CNC Router
  • Basic hand tools such as drill and driver for assembling
  • Rivnut tool for securing ply framing to bodywork
  • Pin gun / finishing nailer for assembling cabinetry
  • Jig saw and multitool (some scribing may be necessary)

Informations complémentaires :
  • All plans are presented in English with measurements in millimeters (metric).
  • All sheet sizes are 1220mm x 2440mm (4’ x 8’ Ft)
  • Cabinetry constructed from 6 sheets of 12mm (½”) birch plywood and 9 sheets of 16mm (5/8”) HPL plywood

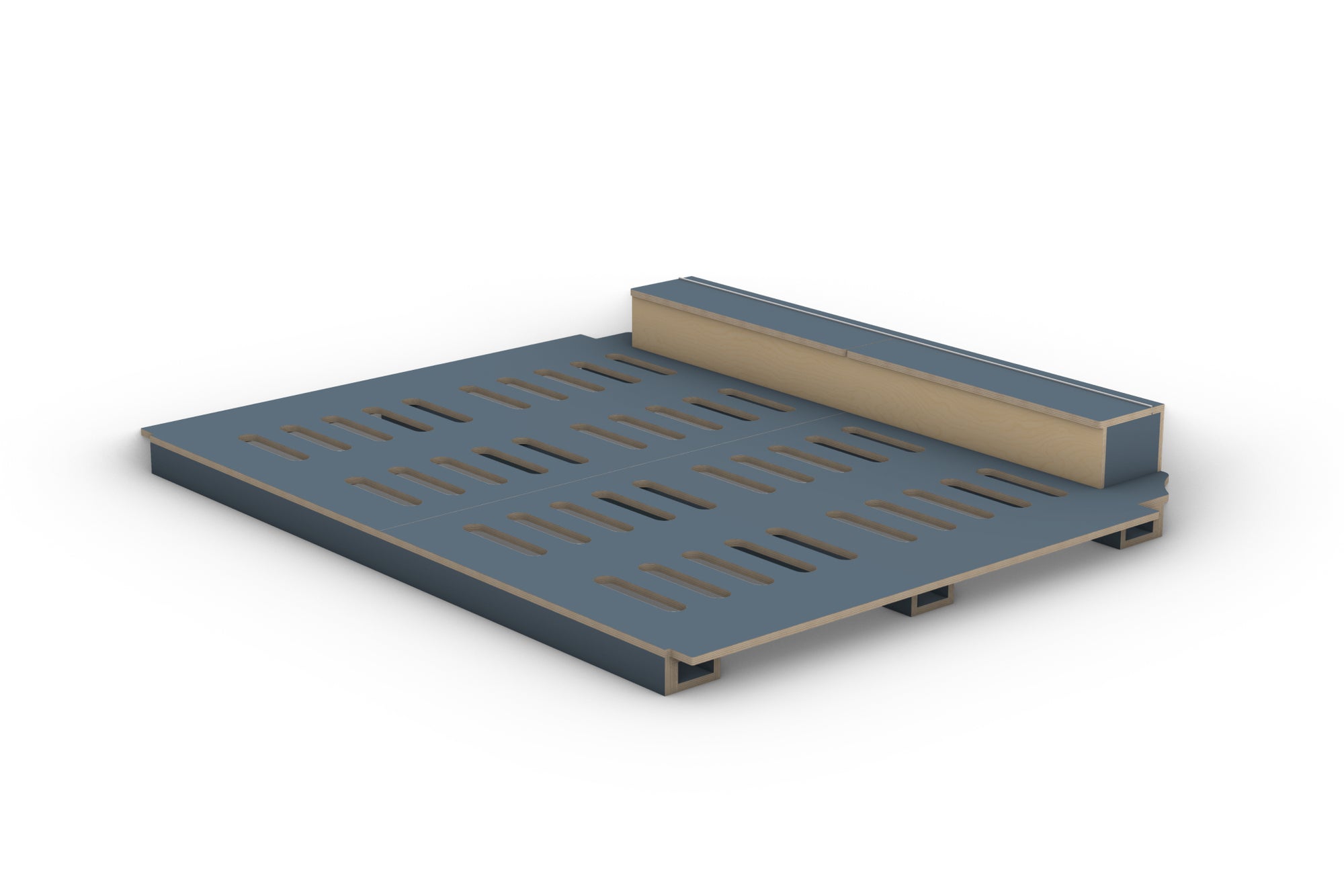

  • Floor constructed from 19mm (3/4”) thick Polyiso with Plywood support strips
  • Floor lining constructed from 15mm (⅝”) plywood.

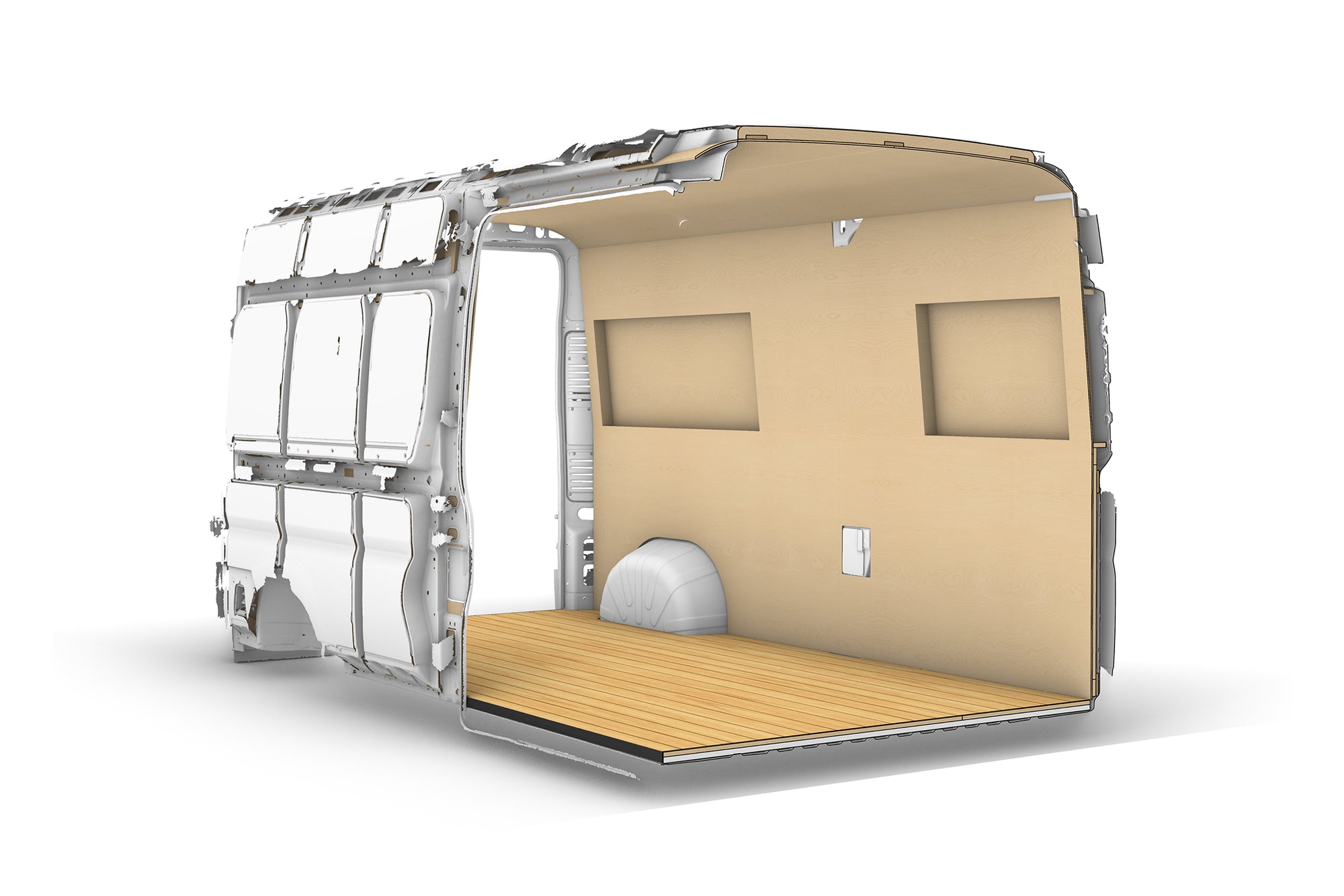

  • Wall, ceiling and door linings are constructed from 4 - 6mm (¼”) plywood.

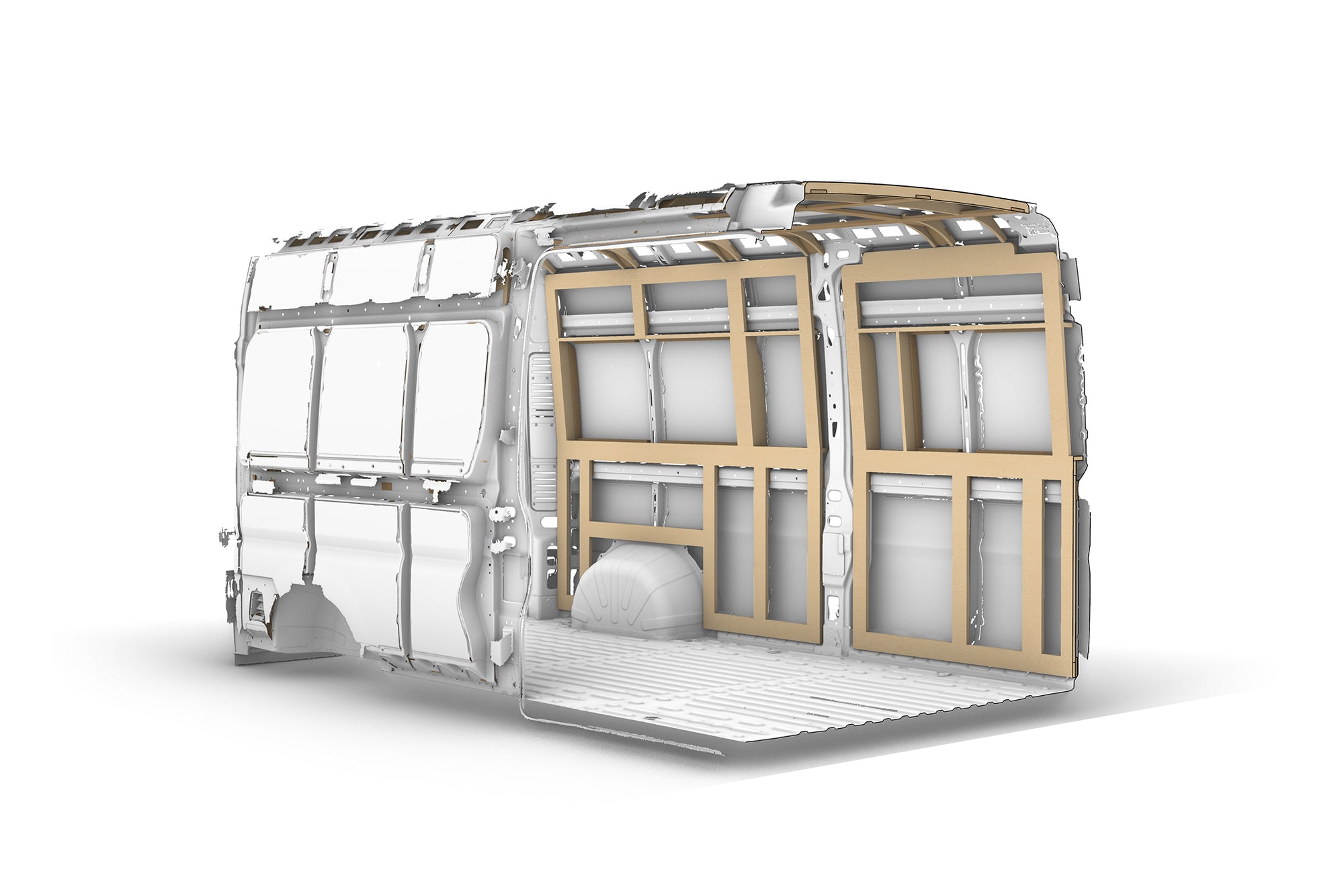

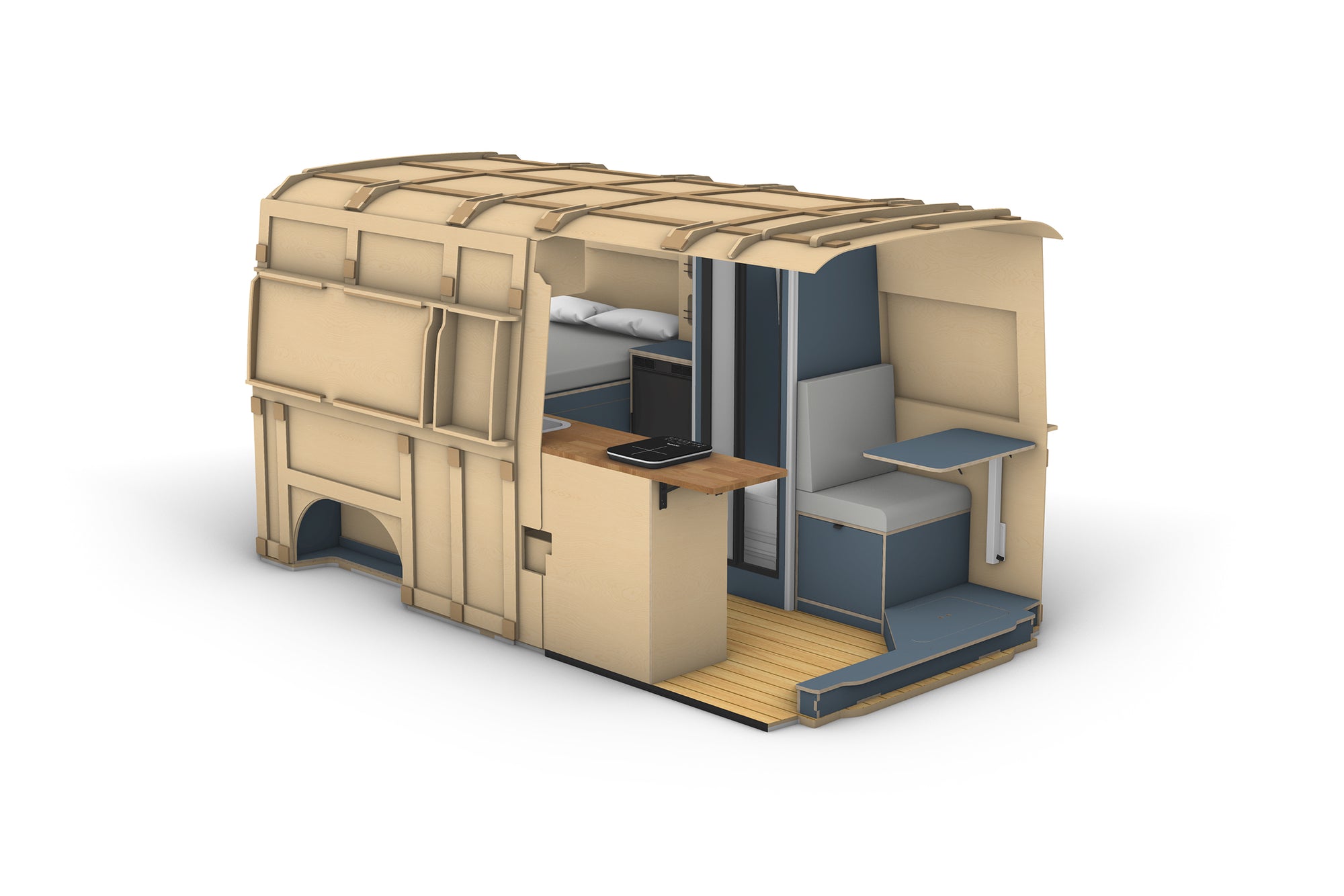

  • Framing is constructed from 2.5 sheets of 18mm (¾”) lightweight plywood.’
  • Designed to fit Fiat Ducato L3H2 / Peugeot Boxer L3H2 / Citroën Relay L3H2 / Ram ProMaster 159" High Roof
  • The CAD model is available in STEP format.
  • Plans do not include electrical or plumbing diagrams throughout the vehicle however allowance has been made within the design to integrate these items.
  • Mattress size = 1300mm x 1900mm
  • Overview of materials, hardware, and appliances included.
  • It is advisable to seal the plywood before installation.
  • Ensure units are securely fastened to the van.
  • This van fit out is for intermediate to experienced builders.

Please get in touch if you have any questions before committing to purchasing. I can send you a basic version of the plans along with hardware and materials overview to help with your decision.

Important:

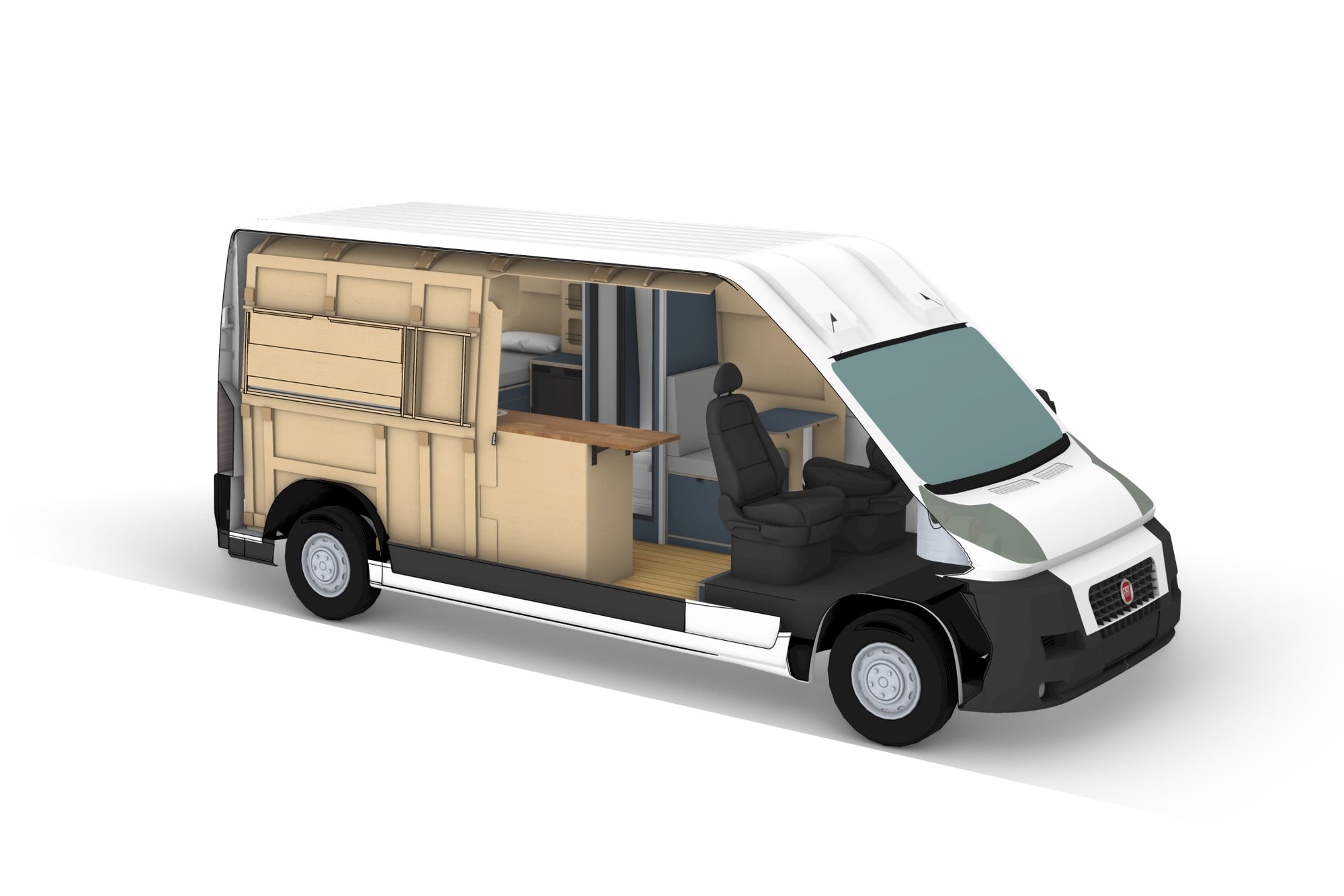

This is a digital download. The product shown is a rendering not a physical product.


Disclaimer:

I am not affiliated with Fiat, Peugeot, Citroën, Ram, or any associated manufacturers. This digital product is provided solely as a guide for individuals wishing to create their own campervan fit-out.

Copyright:

All digital plans provided by Cam Made Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

FAQ

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
