Tacoma 6ft Truck Bed Camper Plans

Normaler Preis $40.00 NZD
Versand wird beim Checkout berechnet

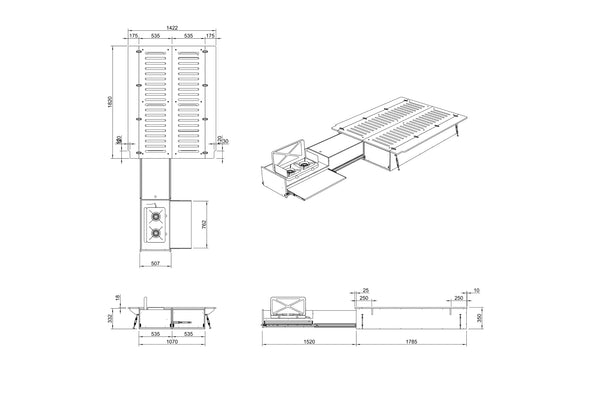

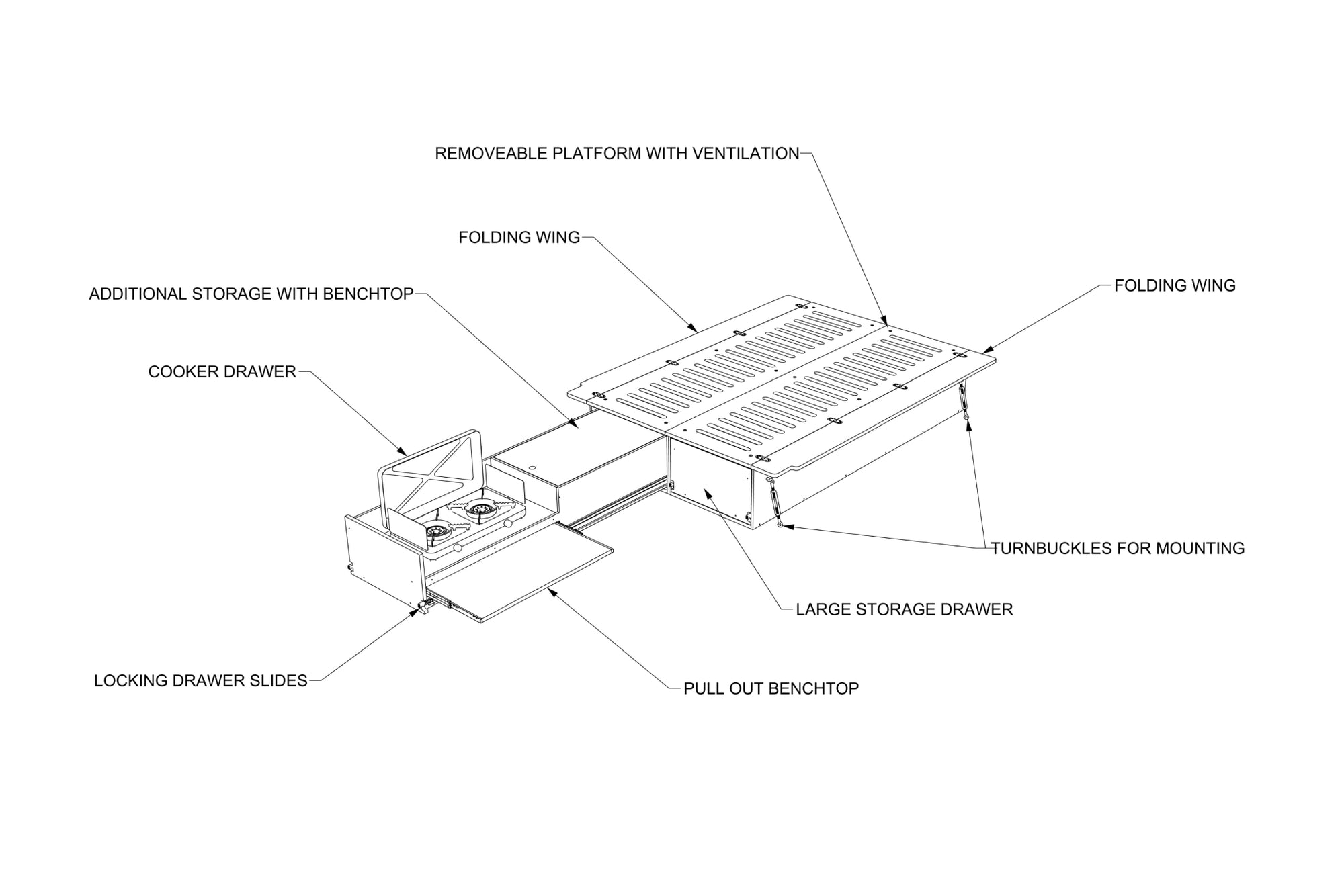

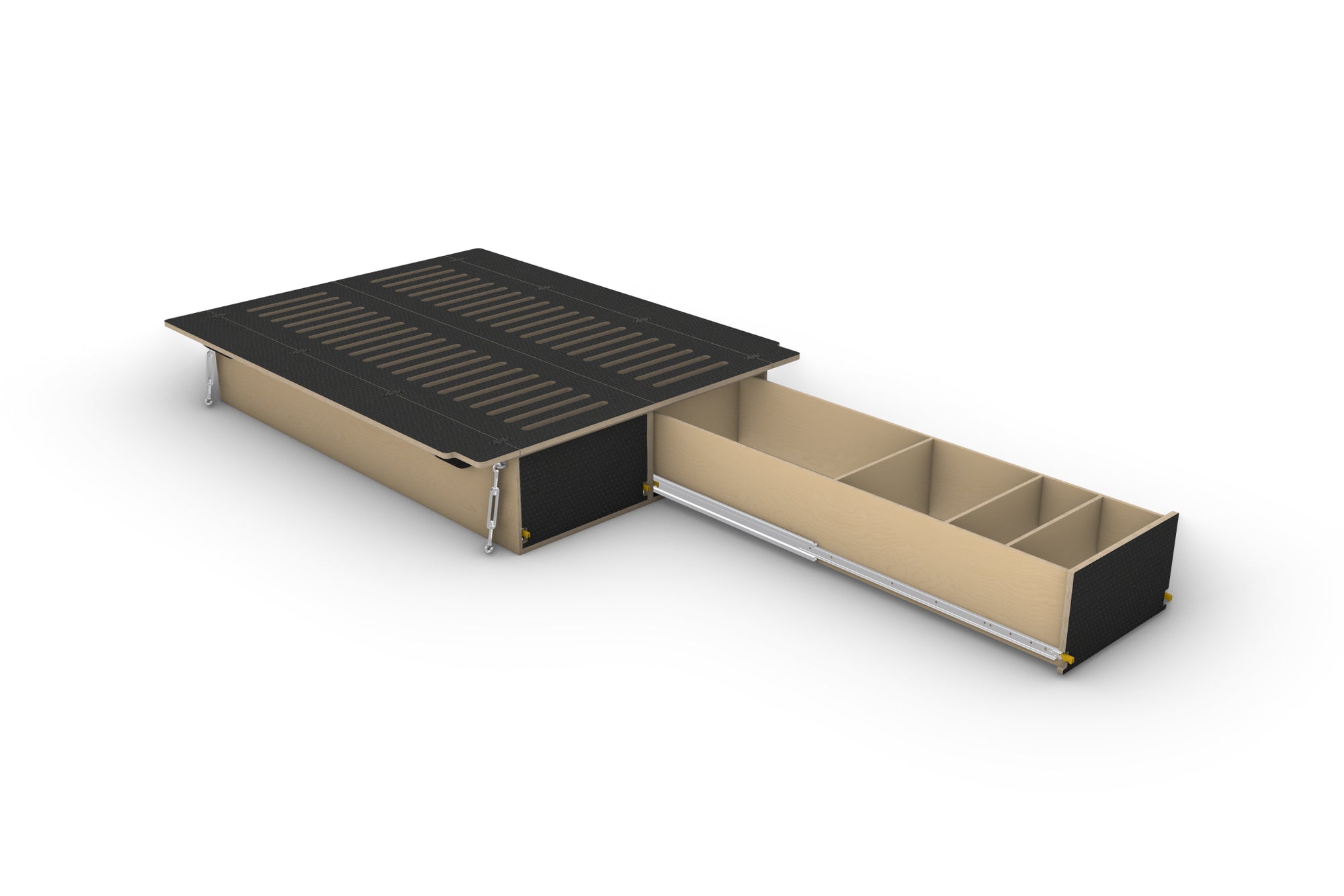

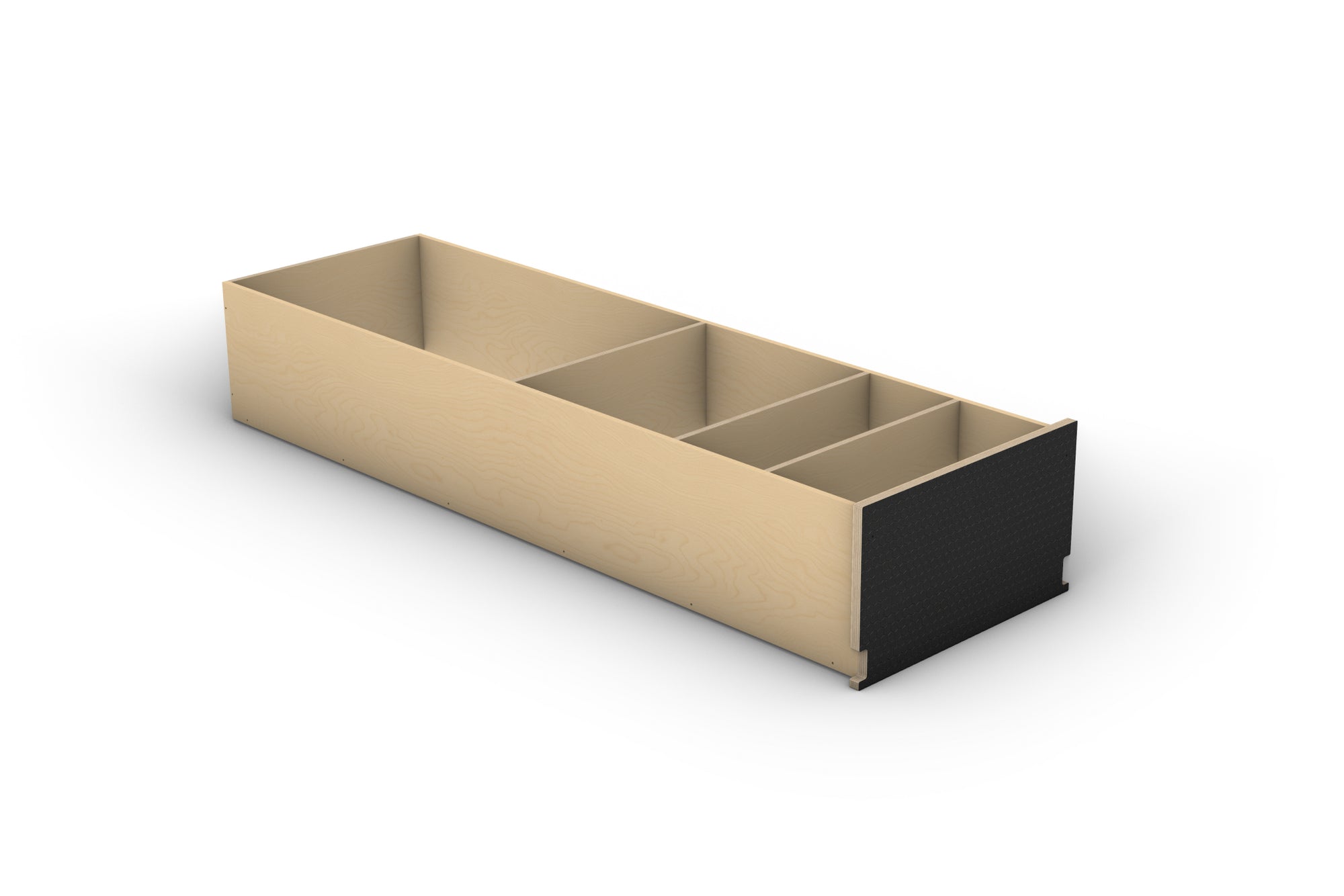

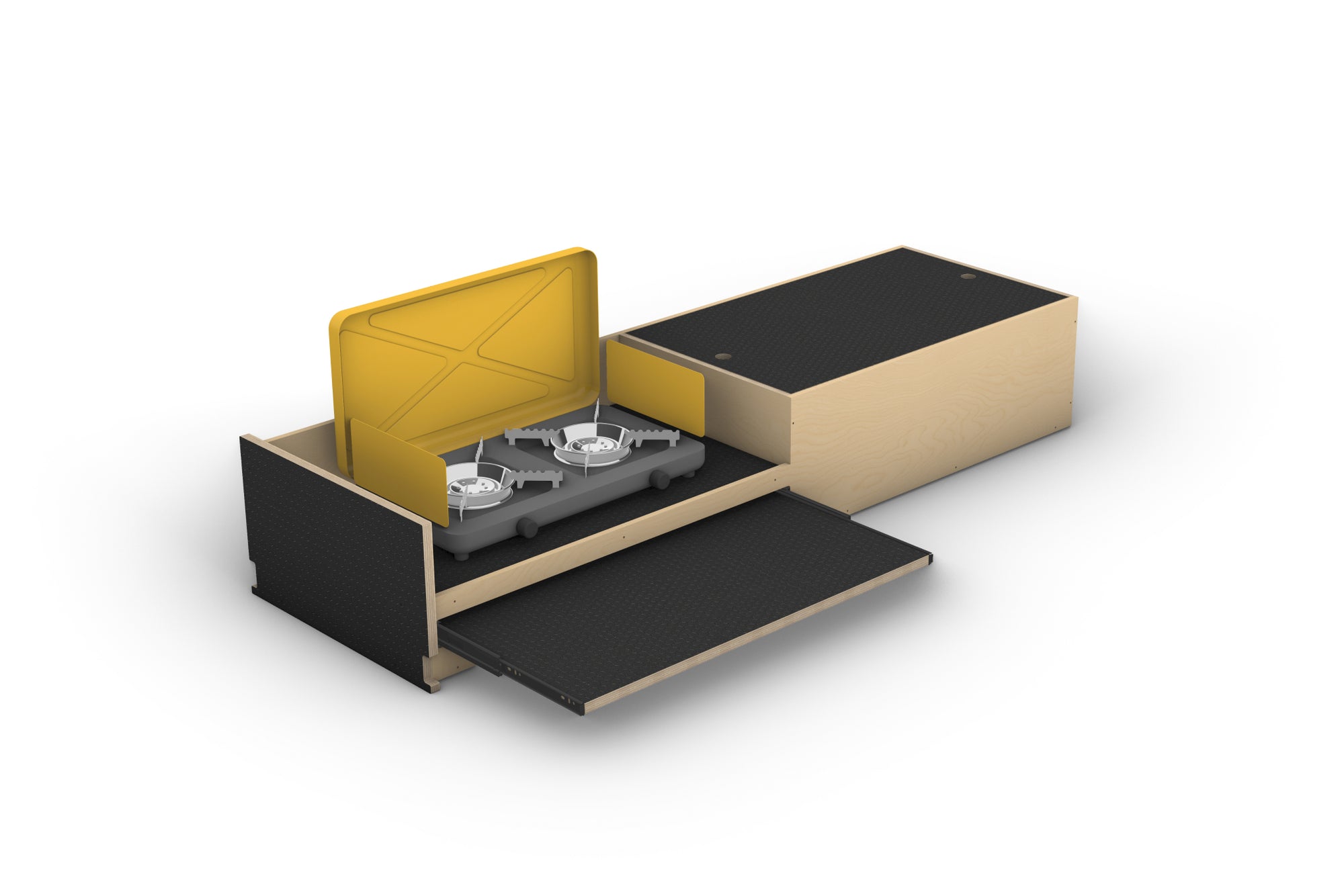

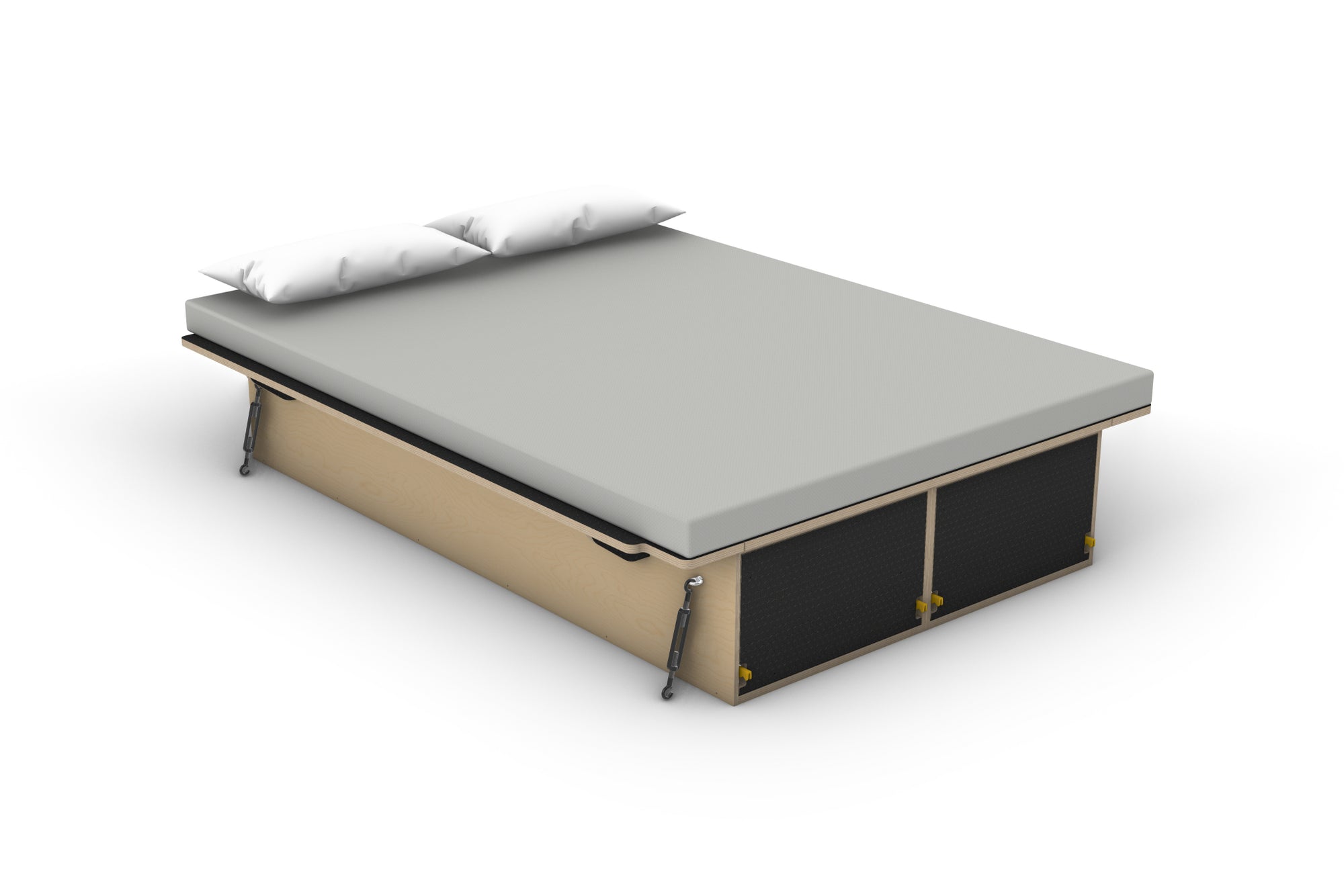

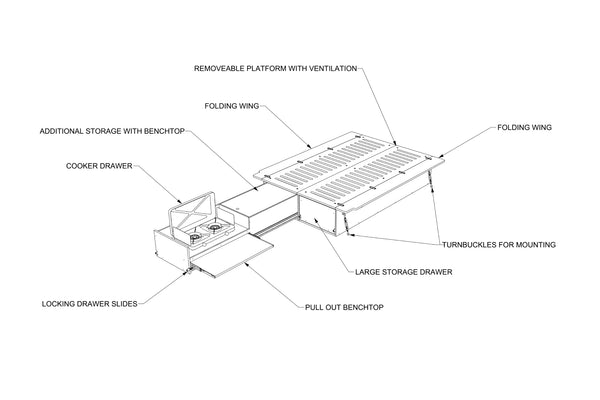

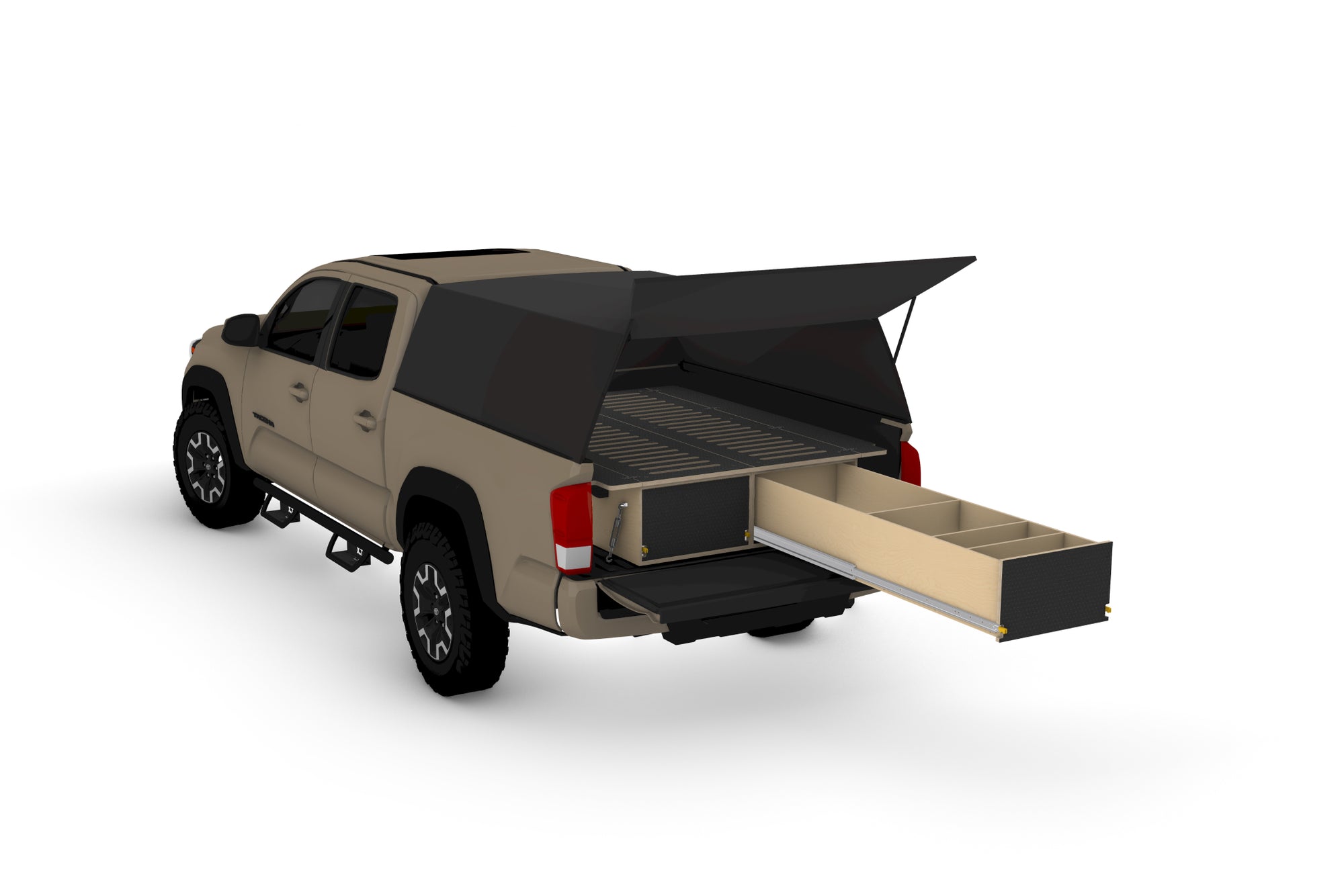

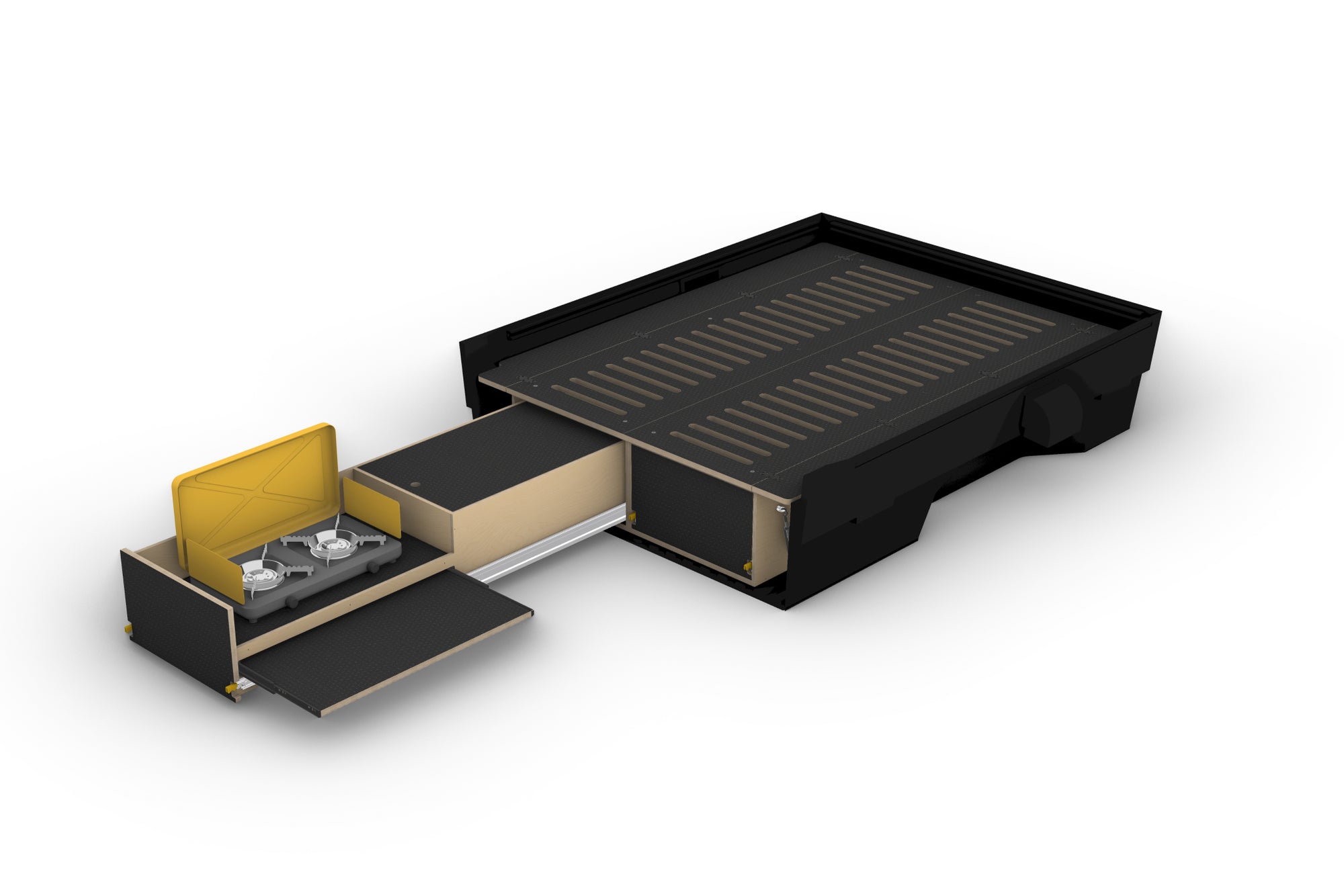

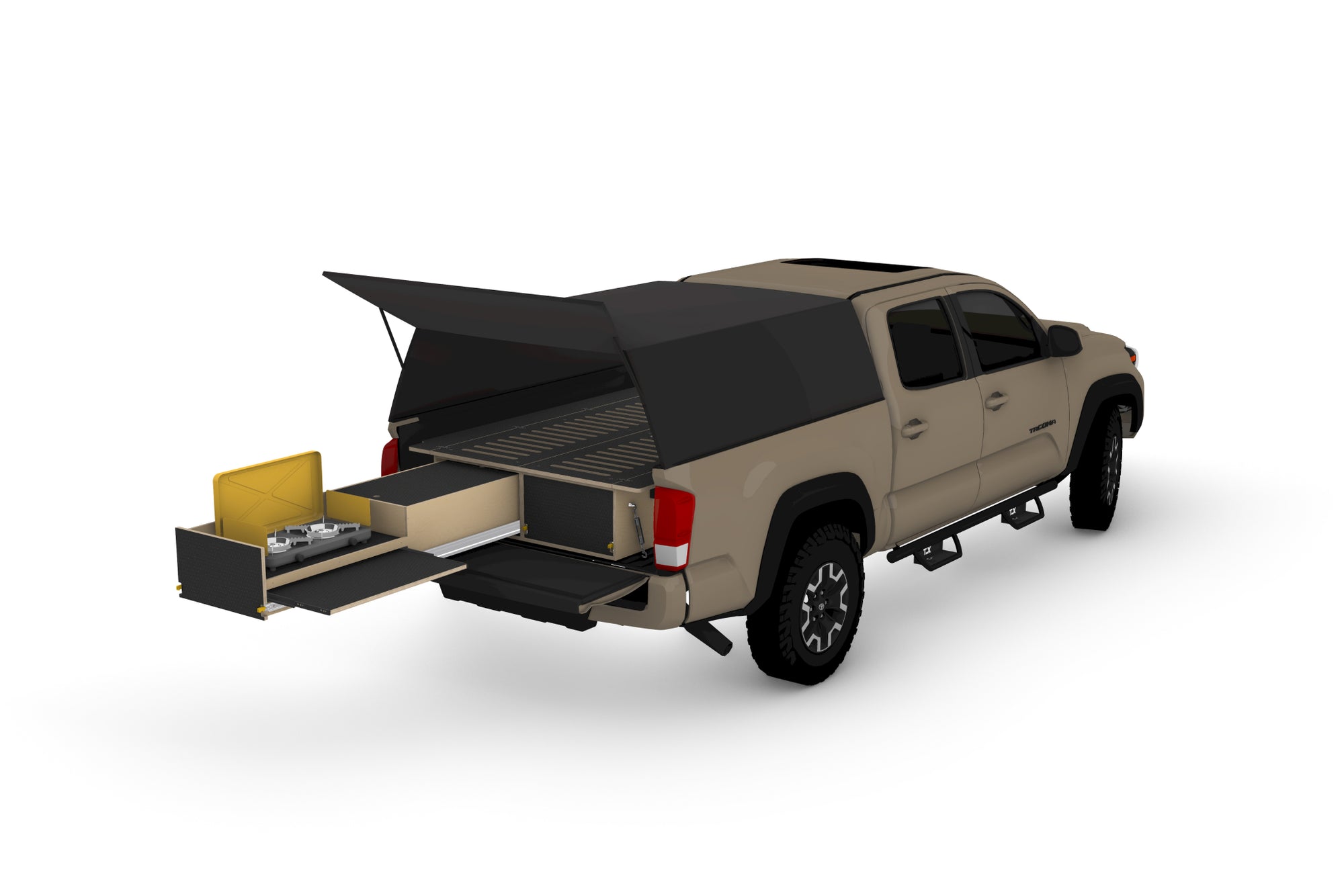

Transform your 6 ft Toyota Tacoma truck bed into a practical, adventure-ready camping setup with this modular storage and sleeping platform. This 48-page PDF includes step-by-step assembly instructions, fully dimensioned drawings for both CNC and manual cutting, and a 3D CAD model for easy customization. Designed specifically for the 6 ft Toyota Tacoma bed, the system features a full-width pull-out storage drawer, a dedicated pull-out kitchen with additional storage, and folding side wings that maximise the available sleeping platform. The modular design allows the entire system to be removed from the truck when not needed, while the top panels and… Weiterlesen
  • Fähigkeitsstufe:
    • Intermediate
  • Seiten:

    49-Page PDF

Lieferumfang:
  • Dimensioned parts for manual cutting

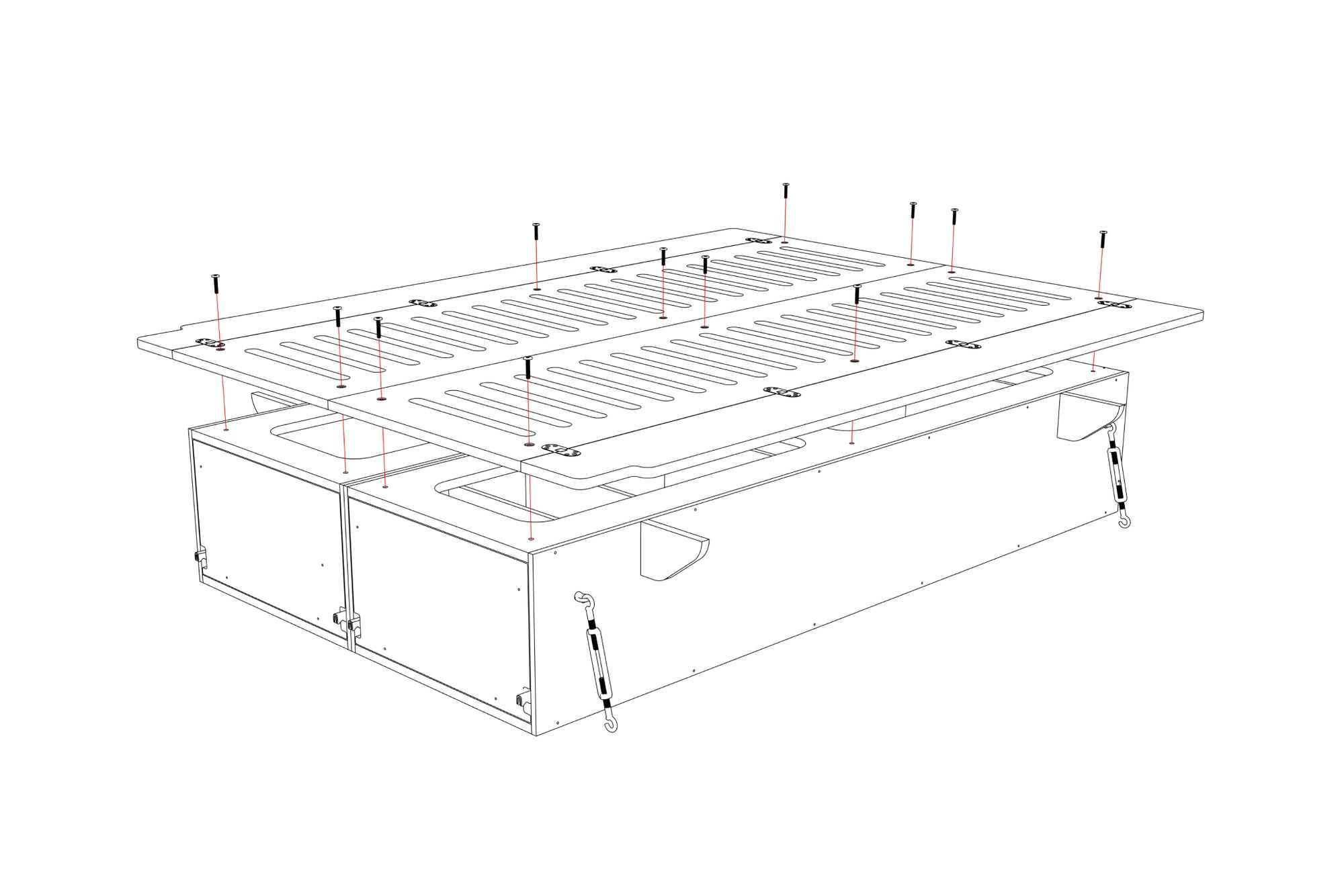

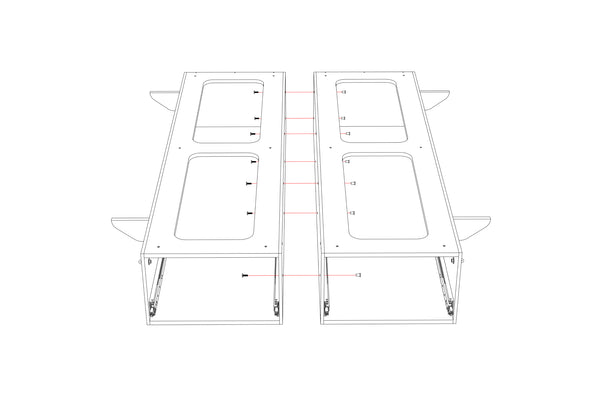

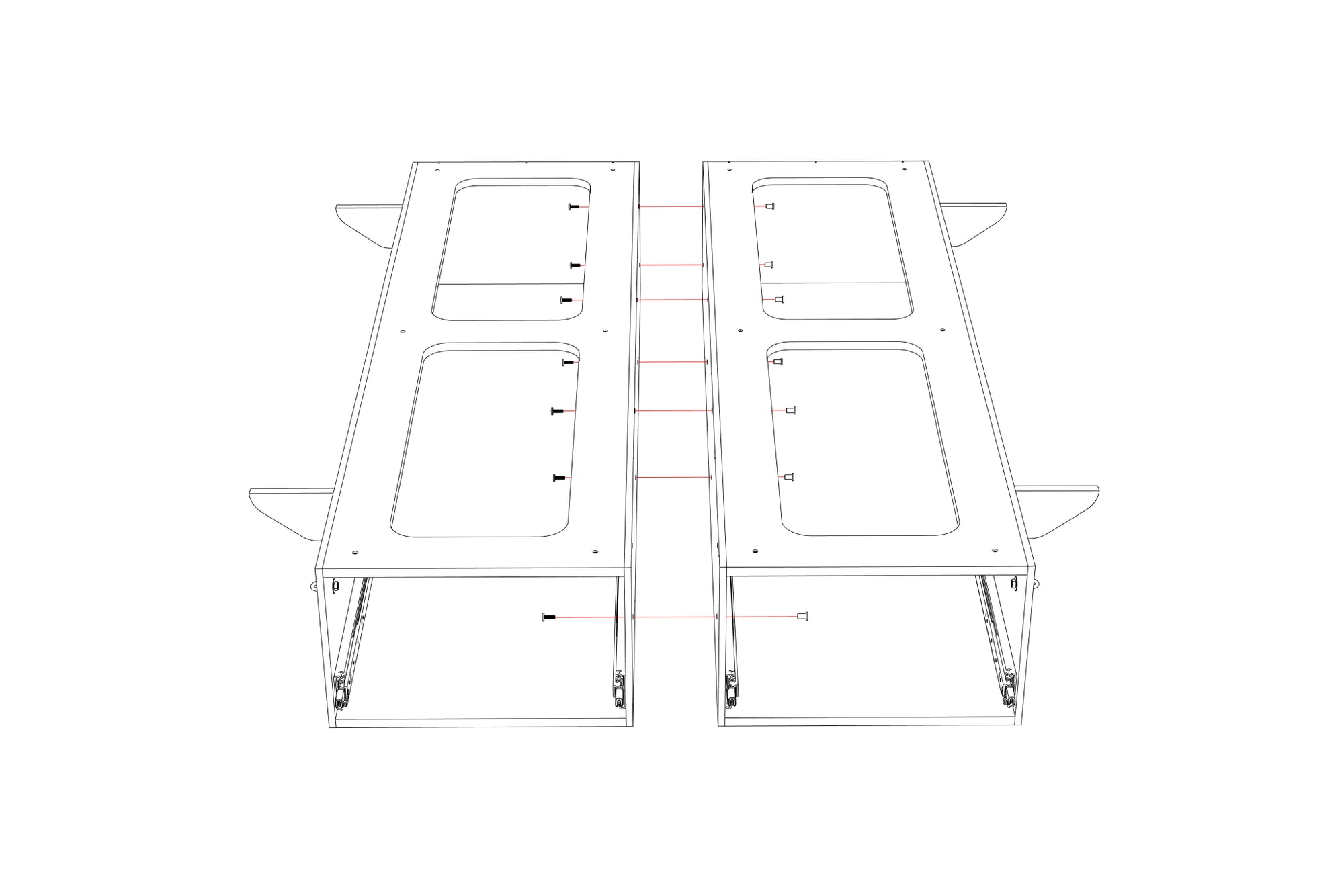

  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining

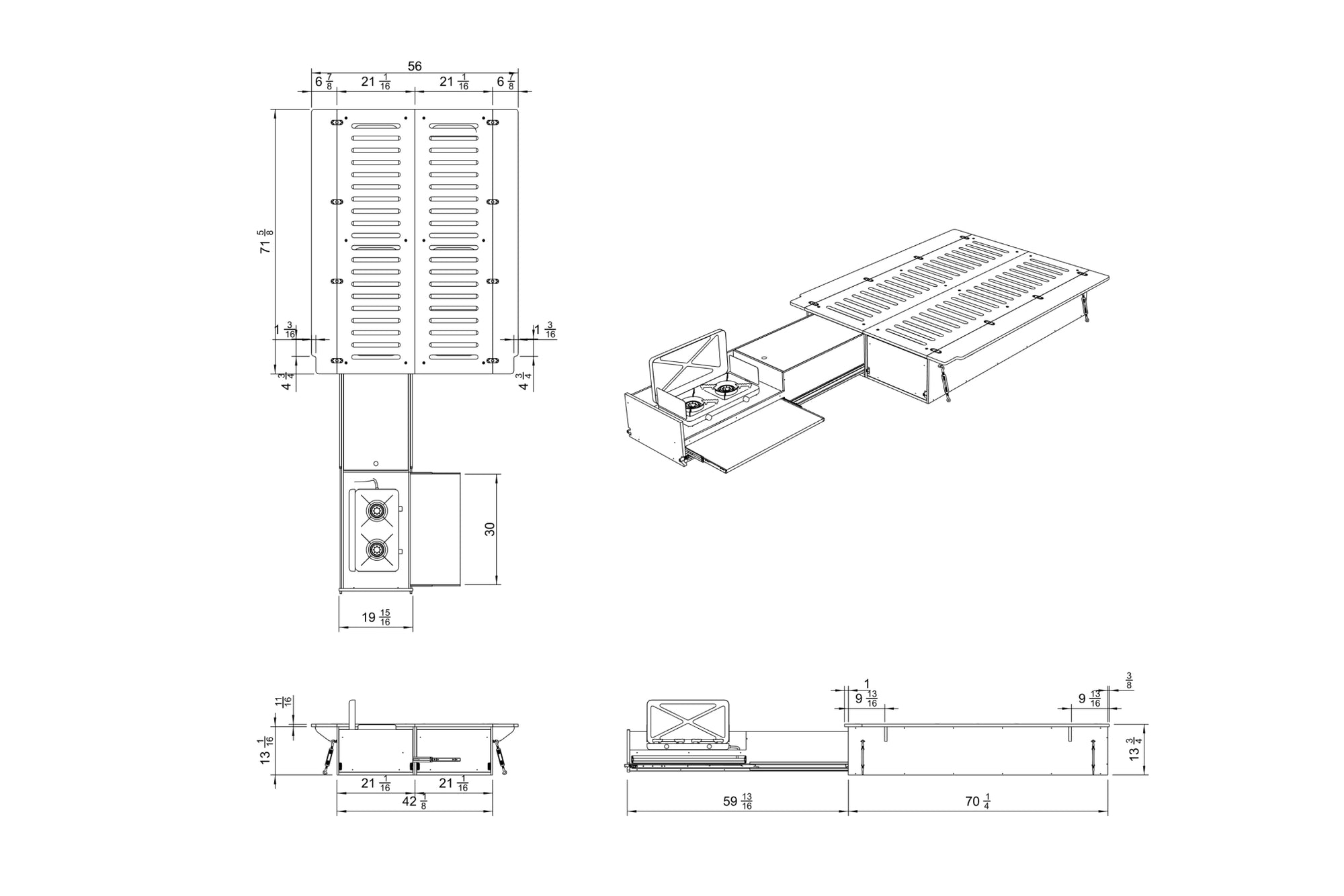

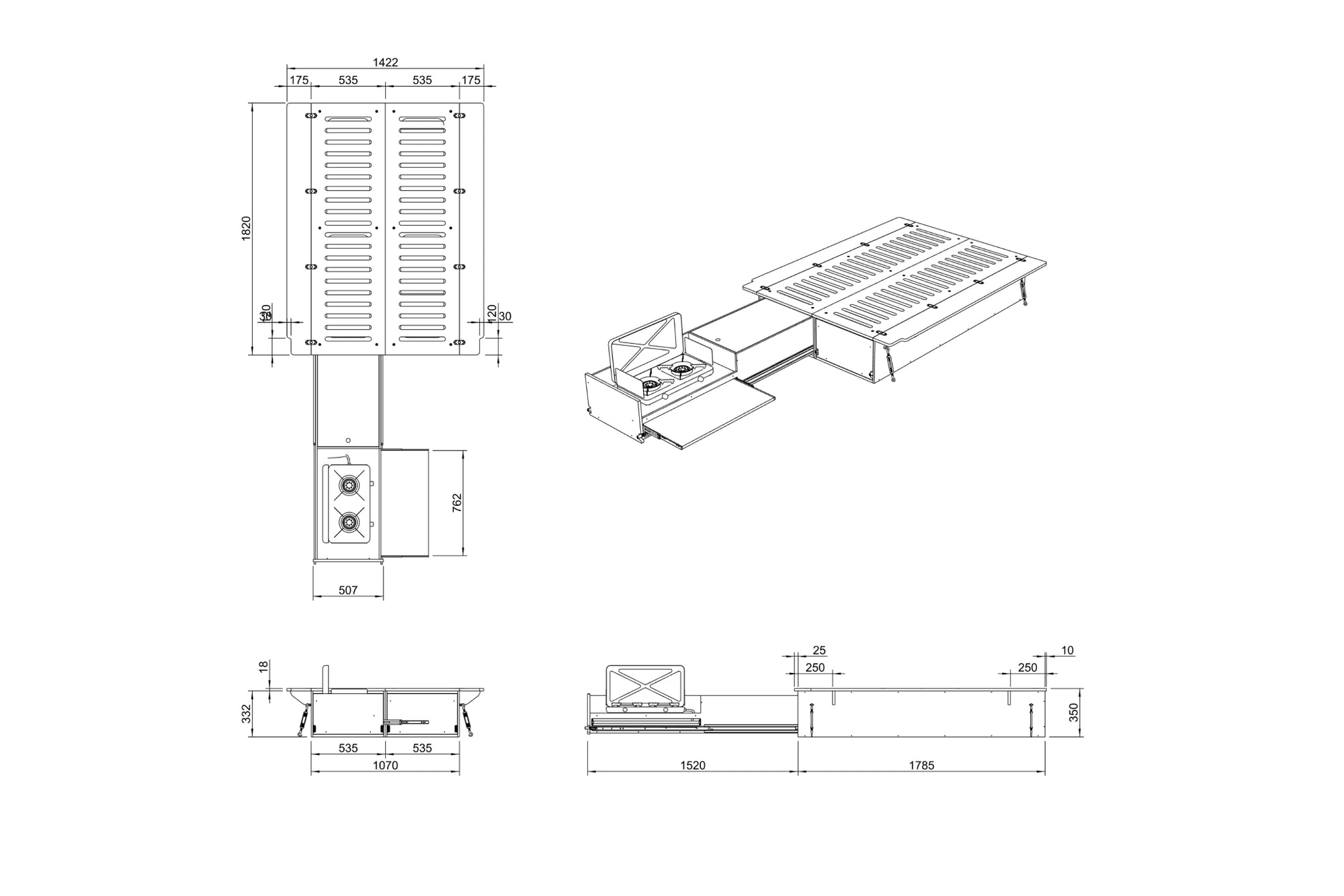

  • Dimensioned drawings
  • Overview of Hardware required
  • 48 pages in PDF in total
  • 3D model included for making modifications

Was benötigt wird:
  • 2.5 x 12mm (½”)  Birch Plywood sheets required
  • 4 x 18mm (¾”)  Birch Plywood or HPL Ply required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Zusätzliche Informationen:
  • All plans are in English and the units are in mm (metric)
  • Drawer runner extension = 1500mm (60”)
  • Plywood sheet size = 1220mm x 2440mm (4ft x 8ft)
  • CAD model is in STEP. format however I can export most required formats upon request

Vehicle Compatibility
This design has been developed around the Toyota Tacoma with a 6 ft bed. The overall dimensions are also suitable for many other midsize pickup trucks with similar bed sizes.

As bed dimensions can vary between manufacturers and model years, it is recommended that you carefully compare the dimensions provided in these plans with your vehicle before purchasing materials or beginning construction. Minor modifications may be required to achieve the best fit in vehicles other than the Toyota Tacoma.

Important

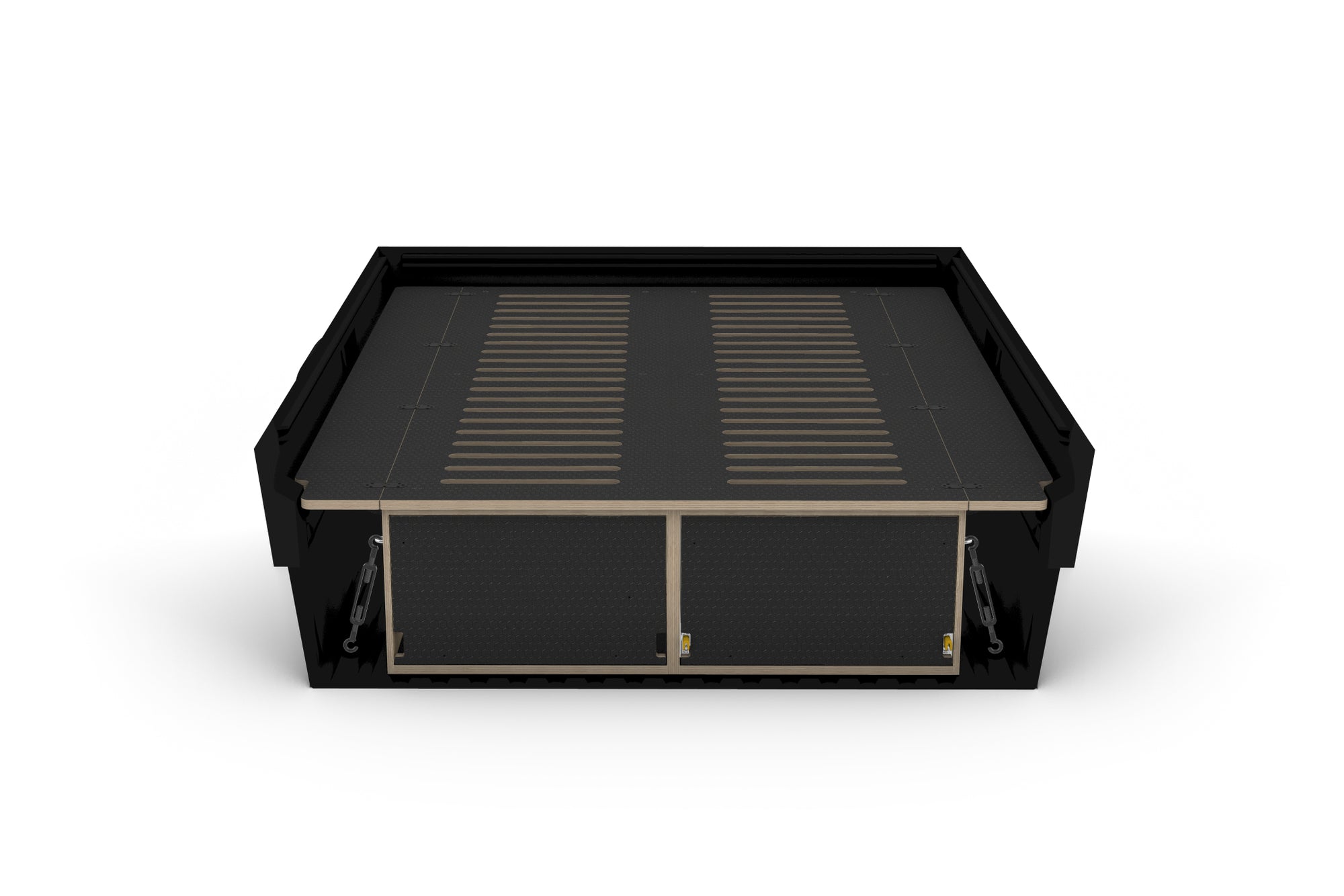

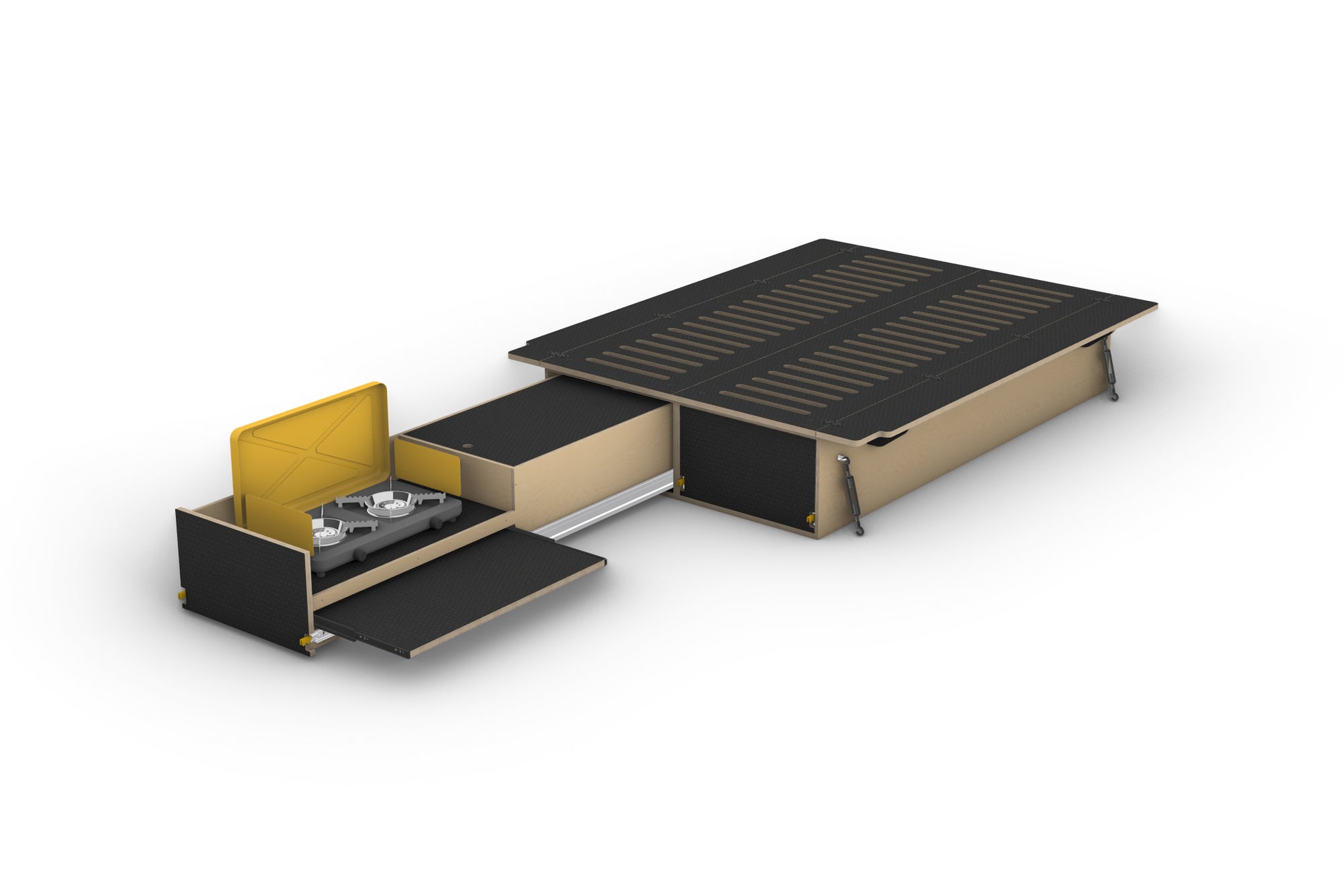

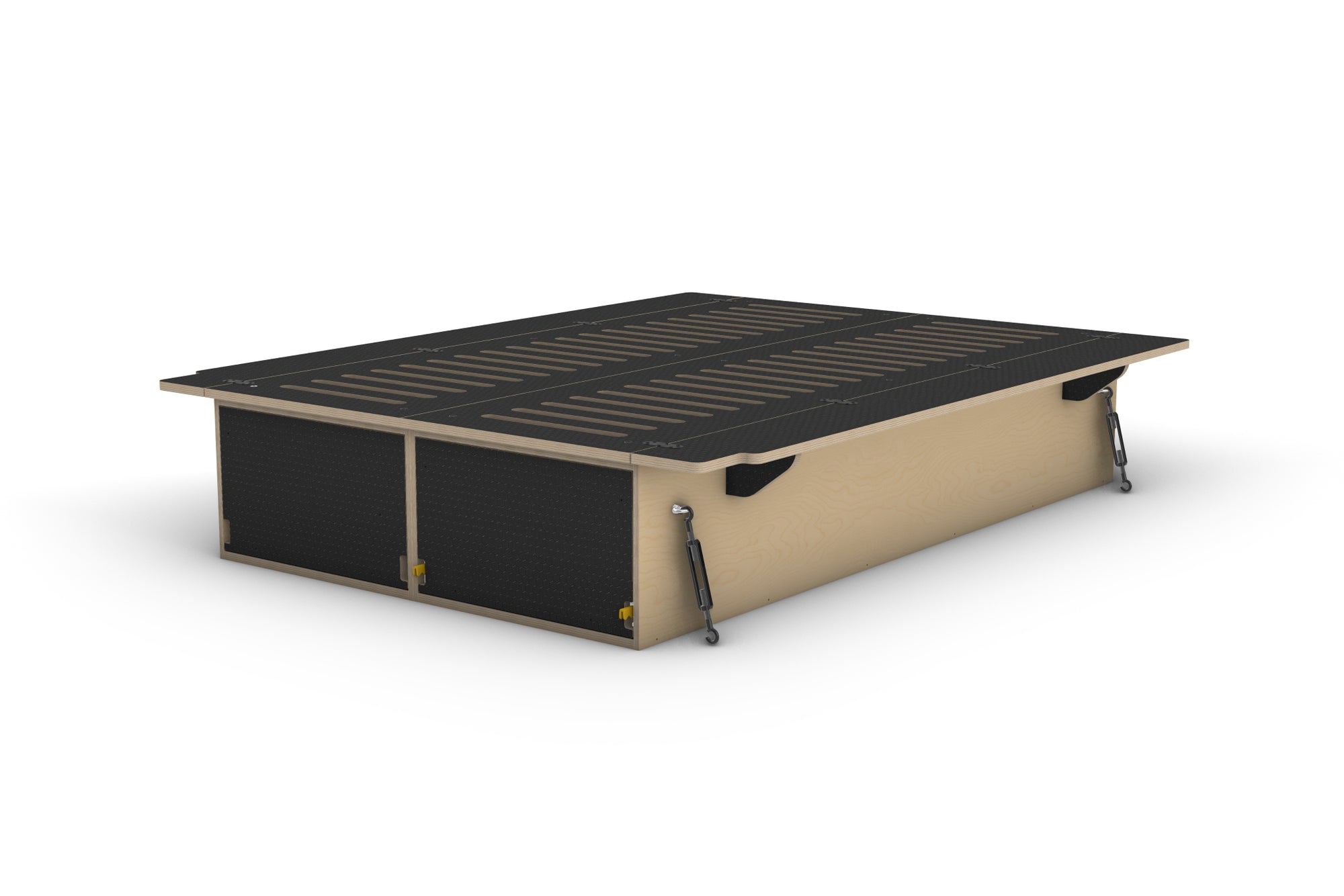

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only. Get in touch regarding commercial use.

Disclaimer
This product is an independently designed set of digital plans and is not affiliated with, endorsed by, sponsored by, or approved by Toyota Motor Corporation or any other vehicle manufacturer. Any vehicle makes and model names mentioned are used solely to identify compatibility and are the property of their respective trademark owners.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

Häufig gestellte Fragen

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

Ja, unser Team steht Ihnen während des gesamten Prozesses zur Verfügung, um Ihre Fragen zu beantworten und Sie zu unterstützen.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
