Folding Camper Couch with Storage (Right Side)

Normaler Preis $35.00 NZD
Versand wird beim Checkout berechnet

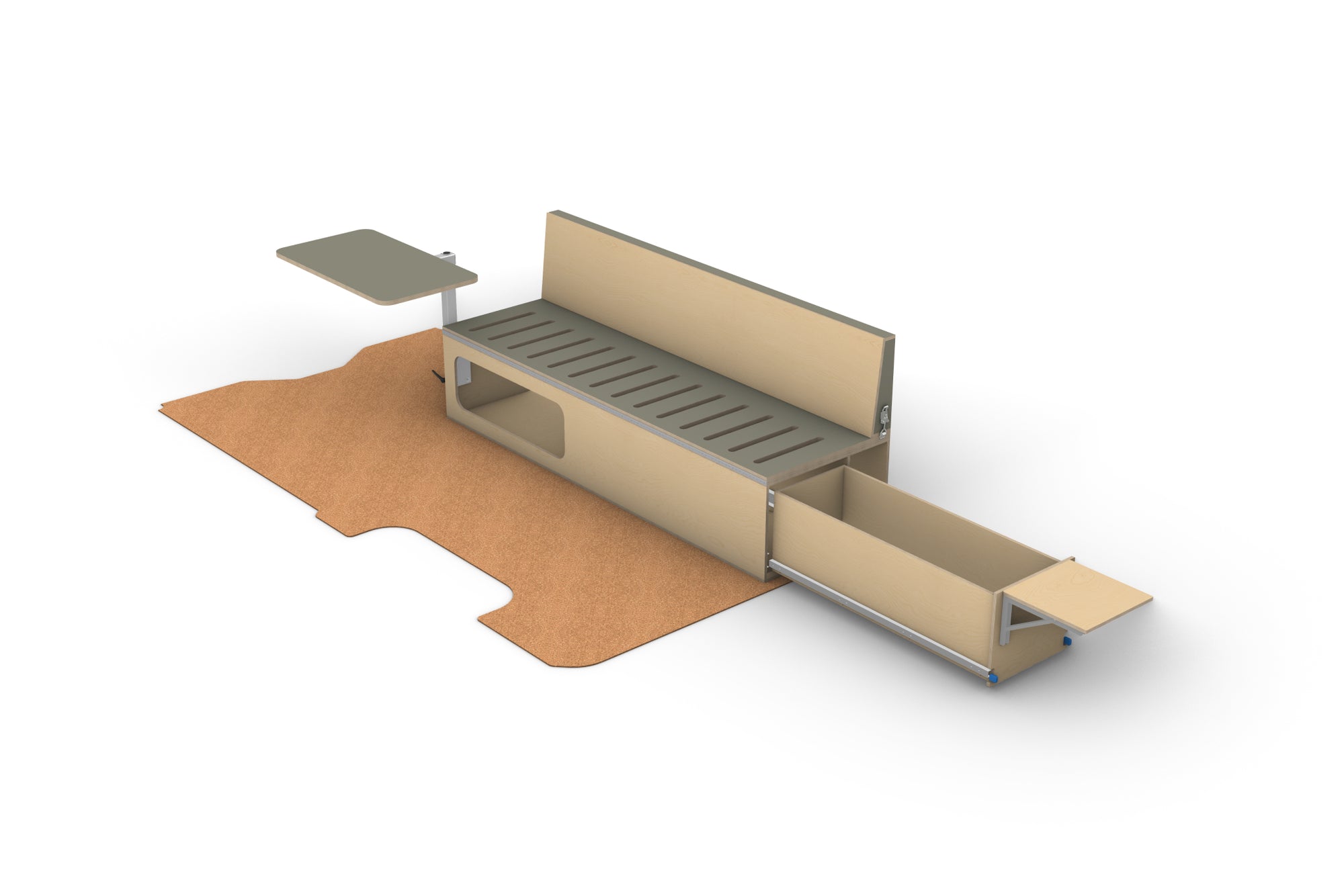

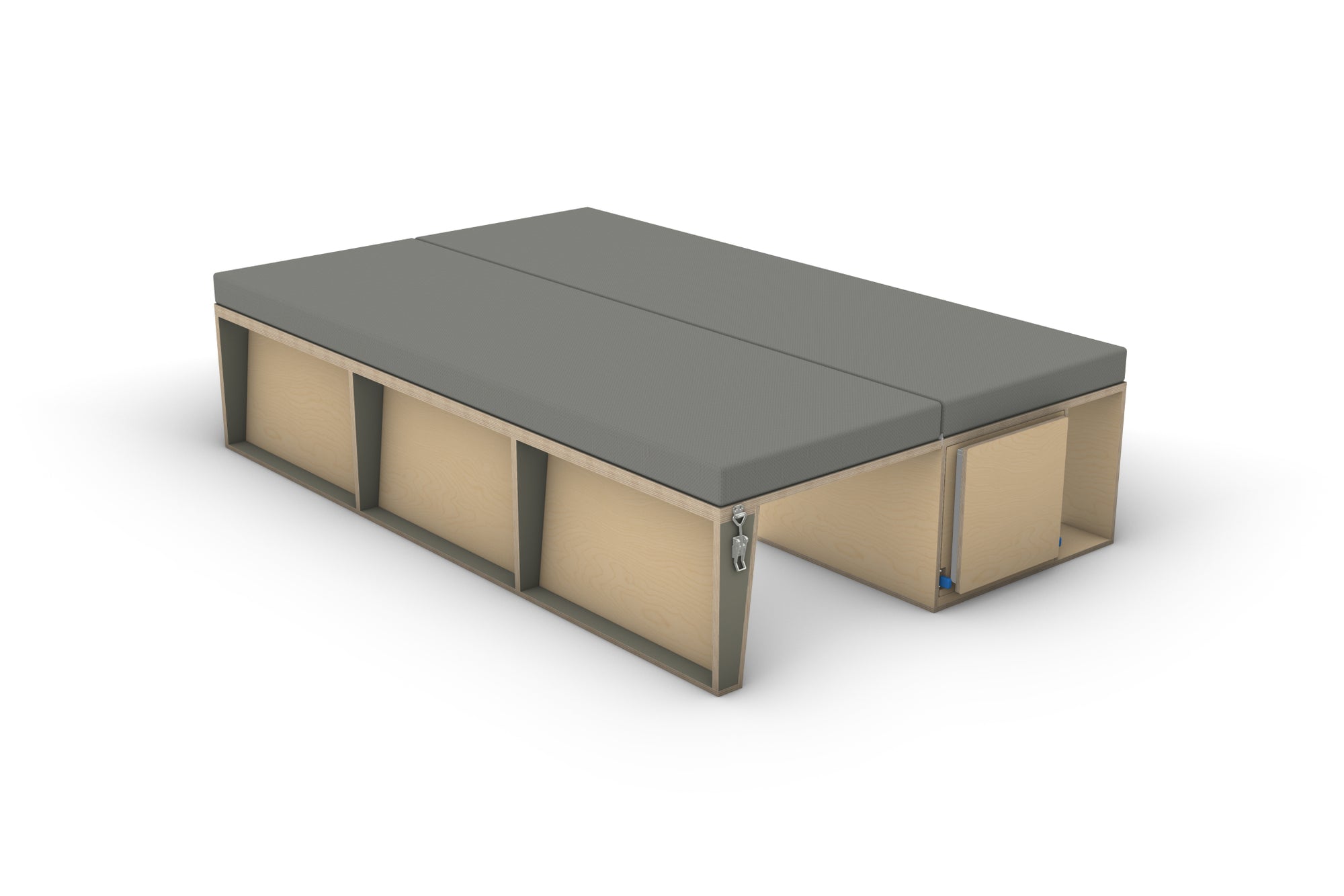

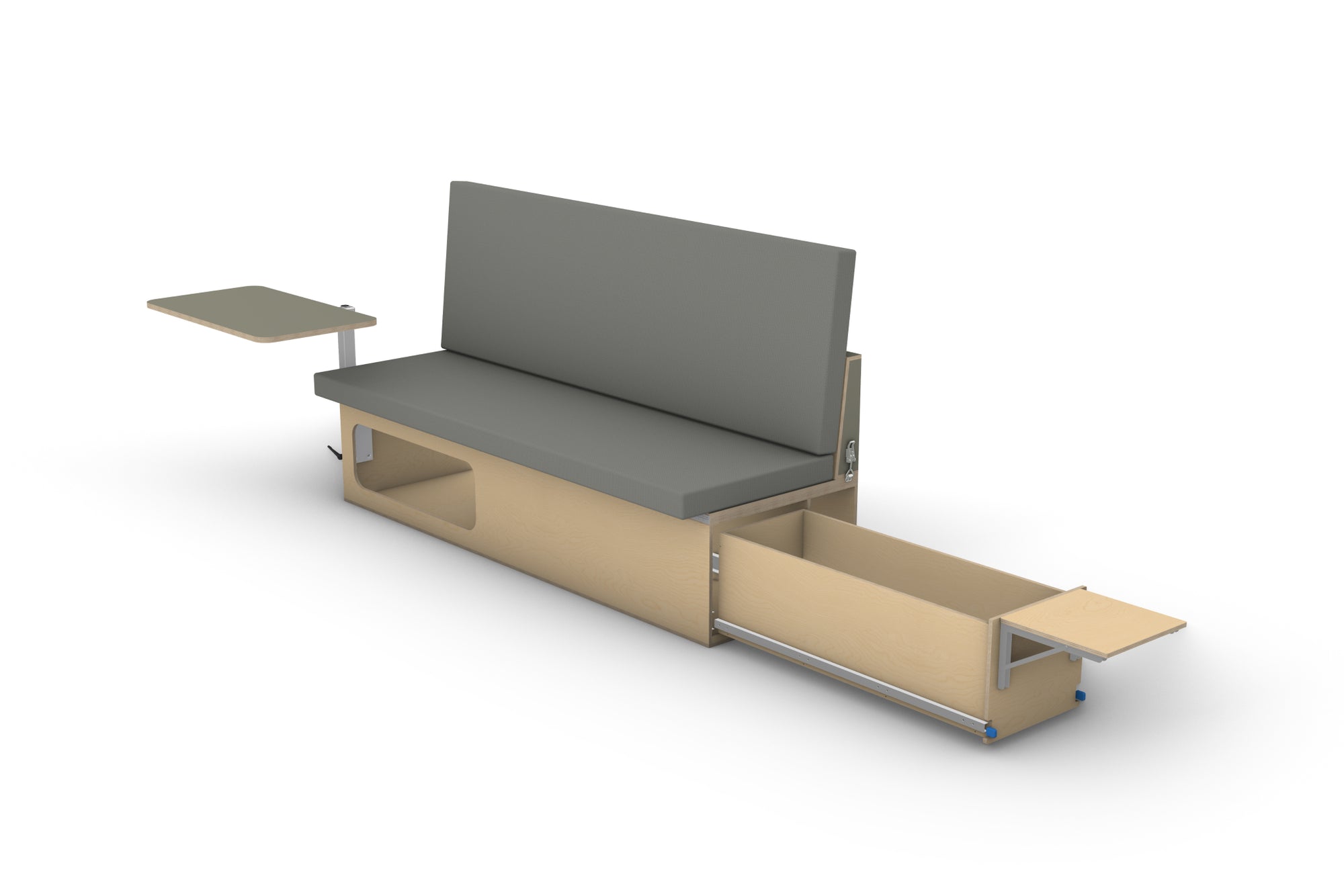

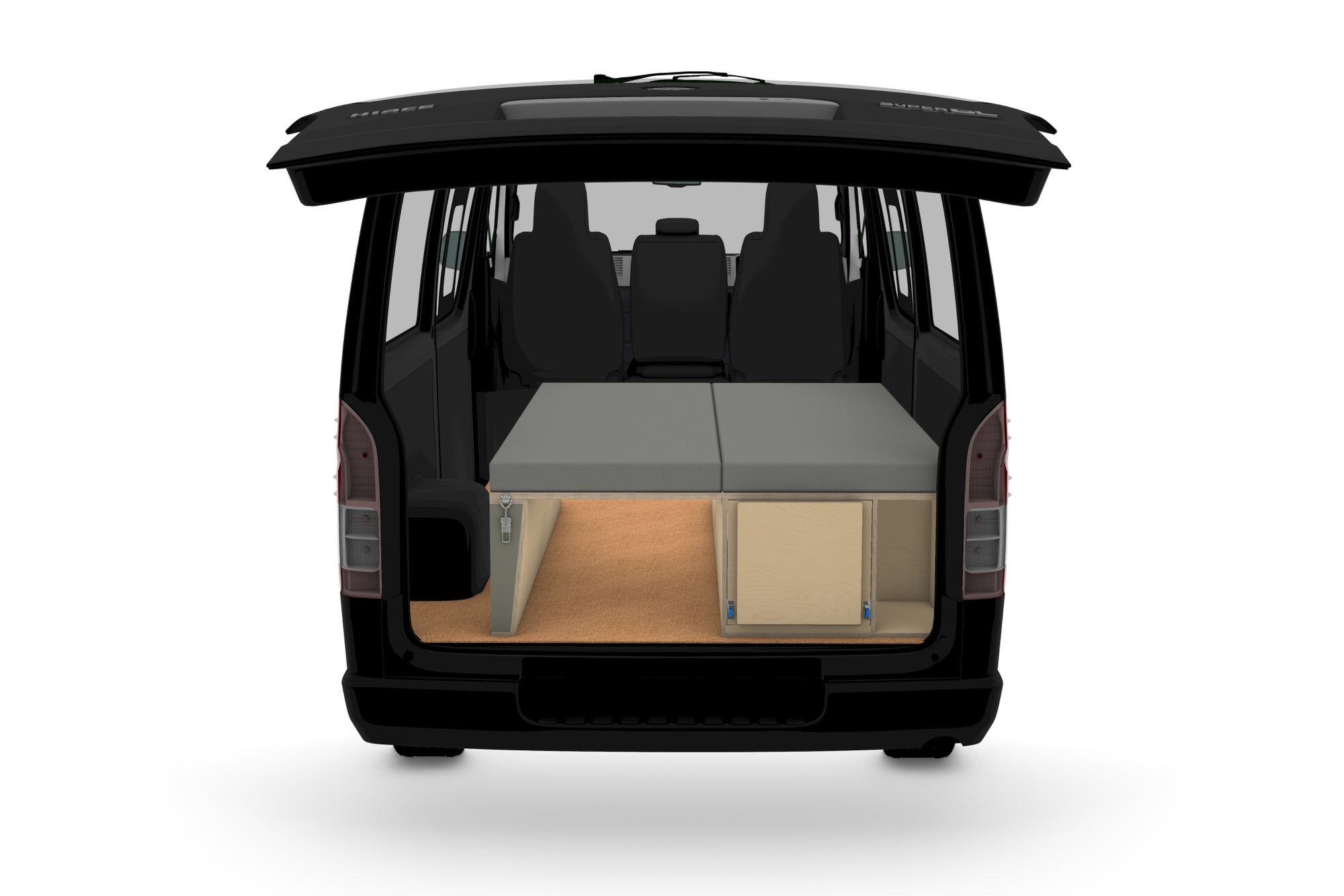

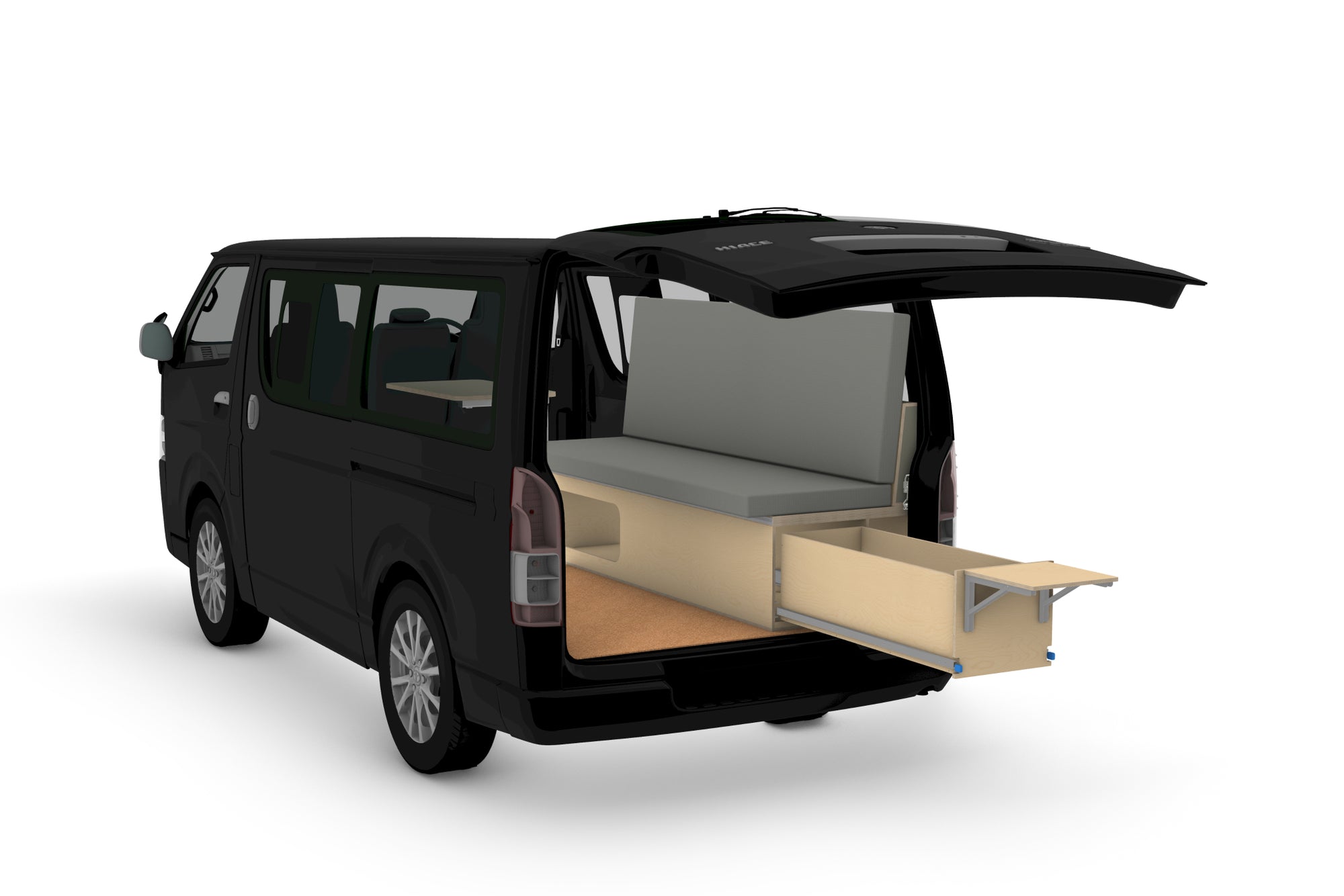

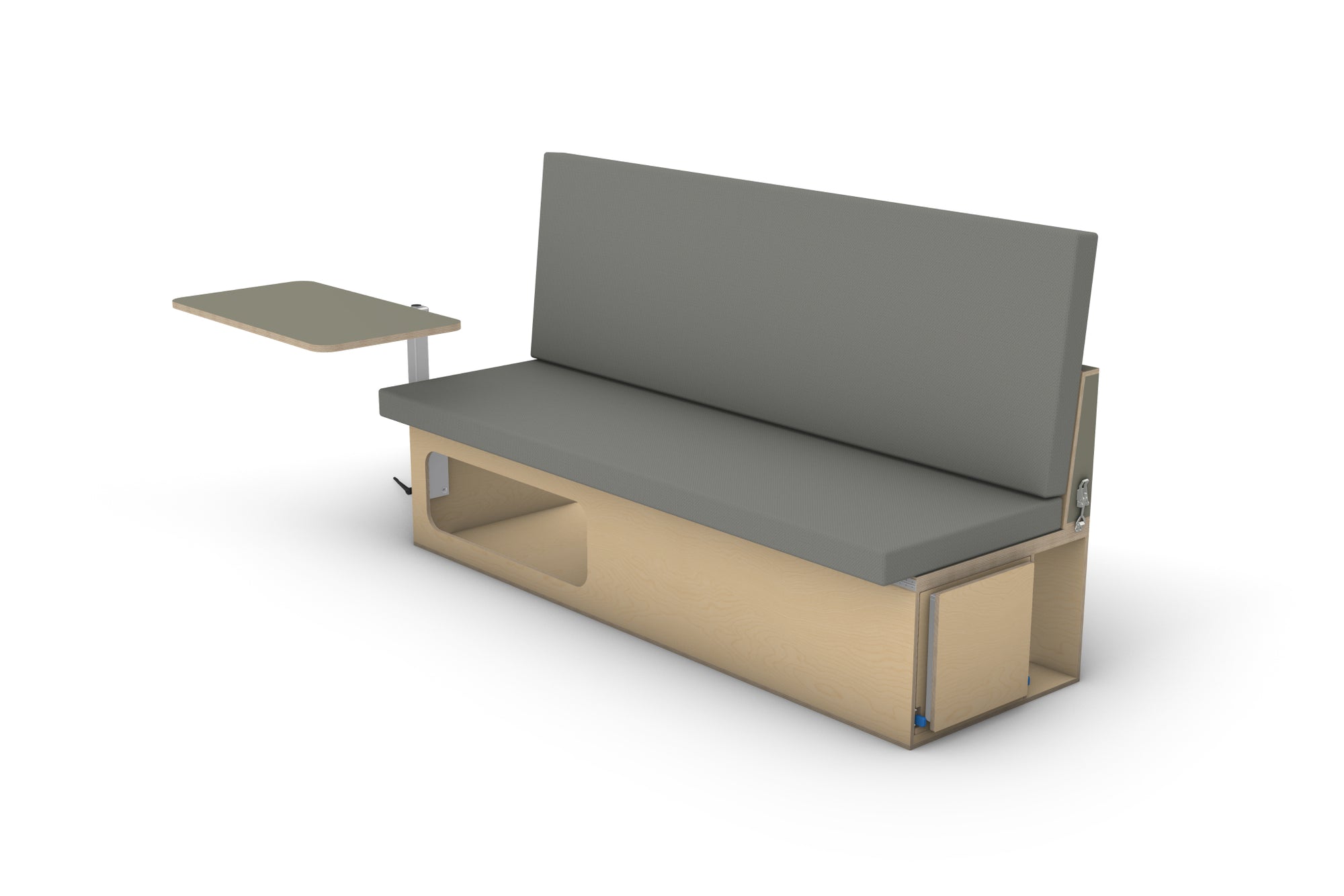

Sofa by day, bed by night — and a pull-out storage drawer built in. This folding camper couch plan is one of the most space-efficient builds available, fitting a wide range of van layouts with both CNC and manual cutting options.

  • Fähigkeitsstufe:
    • Intermediate
  • Seiten:

    26-Page PDF

Lieferumfang:
  • Clear and concise assembly drawings
  • Dimensioned parts for manual cutting
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 26 pages in PDF in total
  • CNC overview with labels

Was benötigt wird:
  • 2.5 sheets of 12mm Birch Plywood required
  • 1 sheet of 18mm Birch Plywood required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Zusätzliche Informationen:
  • All plans are in English and the units are in mm (metric)

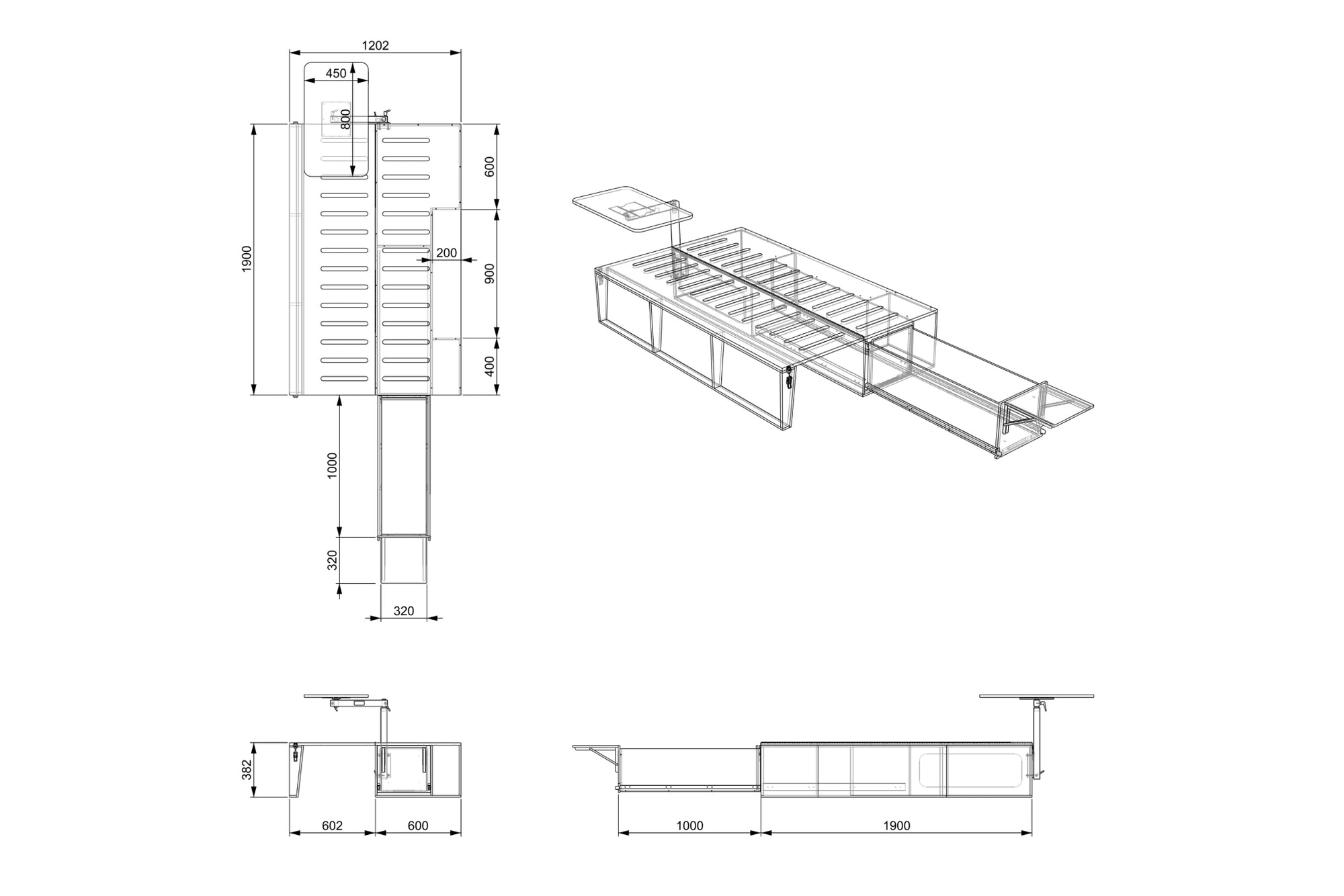

  • Overall footprint of unit (when open) = 1200mm wide x 1900mm long x 382mm high
  • Overall footprint of unit (when closed) = 600mm wide x 1900mm long x 382mm high

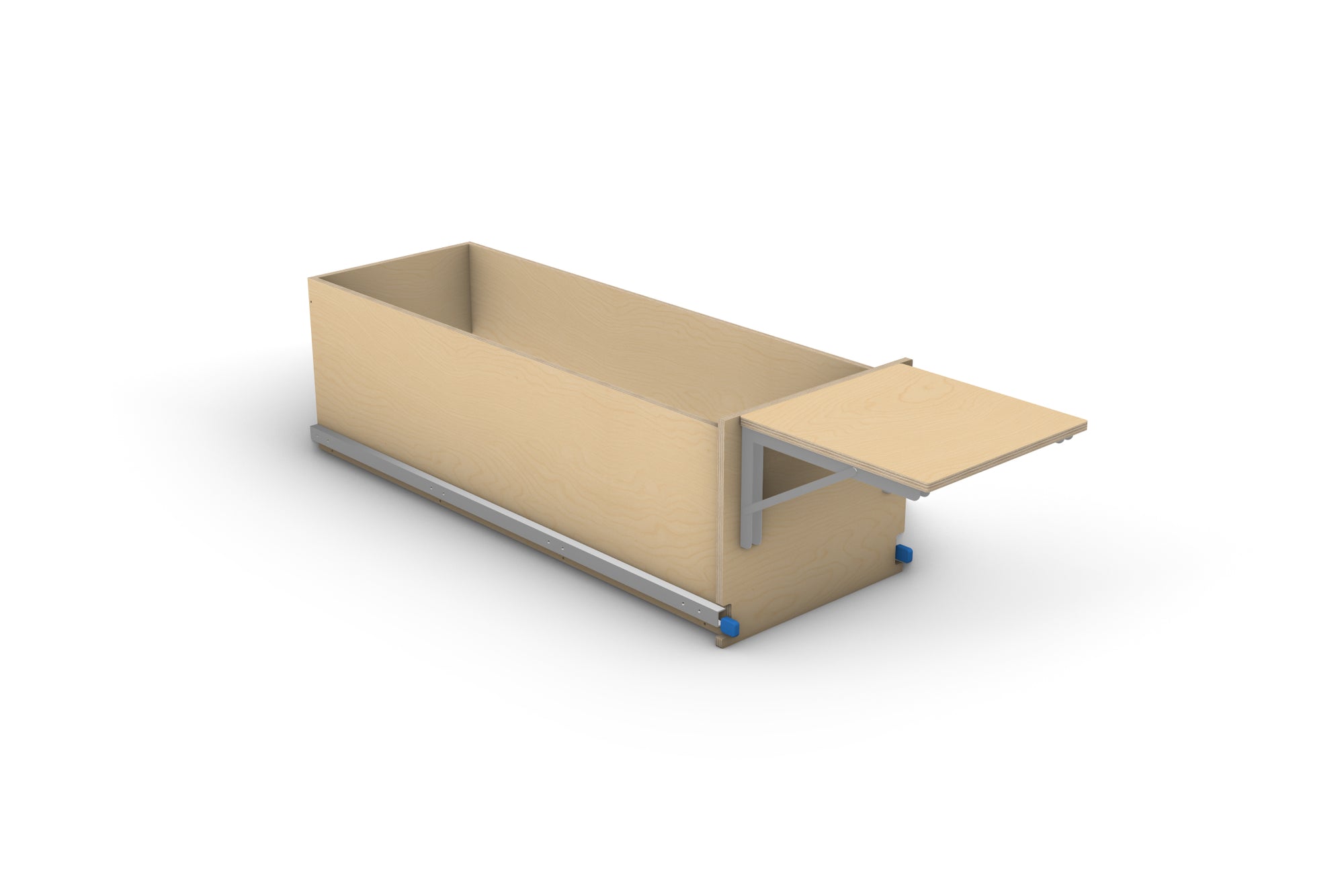

  • Drawer runner extension = 1000mm
  • Construction = 12mm & 18mm Birch Plywood
  • Plywood sheet size = 1220mm x 2440mm
  • It is recommended that the plywood is sanded and sealed before installation
  • Unit will need to be secured to van
  • CAD model is in STEP. format however I can export most required formats upon request
  • This van fit out is for intermediate builders.

Important:

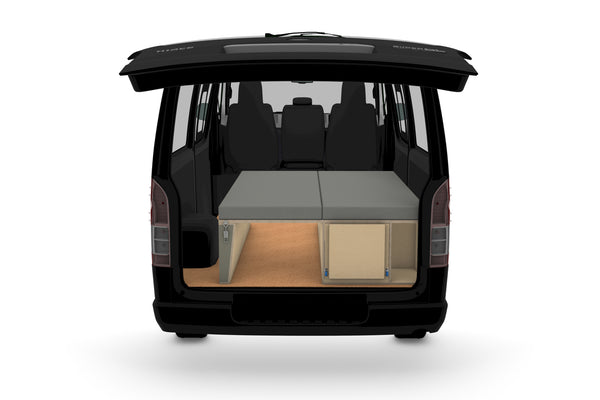

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

Häufig gestellte Fragen

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

Ja, unser Team steht Ihnen während des gesamten Prozesses zur Verfügung, um Ihre Fragen zu beantworten und Sie zu unterstützen.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
