Build Bundle: Couch/Bed, Kitchen and Wardrobe (LHD)

Normaler Preis $80.00 NZD
Versand wird beim Checkout berechnet

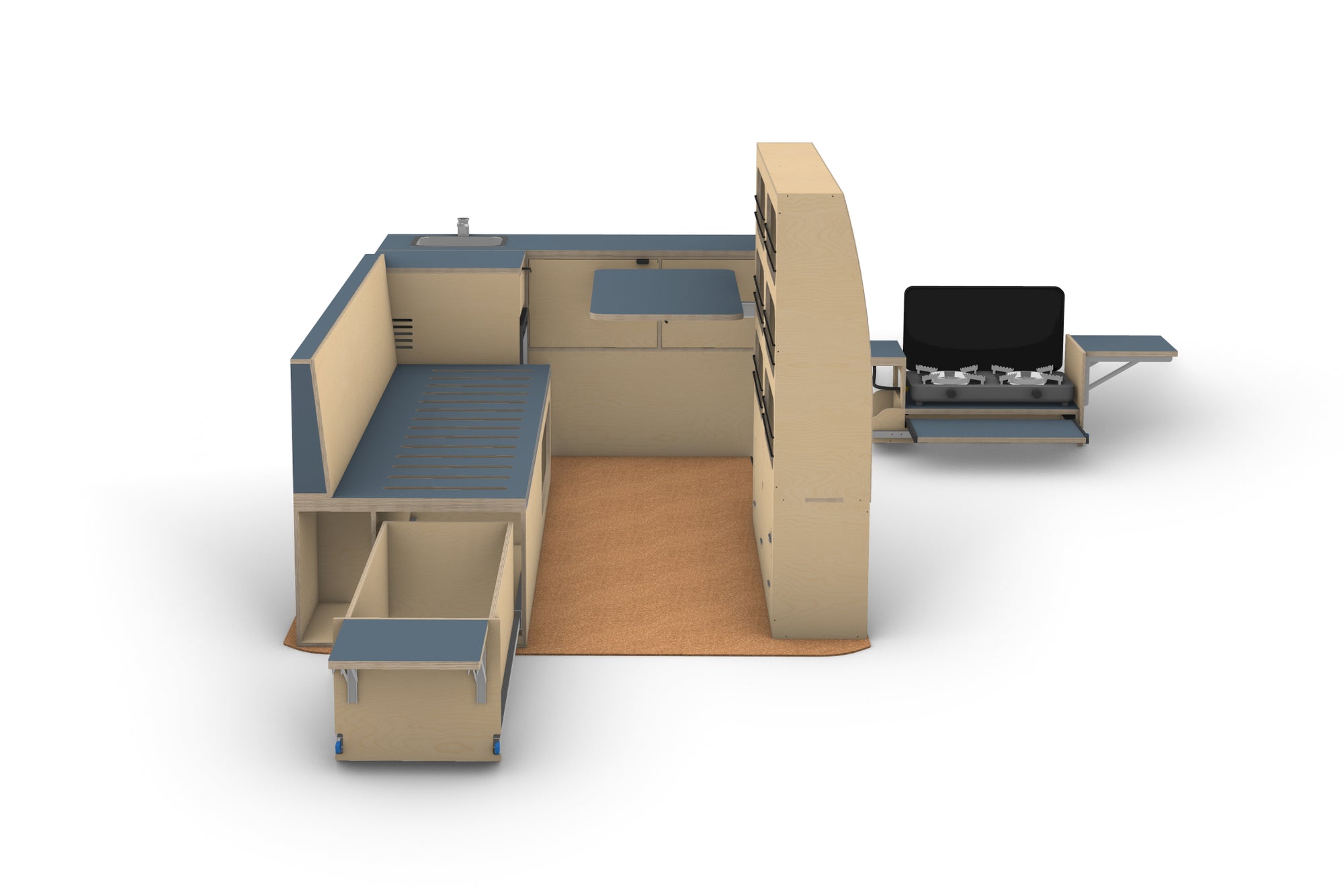

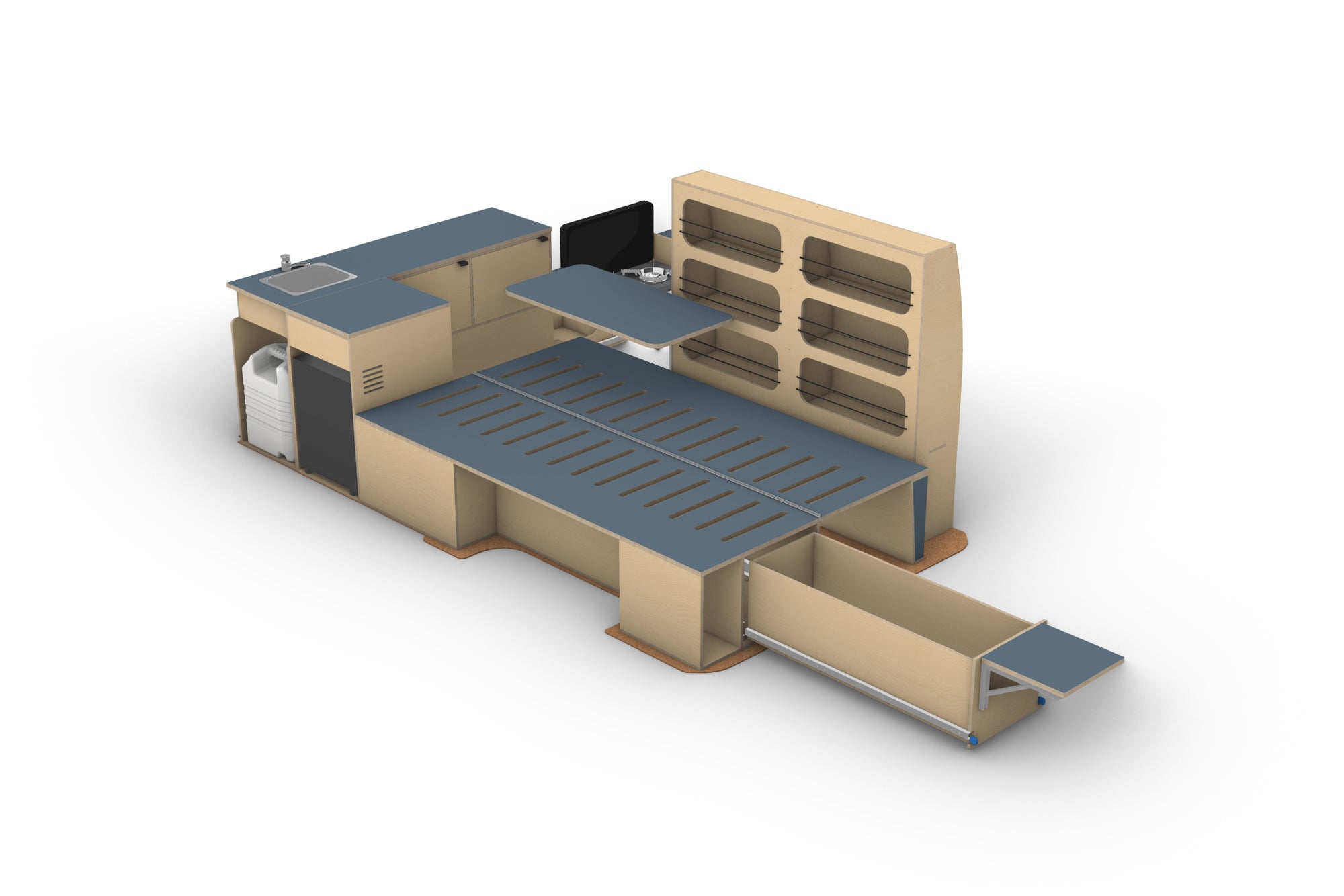

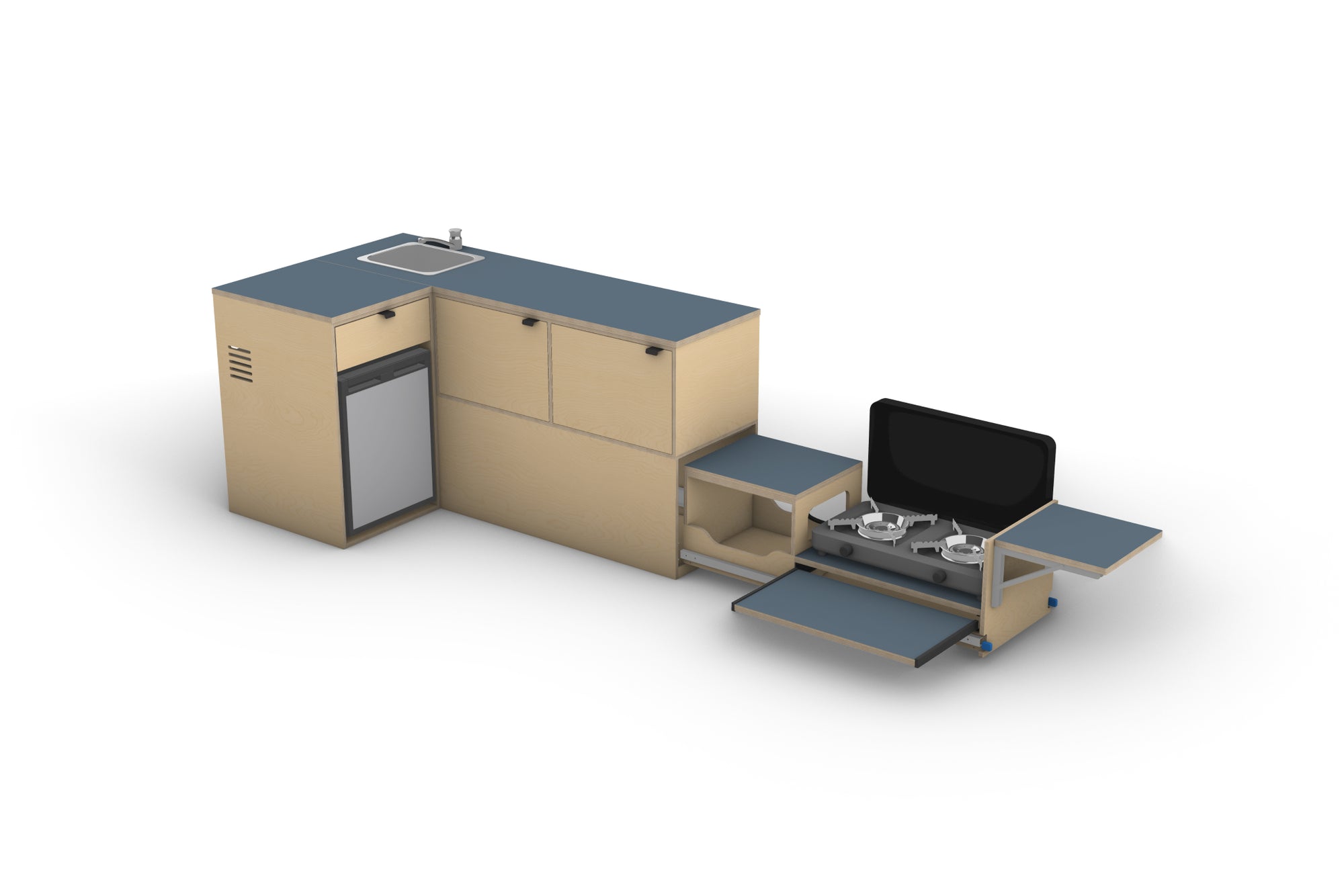

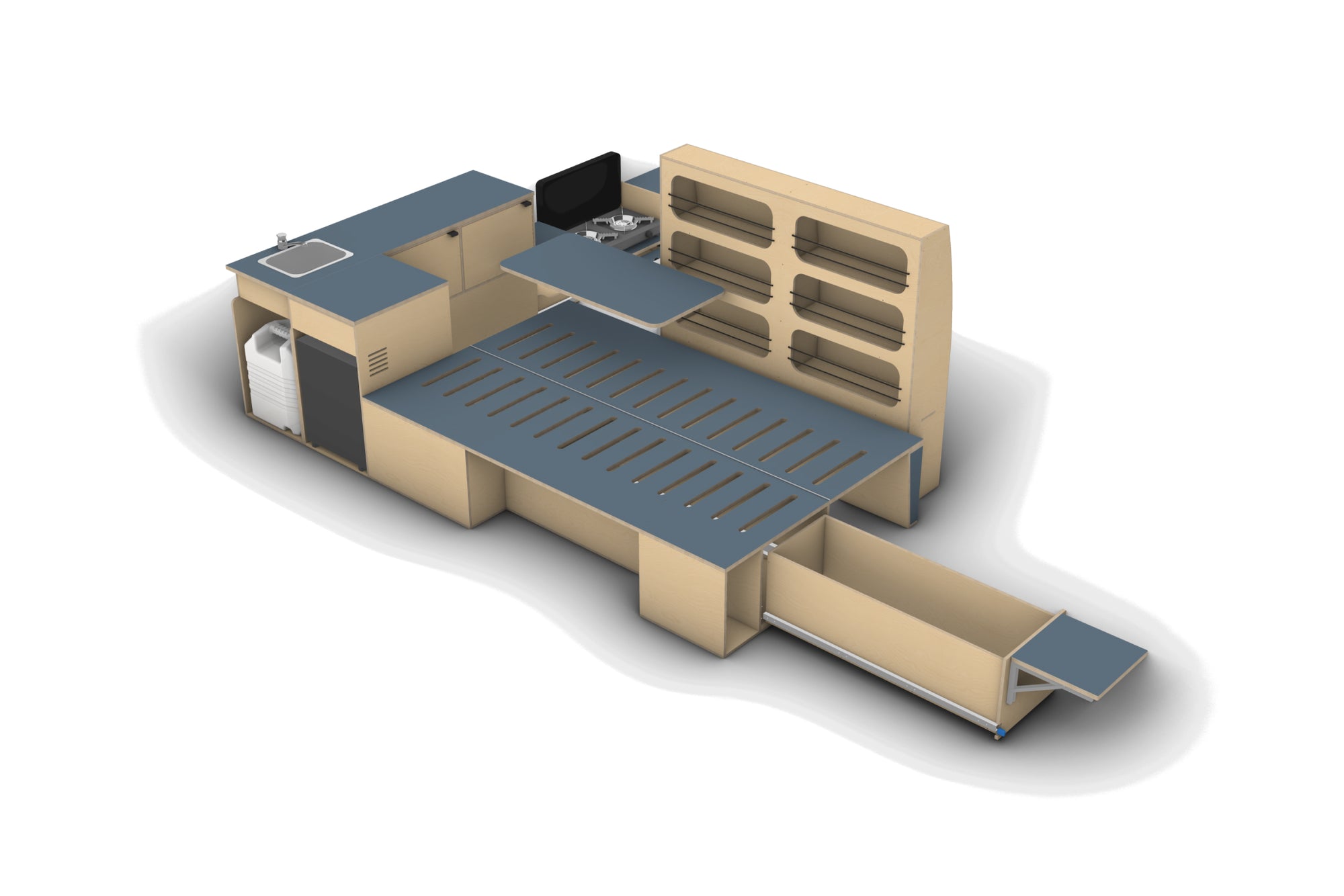

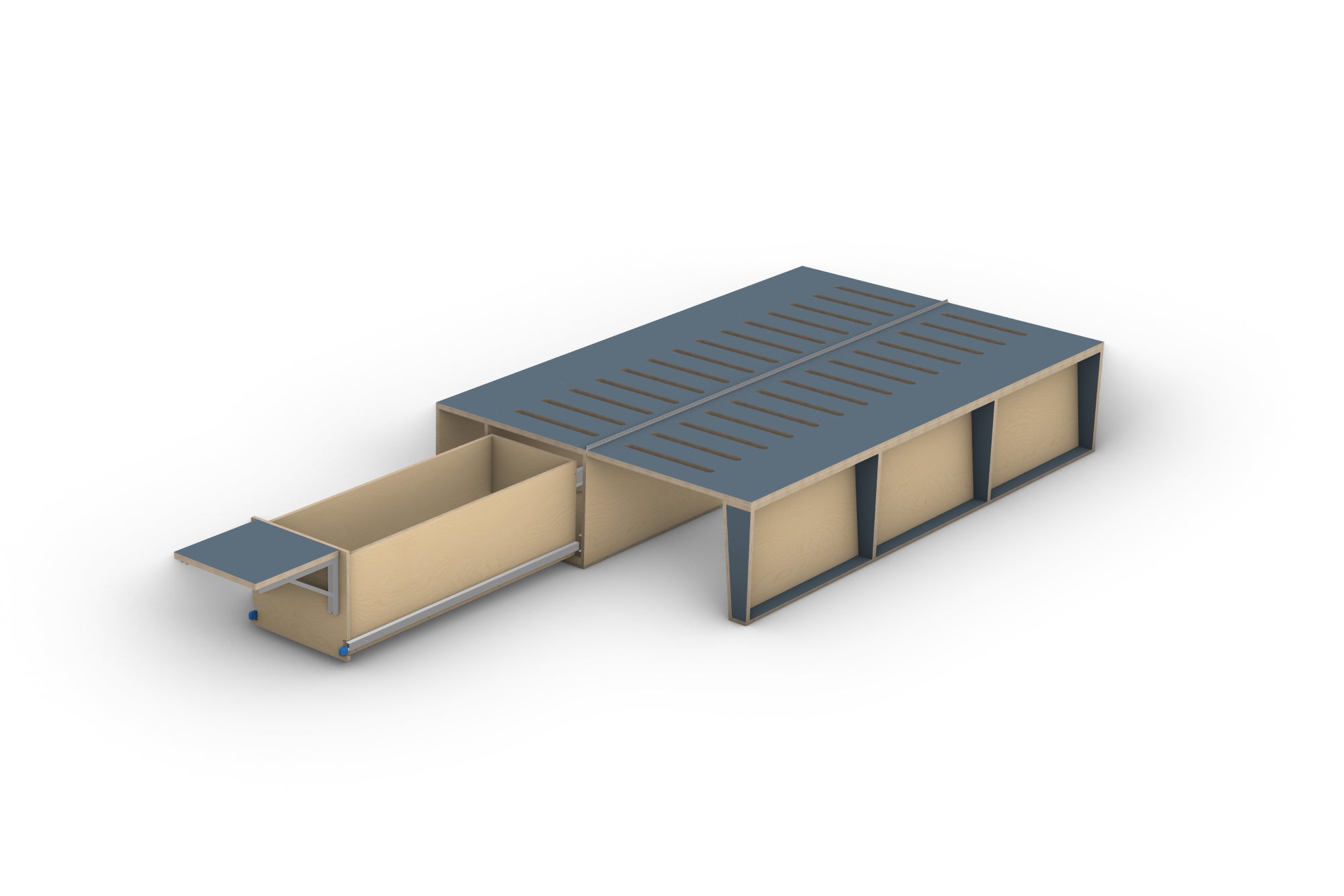

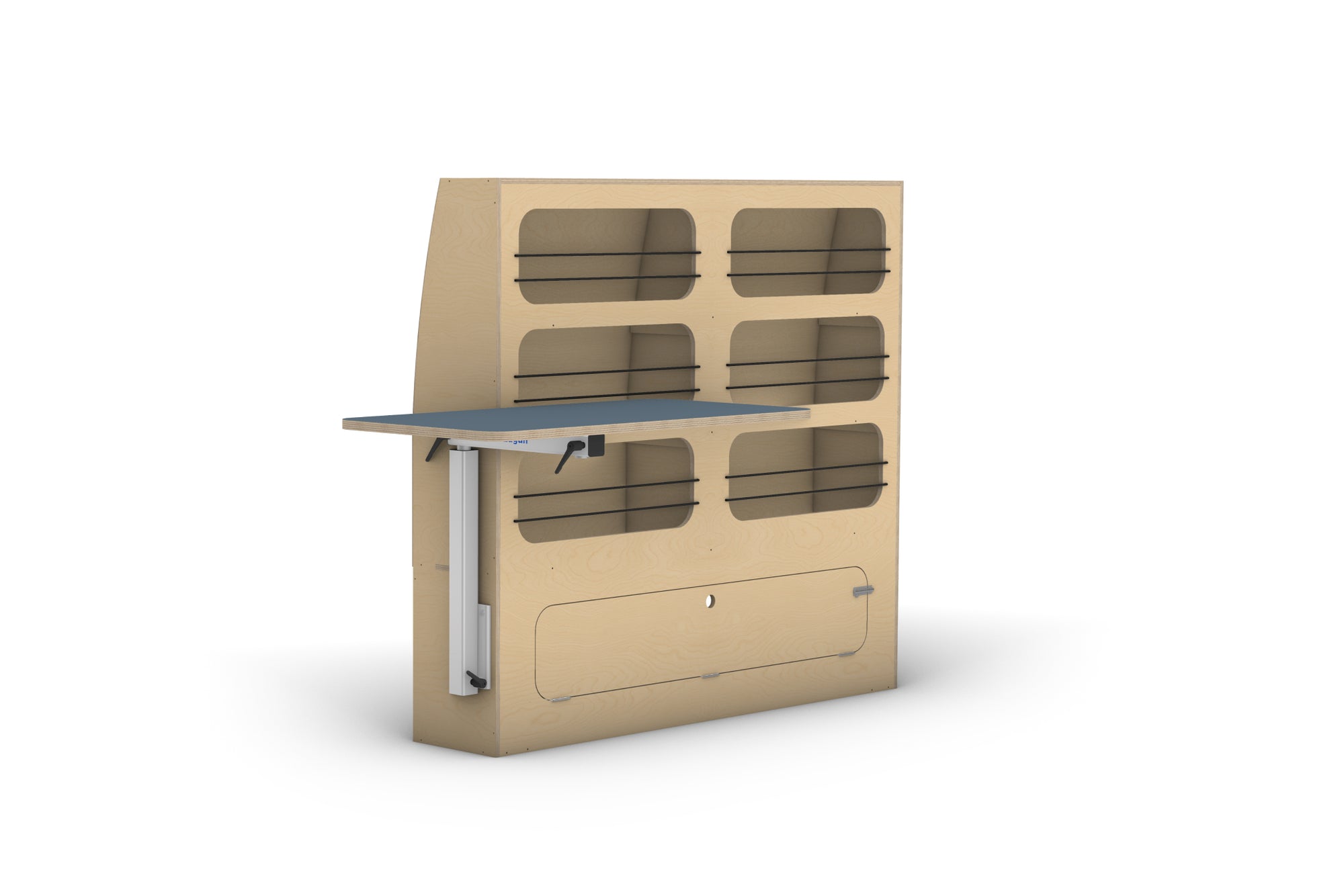

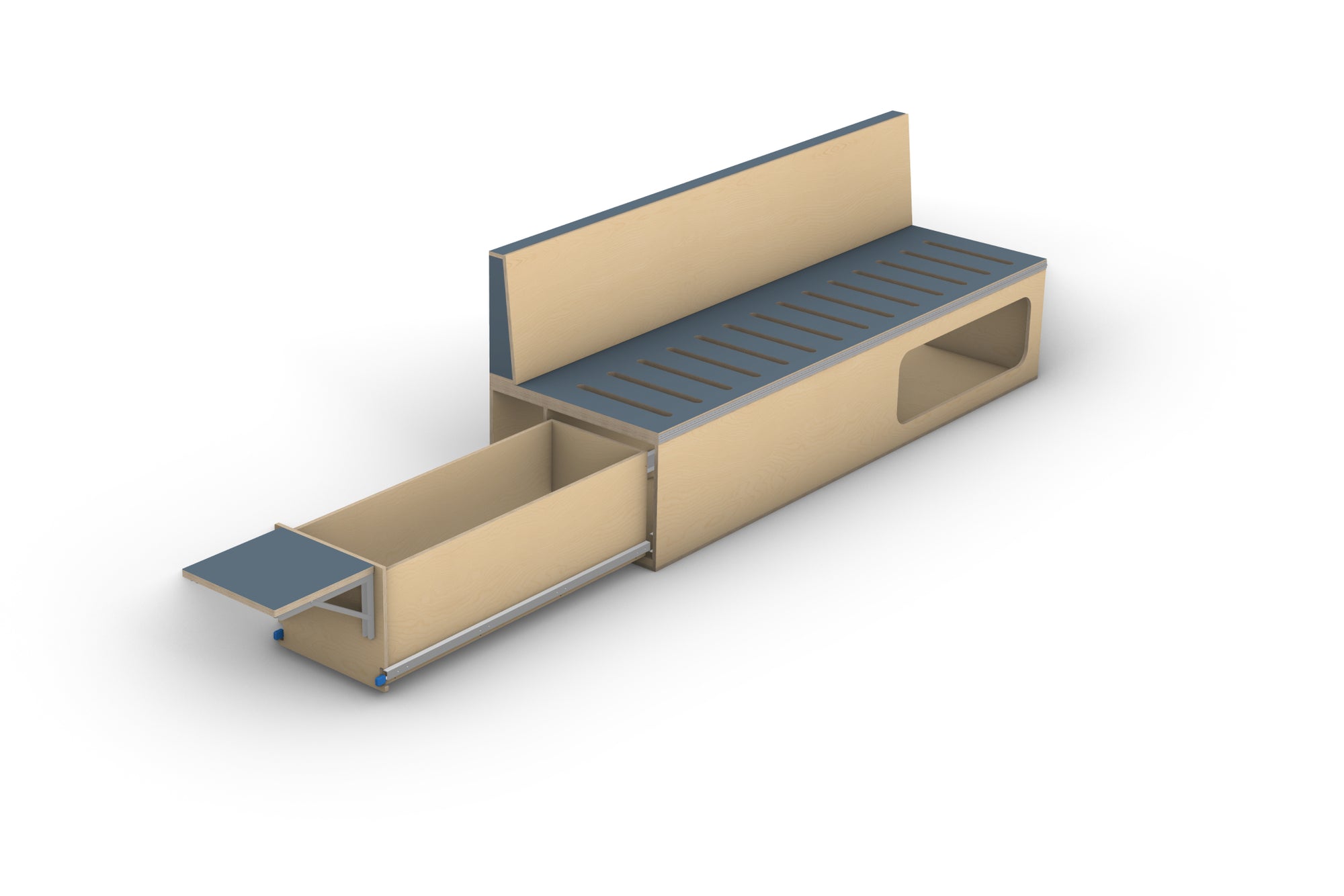

This comprehensive camper van build package combines a folding couch/bed system, full kitchen unit, and wardrobe storage into one cohesive design. The plans are delivered as detailed PDF guides with step-by-step instructions, clear diagrams, and complete cutlists, making them suitable for both CNC and manual builds. Designed to suit a wide range of van layouts, the folding couch easily converts into a bed and now features a large pull-out storage drawer, fold-up end table, and additional cubby storage. The kitchen unit includes a pull-out cooking drawer with integrated storage, a fold-up end table, space for two 23L jerry cans, and… Weiterlesen
  • Fähigkeitsstufe:
    • Intermediate
  • Einheiten:

    • Millimetres (mm)
  • Seiten:

    84-Page PDF

Lieferumfang:
  • Dimensioned parts for manual cutting

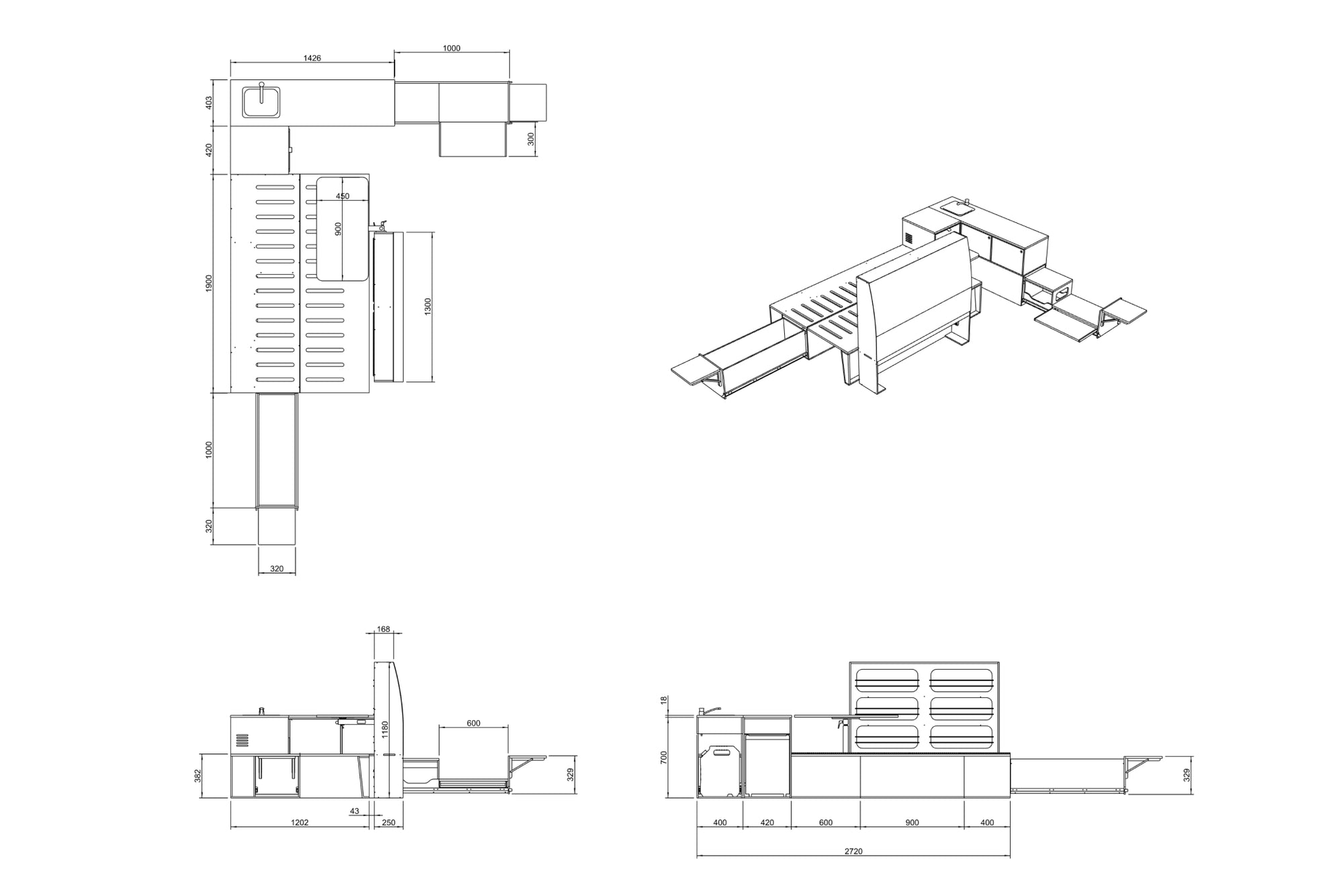

  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining
  • Detailed CNC overview
  • Dimensioned drawings
  • Overview of Hardware required
  • 84 pages in PDF in total
  • 3D model included for making modifications

Was benötigt wird:
  • 6 x 12mm Birch Plywood sheets
  • 2 x 18mm HPL Plywood sheets
  • 1 x 3mm Birch Plywood sheet
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Zusätzliche Informationen:
  • All plans are in English and the units are in mm (metric)
  • Refer to image on listing for overall dimensions
  • Mattress size = 1200W x 1900L
  • Drawer runner extension = 1000mm
  • Plywood sheet size = 1220mm x 2440mm
  • CAD model is in STEP. format however I can export most required formats upon request

If you need more information, I can share a basic version of the plans along with a hardware overview to help inform your decision.

IMPORTANT:
This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.
